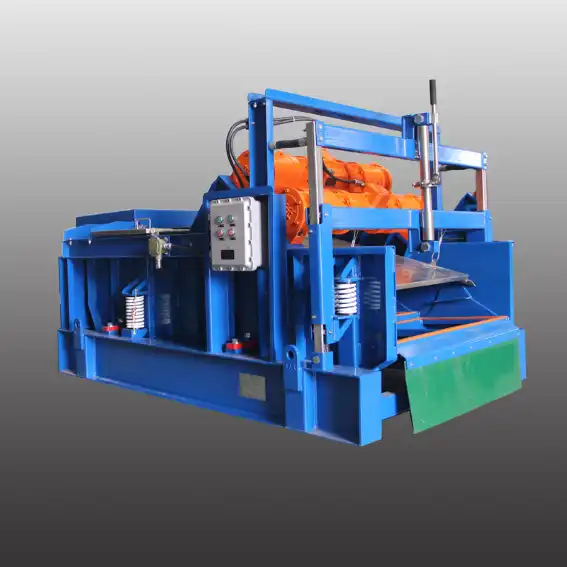

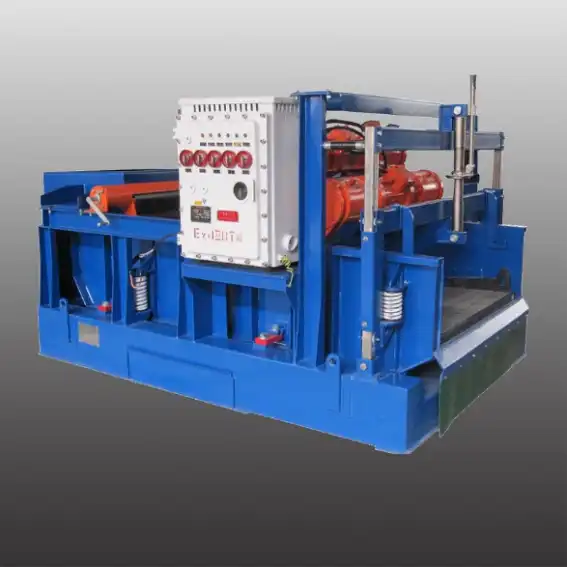

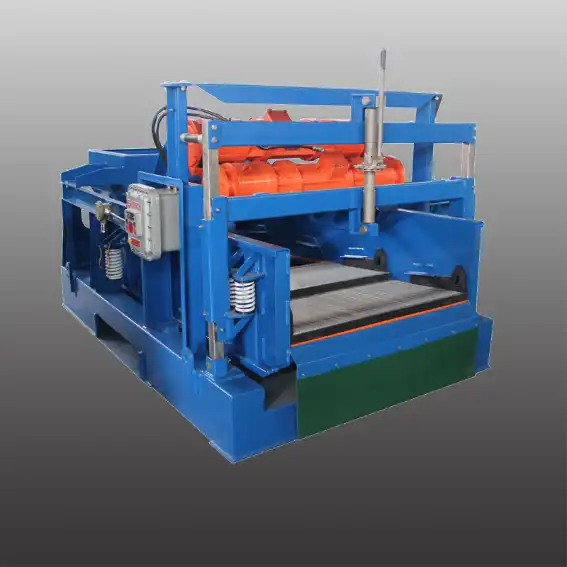

HS270 Shale Shaker
HS270 Shale Shaker - Shale shakers are the first-grade solid control equipment to separate drilling oil cuttings and recycled drilling fluid and important pieces of solids removal equipment.
In order to meet the requirements of different drilling conditions and drilling speeds, our company has specifically developed a series of HS270 Shale Shaker, including double-motions shale shaker, negative pressure shale shaker, linear shale shaker, and elliptical shale shaker.
Why Choose Us?
1. Localized service through a Global Network
2. Maintenance/Repair Service
3. 24x7x365 Technical Support
4. Design the drawings and BOM based on the technical agreement
5. Customized Solutions - Tailored integration for new builds or retrofits.
Product Details
1. Deck Angle Adjustable. Without shutting down the equipment, you can adjust the deck angel by turning the up and down the handle to adjust the front spring pedestal.
2. PTS screen with longer service life. PTS is pre-tensioned plane screen, which makes the drilling fluid come out evenly and can achieve good sieving effect. The use of high-strength and anticorrosion materials prolongs the service life of the screen.
3. Design of Slightly Cylindrical Hill Deck. Designing slightly cylindrical hill deck is helpful for screen tension and more close to the deck, which can improve the sieving effect.
4. Fully Sealed Structure. The fully sealed structure prevents solid particles from leaking into the tank.
5. Equipped with Splashing Protection (option). The shale shaker is equipped with a new type of shutter-type splashing protection. It has a splashing protection cloth rolling around the reel, which can be pulled out and hung in the former to cover the entire fluid splashing area. Shutter structure helps save space and has a good effect of splash protection.
Product Parameters
|
Model |
Motor power (kW) |
Frequency/Hz |
Screen area (m2) |
Amplitude(double） (mm) |
Shaking intensity |
Adjustable range |
Dimension (mm) |
Weight（kg） |
||
|
50Hz |
60Hz |
50Hz |
60Hz |
|||||||
|
HS200-3P-PTS |
2×2.2 |
24.3 |
29.2 |
3×0.585×1.165 |
5-6 |
4-4.8 |
6～7.2 g |
-1.5°～ +7° |
2450×2010×1700 |
1900 |
|
HS270-4P-PTS |
2×2.2 |
24.3 |
29.2 |
4×0.585×1.165 |
5-6 |
4-4.8 |
6～7.2 g |
-1.5°～ +7° |
2970×2010×1700 |
2000 |
|
HS270-4P-PTS-2 |
2×2.2 |
24.3 |
29.2 |
4×0.585×1.165 |
5-6 |
4-4.8 |
6～7.2 g |
-1.5°～ +7° |
2970×4466×1700 |
4000 |
|
HS270-4P-PTS-3 |
2×2.2 |
24.3 |
29.2 |
4×0.585×1.165 |
5-6 |
4-4.8 |
6～7.2 g |
-1.5°～ +7° |
2970×6715×1700 |
6000 |
|
HS270-4P-PTS-VFD |
2×2.2 |
24.3 |
29.2 |
4×0.585×1.165 |
5-6 |
4-4.8 |
5.6～7.2 g |
-1.5°～ +7° |
2970×2010×1700 |
2050 |
For more product information about HS270 Shale Shaker, please leave a message below.
