Kingpost Crane

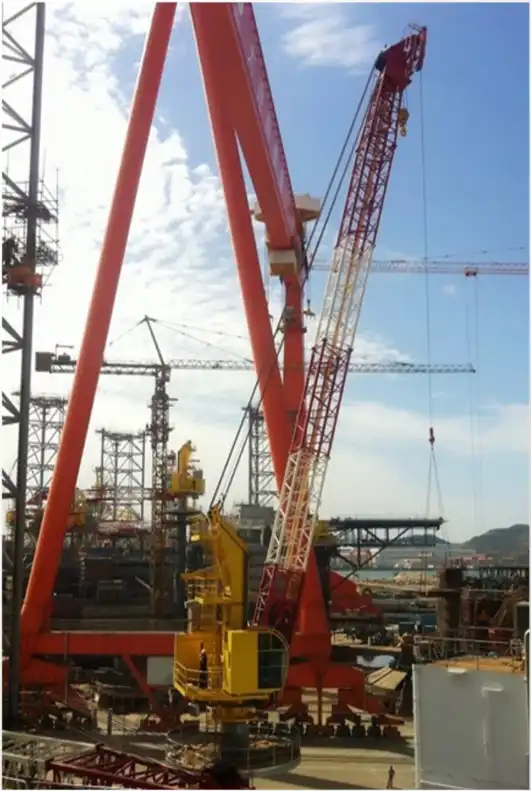

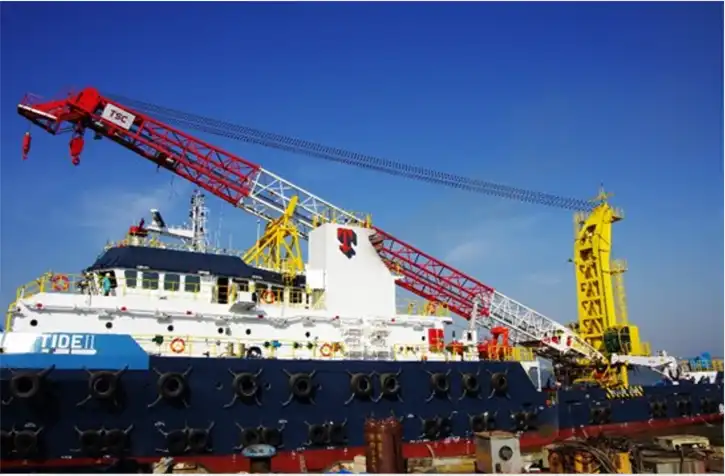

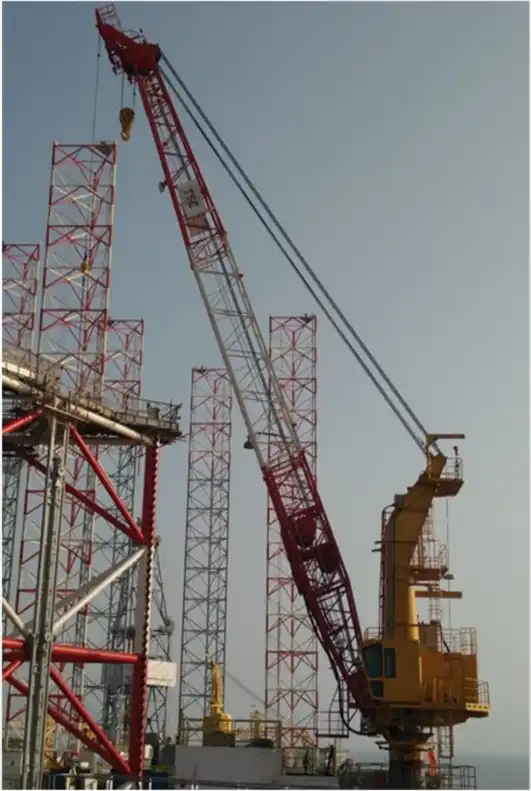

TSC designs and manufactures custom-engineered Kingpost cranes for the offshore industry, integrating advanced technology. These state-of-the-art, pedestal-mounted cranes feature rope luffing systems and lattice booms, ensuring safe, reliable operations. Ideal for fixed platforms, jack-ups, semi-submersibles, drilling vessels, and FPSOs, they offer tailored solutions for diverse offshore needs.

Consulting products

Download

Product Description

TSC develops and manufactures a series of high quality, tailor-made Kingpost cranes for the offshore industry adopting the latest technology. Safe and reliable state-of-the-art king post mounted offshore crane with rope luffing system and lattice boom. They are suitable for such as fixed platform, Jack-up & semi-submersible platform, drilling vessel and FPSO.

product-725-476

Why Choose Us?

TSC develops and manufactures a great range of Kingpost cranes, Slew-bearing cranes, and other types of hoisting equipment. Each has its own typical use and specification. We make tailor-made products, for every hoist requirement on a vessel, or rig, we can provide you with the best suitable cranes.

Classification Societies: CCS、DNV、ABS、BV、LR

Product Parameters

Model	Model 162	Model 198 - 200	Model 240-200	Model 240-250
Main Hook Capacity	50 MT	70 MT	80 MT	100 MT
Boom Length	20~40 m	30~50 m	30~55 m	40~50 m
Auxiliary Hook Capacity	Maximum 11 MT	Maximum 15 MT	Maximum 15 MT	Maximum 15 MT
Design Life	25 years	25 years	25 years	25 years
Kingpost Dimension	54” × 1.5” Wall (1,372 mm ×38 mm)	66” × 2” Wall Thickness (1,676 mm ×50 mm)	80” × 2” Wall (2,032 mm ×50 mm)	80” × 2.5” Wall (2,032 mm ×65 mm)
Typical Application	Fixed Platform	Fixed Platform ,Jack-up& Floaters	Fixed Platform ,Jack-up& Floaters	Fixed Platform ,Jack-up& Floaters
Performance Quantity	20 sets	22sets	11sets	5set

Product Details

1. API Type "E" Kingpost Design

2. Products mount on top of a post welded to the rig structure. Bearing failure will not result in a product becoming dislodged from its foundation

3. Value engineered structures offer increased rigidity at lower weight

4. Small stern radius, minimal deck area occupation

5. Dedicated hydraulic pump circuit for each function ensures safe and reliable simultaneous multifunction operation

6. Safe & Reliable electric / hydraulic controls offer optimum hydraulic system performance •Available emergency crane operating system allows full function crane operation in the event of prime mover or hydraulic pump failure

7. Hook parking device, effectively preventing hook overtopping

8. TSC integrated electrical control system, integrating load management and safety alarm systems •Modular design with standardized components, short delivery cycle

9. API-2C certified product

10 .Periodic recording of operational data

product-531-791

Quality Control

1. Complete ISO quality system

2. DNV welding plant

3. BV plant

4. Classification Society Certification-BV, DNV, ABS, CCS

Installation

1. Customer requirements analysis

2. Factory assembly

3. Factory acceptance test

4. Product Delivery

5. On-board installation

For more product information about Kingpost Crane, please leave a message below.
