Raw Water Tower Jacking System

Zhengzhou TSC provides various specifications of raw water tower jacking systems and is currently the company with the largest number of complete sets of the products in China. In addition to the existing models, we can also provide deep customization according to customer needs.

Why Choose Us?

1. Utilizes advanced design concepts and processing technologies in the current gear industry.

2.  TSC product equipped with failsafe brakes and locking rack.

3.  Jacking unit features higher safety, reliability and durability.

4.  Global Certification-ABS, CCS-approved with real-world validation.

5.  Customized Solutions - Tailored integration for new builds or retrofits.

6.  TSC-Zhengzhou designs and manufactures various products such as Jacking System, Fixation System, raw water tower jacking system, skidding system, leg material , main chord and other heavy gear products more than 20 years.

7. TSC-Zhengzhou is Zhengzhou Offshore Petroleum Equipment Engineering and Technology Center (2013), Henan Offshore Platform jacking System Equipment Engineering and Technology Center (2018), a participant in the National Standard for Gear Accuracy, and a specialized company engaged in the research and development, production, sales, and engineering services of offshore jack-up platform transmission products.

8.  TSC-Zhengzhou has a sound quality management system with ISO certification and certifications from major classification societies.

Product Details

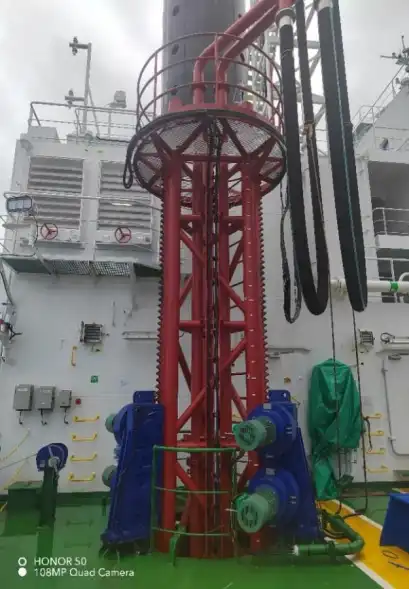

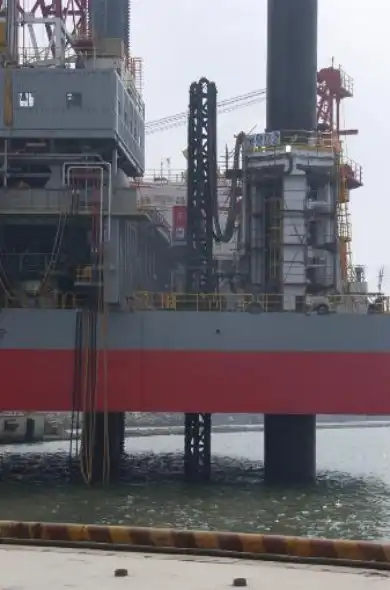

1.  Raw Water Tower System used for putting a submersible pump into seawater when the platform stands. Its main components include a submersible pump, water pipes, a water tower, and a jacking system.

2.  The product consists of two jacking units, one roller support unit, one electric cabinet for Jacking Units, and one electric cabinet for submersible pumps.

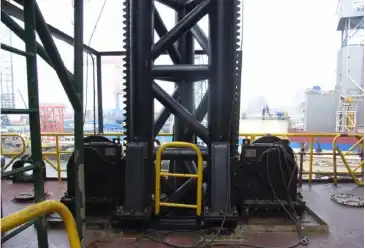

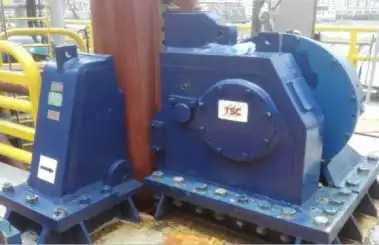

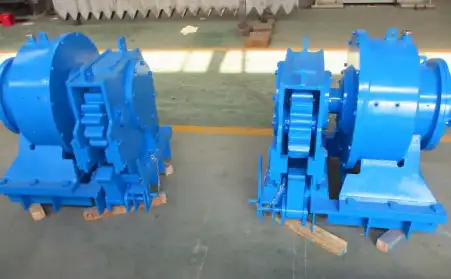

3.  The Jacking unit consists of a jacking gear box, motor, brake, and mounting bracket. The up and down of the Raw water tower is driven by the jacking unit. The tower can stay at any position with the holding power of the jacking unit.

4.  The jacking unit is equipped with a locking rack, which is installed on the top of the mounting bracket could supply redundant braking capacity to the raw water tower. With this unit, the raw water tower could stay at any position that the operation needed, or the maintenance needed.

Product Parameters

​​​​​​​ HST10-FR-S2.5 Technical Specifications

Quality Control​​​​​​​

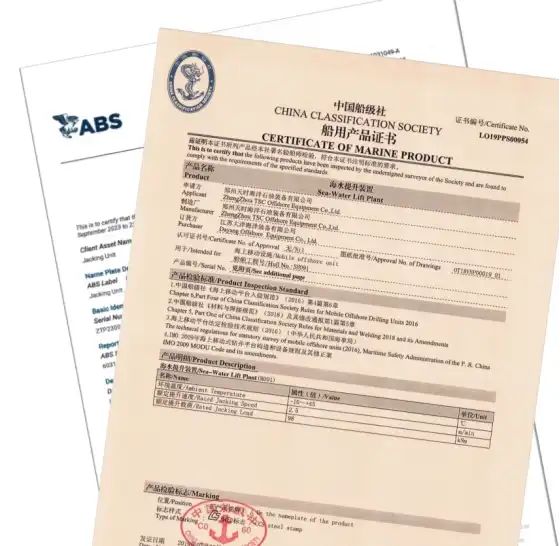

Approved by ABS and CCS Classification

Installation​​​​​​​

1.  On-site assembly

2.  On-board installation

3.  On-board test

For more product information about Raw Water Tower Jacking System, please leave a message below.
