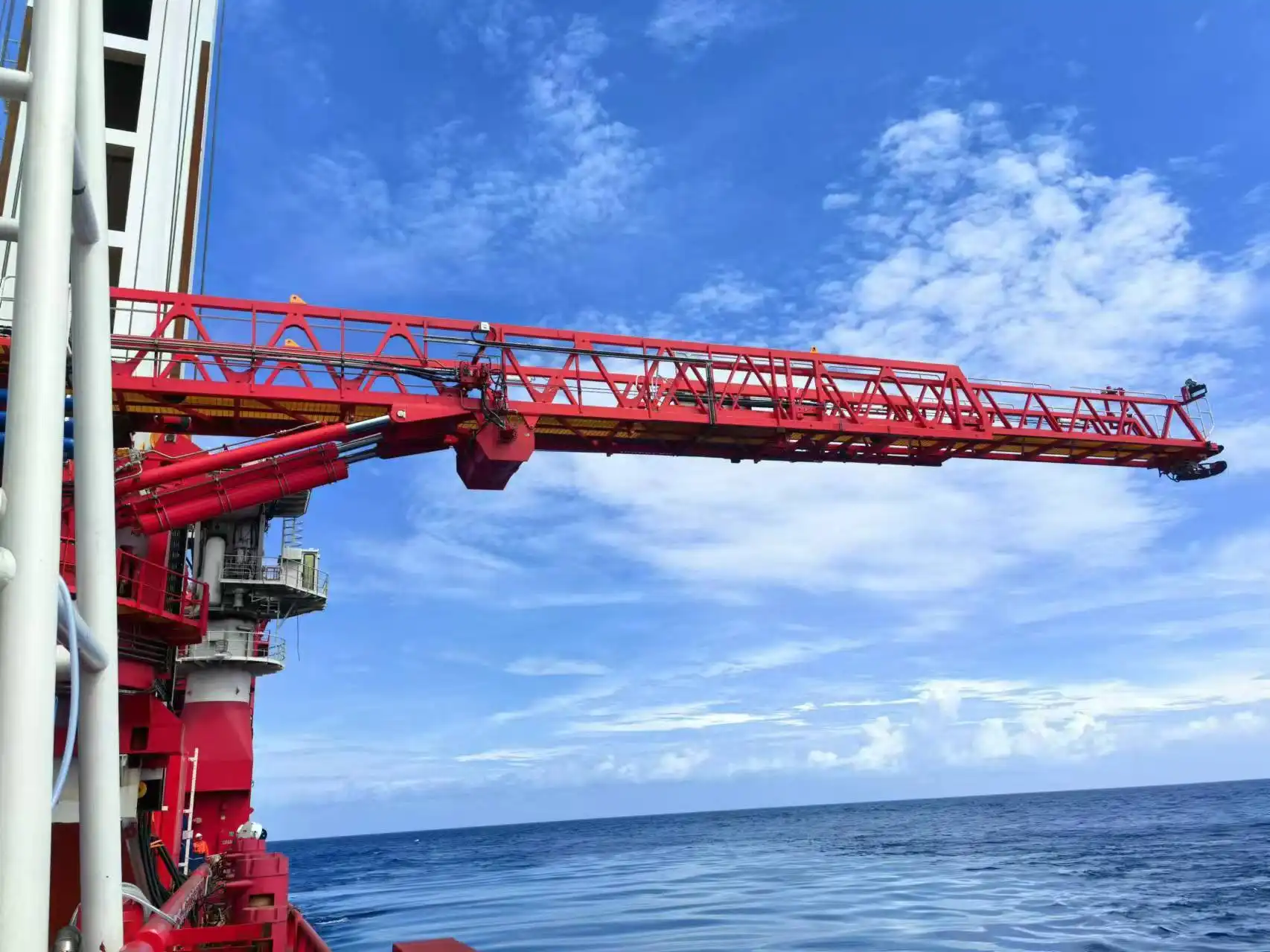

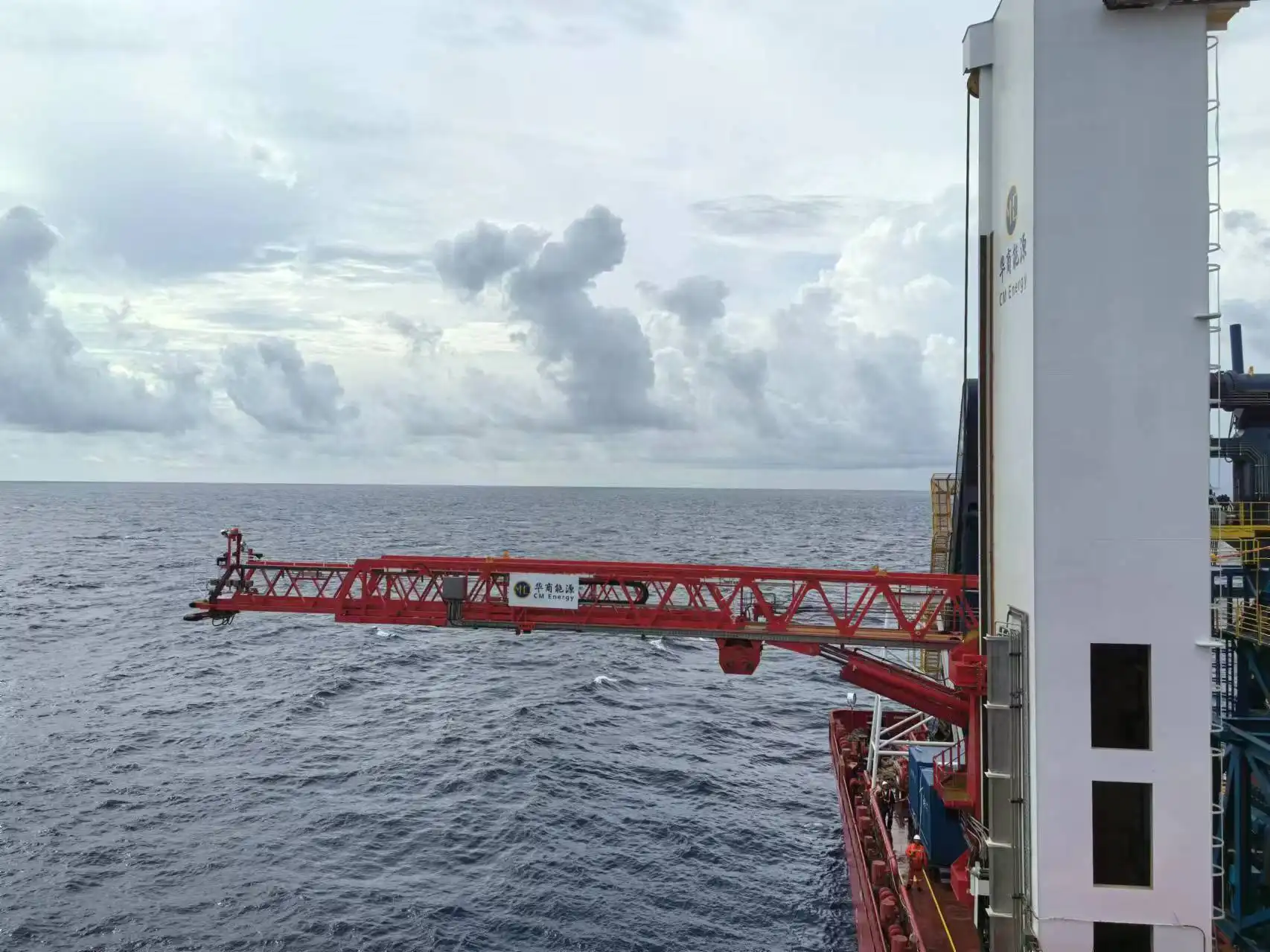

AMC Gangway
TSC develops and manufactures high quality, tailor-made Gangway and AMC Gangway for the offshore industry adopting the latest technology.
Marine Gangways are essential personnel transfer devices on vessels and offshore installations, providing a reliable passage to ensure that people can board or disembark safely and conveniently, or conduct operation via the gangway.
Our team consists of certified and experienced engineers, managerial staff, and technicians with shown abilities in the relevant fields, with a real willingness and motivation to effectively execute both ordinary and demanding tasks. TSC takes pleasure in consistently offering adaptable, affordable, and on-time solutions to our valued clients by combining its pioneering attitude toward serving the marine industry.
Why Choose Us?
TSC with years of experience in the design and production of offshore equipment, have the capability to provide customized offshore solutions for our clients. We make tailor-made products, for every hoist requirement on a vessel, or rig, including AMC Gangway, we can provide you with the best suitable cranes.
Classification Societies: CCS、DNV、ABS、BV、LR
Product Parameters
|
Safe Passage Personnel |
750kg/3 persons at all times |
|
3D Lift Capacity |
1000 kg |
|
Min. Boom Length |
21 m |
|
Max. Boom Length |
31m |
|
Bridge Width(Between Handrails) |
1200 mm |
|
Slewing Angel |
+120/-120 degrees |
|
Luffing Angle |
+20/-10 degrees (personnel transfer) |
|
+50/-20 degrees (offshore lift) |
|
|
Vertical Stroke Along |
10 m |
|
General Workability |
Up to Hs=3m |
Product Details
1. DNV&CCS Type "Ⅱ" Gangway
2. Controlled flow of people, routine personnel transfer
3. The gangway is fully adjustable in height
4. The ladder cylinder provides luffing, while the winch controls the extension and retraction
5. Three degrees of active wave compensation
6. Flexible docking device for connection to offshore installations
7. The ladder is made of high-strength steel or aluminum alloy, which is lightweight and high in strength
8. Equipped with dual power units
9. Over load protection; AOPS/MOPS
10. Local and remote control operating systems
11. Type approved fail safe Siemens PLC with a class 3 safety integrity level
12. Low power consumption
Quality Control
1. Complete ISO quality system
2. DNV welding plant
3. BV plant
4. Classification Society Certification-BV, DNV, ABS, CCS
Installation
1. Customer requirements analysis
2. Factory assembly
3. Factory acceptance test
4. Product Delivery
5. On-board installation
