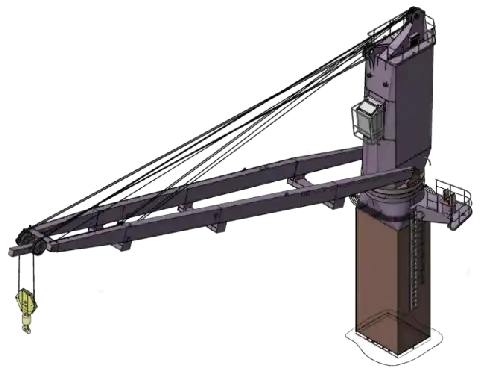

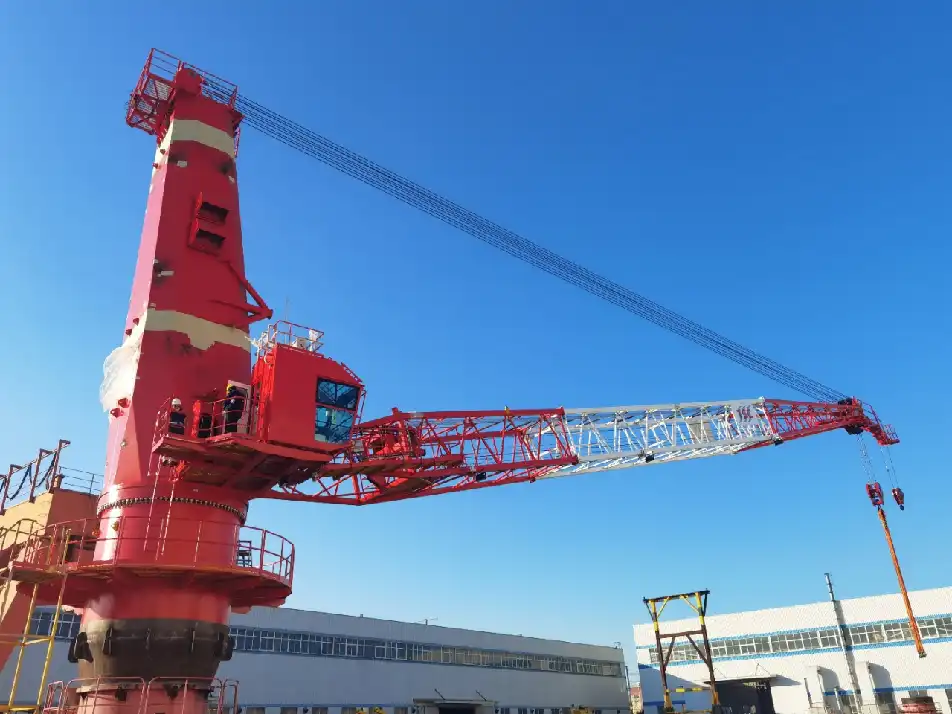

Marine Cranes
TSC develops and manufactures high quality, tailor-made cranes for the offshore industry adopting the latest technology.
TSC marine cranes are highly efficient and reliable, suitable for regular cargo handling operation on vessels and offshore installations. These cranes use wire rope luffing systems and are particularly well-suited for ample deck space is available. They can replace knuckle boom cranes or telescopic cranes. TSC products are equipped with built-in electrohydraulic power units and feature fully functional control rooms located on the side or front of the crane’s pedestal. Optional wired or wireless remote-control systems are available.
Our team consists of certified and experienced engineers, managerial staff, and technicians with shown abilities in the relevant fields, with a real willingness and motivation to effectively execute both ordinary and demanding tasks. TSC takes pleasure in consistently offering adaptable, affordable, and on-time solutions to our valued clients by combining its pioneering attitude toward serving the marine industry.
Why Choose Us?
TSC develops and manufactures a great range of Kingpost cranes, Slew-bearing cranes, Marine Cranes, and other types of hoisting equipment. Each has its own typical use and specification. We make tailor-made products, for every hoist requirement on a vessel, or rig, we can provide you with the best suitable cranes.
Classification Societies: CCS、DNV、ABS、BV、LR

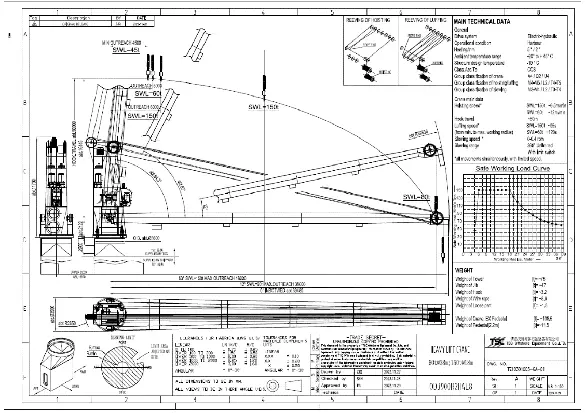

Product Parameters
|
Model |
Model PT32 |
Model RBBC45 |
|
Main Hook Capacity |
50 MT |
100~300 MT |
|
Boom Length |
20~40 m |
20~50 m |
|
Aux. Hook Capacity |
10 MT |
OPTIONAL |
|
Design Life |
25 years |
25 years |
|
Typical Application |
Suitable for bulk vessel or other offshore vessels lifting operation |
|
|
Performance Quantity |
1 set |
|
Product Details
1. Complete crane according to requirements from specified, Classification Society and Flag State to ensure safe operation
2. Compact design for versatile applications
3. Compliance with the most demanding safety rules and regulations
4. Reliable long service life, high-quality reputable components
5. Low lifecycle cost with few parts to maintain
6. Smooth and precise step-less controls
7. Computer design with the result of robust construction and low dead weight
8. Crane tower with enclosed construction
9. Power pack, hoisting, luffing, slewing gears as well as switchgear cubicles arranged inside
10. Jib of welded double-stringer construction
11. Standard Modular Design for hydraulic power unit saved space and supplied reasonable arrangement
12. Cabin is sound-insulated and resiliently suspended
13. Easy access to routine maintenance points
14. Simultaneous operation of two or more functions
15. Overload protection MOPS / AOPS / CT (optional)
16. Remote trouble shooting •Integrated power pack; electro-hydraulic
17. Long service life
Quality Control
1. Complete ISO quality system
2. DNV welding plant
3. BV plant
4. Classification Society Certification-BV, DNV, ABS, CCS
Installation
1. Customer requirements analysis
2 .Factory assembly
3 .Factory acceptance test
4 .Product Delivery
5. On-board installation
For more product information about Marine Cranes, please leave a message below.
