Slew-bearing Crane-wire Rope Luffing Crane

TSC designs and manufactures a diverse range of Wire Rope Luffing Cranes, featuring slew-bearing pedestals, wire rope luffing systems, and lattice booms. Custom-engineered for fixed platforms, Jack-ups, semi-submersibles, drilling vessels, and FPSOs, they meet every hoisting requirement with tailored solutions.
Product Description

TSC develops and manufactures a great range of Slew-bearing Crane-wire Rope Luffing Crane, based in the slew-bearing pedestal with wire rope luffing system and lattice boom. We make tailor-made products, so for every hoist requirement on fixed platform, Jack-up & semi-submersible platform, drilling vessel and FPSO.

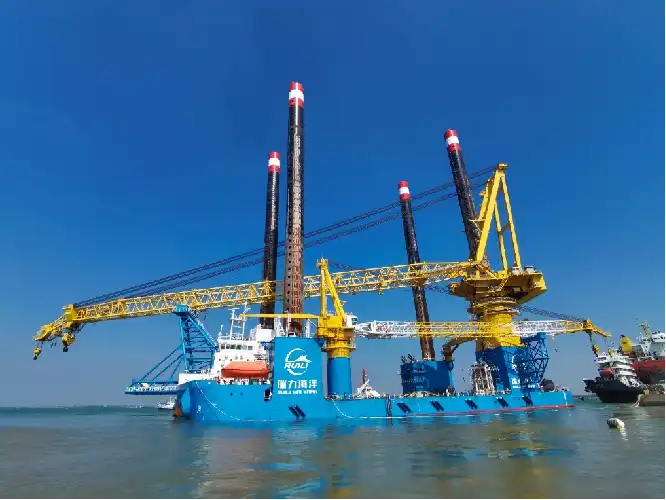

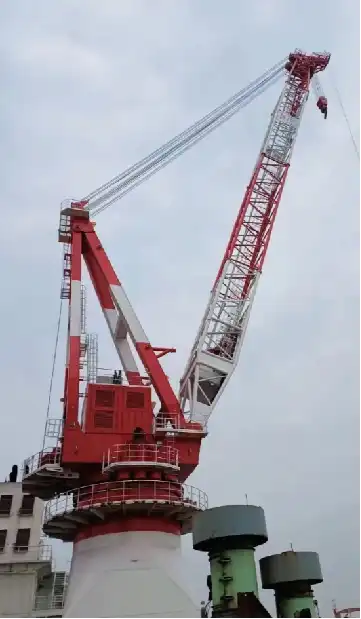

product-361-619        product-464-619

Why Choose Us?

TSC develops and manufactures a great range of Kingpost cranes, Slew-bearing cranes, Slew-bearing Crane-wire Rope Luffing Crane, and other types of hoisting equipment. Each has its own typical use and specification. We make tailor-made products, for every hoist requirement on a vessel, or rig, we can provide you with the best suitable cranes.

Classification Societies: CCS、DNV、ABS、BV、LR

Product Parameters

Model

Model P8

Model P10

Model P18

Model P32

Model P80

Model P120

Main Hook Capacity

50 MT

70 MT

80 MT

220 MT

300 MT

400 MT

Boom Length

20~40 m

30~50 m

30~55 m

40~55 m

40~70 m

50~70 m

Auxiliary Hook Capacity

Maximum 10 MT

Maximum 15 MT

Maximum 15 MT

Maximum 15 MT

Maximum 30 MT

Maximum 30 MT

Design life

25 years

25 years

25 years

25 years

25years

25 years

Typical Application

Bottom Supported Structure, Fixed Platforms, Jack-ups, Floaters, Drill ships  Semisubmersibles

Performance Quantity

/

 11sets

8sets

6sets

1sets

4sets

Product Details

1. Value engineered structures offer increased rigidity at lower weight

2. Best weight to capacity ratio of its class

3. Smooth and fluid rotation

4. Dedicated hydraulic pump circuit for each function ensures safe and reliable simultaneous multifunction operation

5. Safe & Reliable electric / hydraulic controls offer optimum hydraulic system performance

6. Available emergency crane operating system allows full function crane operation in the event of prime mover or hydraulic pump failure

7. Substantial Off-board lifting capacity

8. Centralized lubrication: Manual or Electric

9. Low maintenance cost, all parts can be separately repaired

10. MOPS / AOPS / CT (optional)

11. Hook parking device, effectively preventing hook overtopping

12. TSC integrated electrical control system, integrating load management and safety alarm systems

13. Modular design with standardized components, short delivery cycle

14. API-2C certified product

15. Periodic recording of operational data

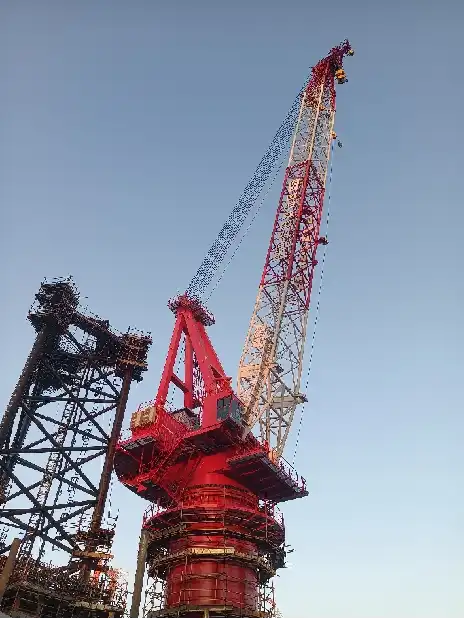

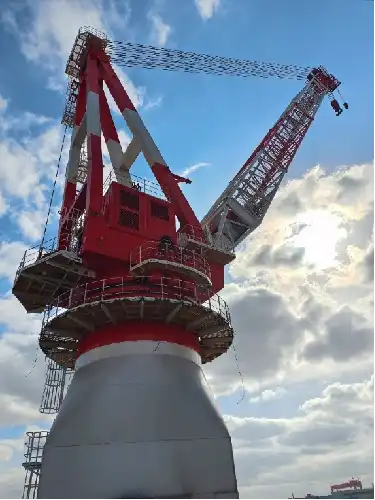

​​​​​​​product-666-500    product-375-500

Quality Control

1. Complete ISO quality system

2. DNV welding plant

3. BV plant

4. Classification Society Certification-BV, DNV, ABS, CCS

Installation​​​​​​​

1. Customer requirements analysis

2. Factory assembly

3. Factory acceptance test

4. Product Delivery

5. On-board installation

For more product information about Slew-bearing Crane-wire Rope Luffing Crane, please leave a message below.
