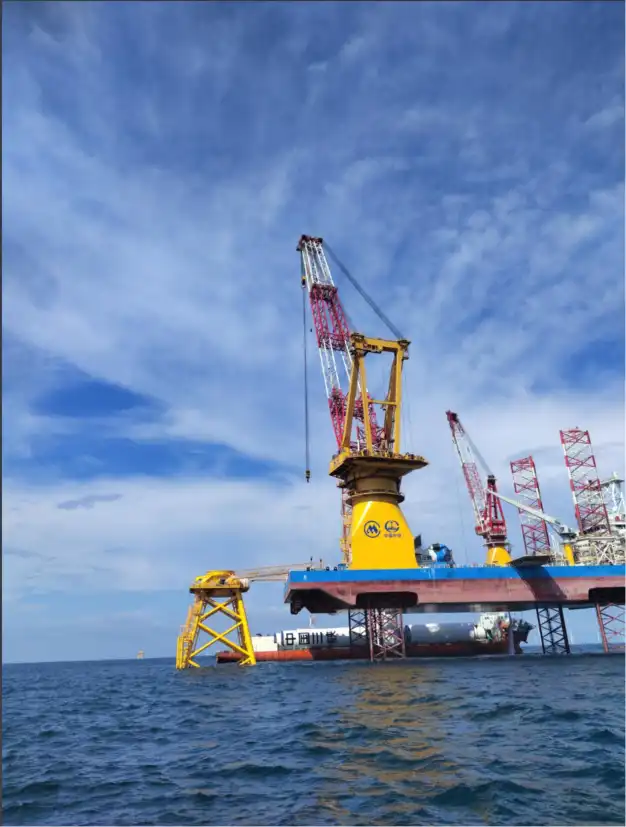

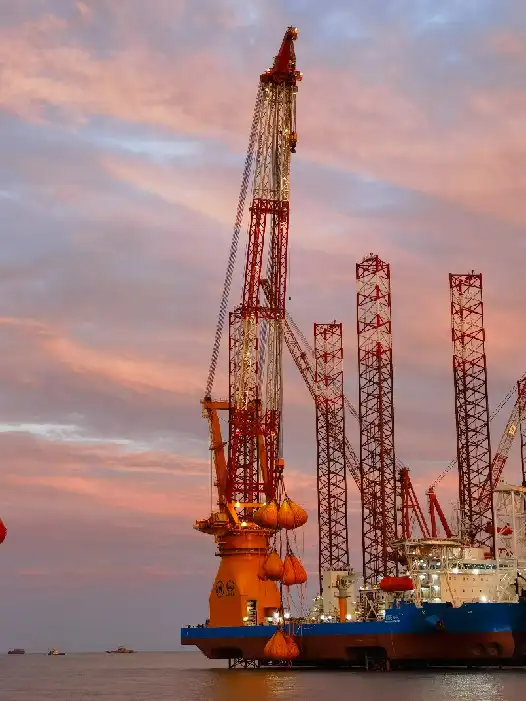

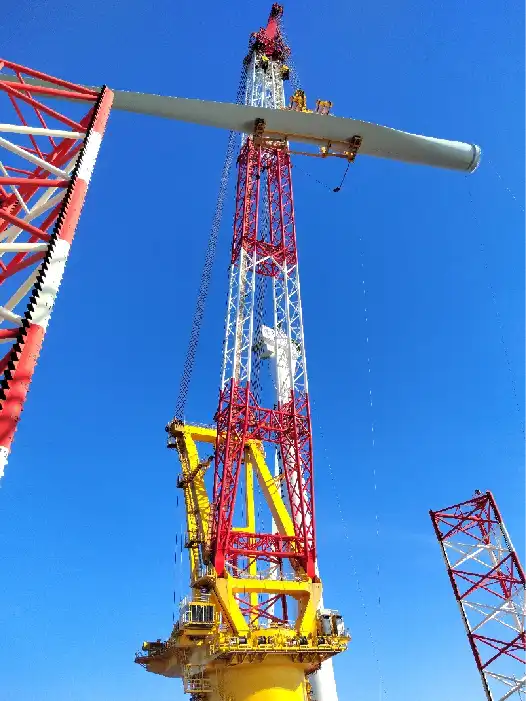

Leg Encircling Crane
TSC develops and manufactures high-quality, tailor-made cranes for the offshore industry, adopting the latest technology.
TSC develops and manufactures a great range of Leg Encircling Cranes. At present, the most capacity crane: Main hook double hook 1600T@35m The maximum lifting height of the main hook is 195m above the water surface, and the auxiliary hook 800T@41m The maximum lifting height of the secondary hook is 210m above the water surface; Two 1200T hooks with a capacity of up to 1200T@45m (single hook), currently the largest single hook capacity in domestic wind power installation platforms, can achieve one in use and one backup, greatly ensuring the safety and continuity of operations.
Our team consists of certified and experienced engineers, managerial staff, and technicians with shown abilities in the relevant fields, with a real willingness and motivation to effectively execute both ordinary and demanding tasks. TSC takes pleasure in consistently offering adaptable, affordable, and on-time solutions to our valued clients by combining its pioneering attitude toward serving the marine industry.
Why Choose Us?
TSC develops and manufactures a great range of Kingpost cranes, Slew-bearing cranes, Leg Encircling Crane, and other types of hoisting equipment. Each has its own typical use and specification. We make tailor-made products, for every hoist requirement on a vessel, or rig, we can provide you with the best suitable cranes.
Classification Societies: CCS、DNV、ABS、BV、LR
Product Parameters
|
|
Unit |
Dual main hook |
Single main hook |
Aux hook |
|
|
SWL |
t |
1600 |
1200 |
800 |
|
|
Lifting height（up/down deck） |
m |
155/40 |
155/40 |
170/40 |
|
|
Speed (outset layer） |
full |
m/min
|
0~4.5 |
0~3.4 |
0~4.6 |
|
|
empty |
0~9.0 |
0~6.8 |
0~9.2 |
|
|
Power |
km |
1000kwx2 |
1000kw |
475kwx2 |
|
|
Rope dia. |
mm |
56 |
54 |
||
Product Details
1. Mechanical structure: Optimized structural form, clear and precise force transmission, compact mechanism, high safety
2. Main hook double hook design, make the highly effective operation
3. Equipped with wire tensioning and cargo stabilizing system
4. Electric automatic centralized lubrication
5. The crane’s intelligent control system can monitor stress and predict risks during heavy-load operations
6. High-end components are used, including winch, wire ropes, variable frequency control systems, and slip rings
7. Customized support services are available for customers
Quality Control
1. Complete ISO quality system
2. DNV welding plant
3. BV plant
4. Classification Society Certification-BV, DNV, ABS, CCS
Installation
1. Customer requirements analysis
2. Factory assembly
3. Factory acceptance test
4. Product Delivery
5. On-board installation
