Fixation System
The Fixation System is designed according to the latest version of marine regulations, meeting various marine engineering operating environments. It adopts hydraulic-electric driving and control system, with a simple structure, reliable operation, and easy operation and maintenance. Existing models include FS5000 and FS10000, and can be customized according to user requirements
Why Choose Us?
1. The product features higher safety, reliability and durability.
2. The product customized Solutions - Tailored integration for new builds or retrofts.
3. Zhengzhou TSC Offshore Equipment Co., Ltd.(TSC-Zhengzhou), a subsidiary company of CM Energy Tech Co., Ltd., is located in Zhengzhou High and New Tech Development Zone. High-tech Enterprise of Henan Province.
4. TSC-Zhengzhou designs and manufactures various products such as Jacking System, Fixation System, raw water tower jacking system, skidding system, leg material , main chord and other heavy gear products more than 20 years.
5. TSC-Zhengzhou is Zhengzhou Offshore Petroleum Equipment Engineering and Technology Center (2013), Henan Offshore Platform jacking System Equipment Engineering and Technology Center (2018), a participant in the National Standard for Gear Accuracy, and a specialized company engaged in the research and development, production, sales, and engineering services of offshore jack-up platform transmission products. 67 employees, 39 with a bachelor's degree or above, 7 with a postgraduate degree, 2 professor-level senior engineers, 4 senior engineers, and 2 senior technicians.
6. TSC-Zhengzhou have a sound quality system, ISO Certificate, and major classification societies certification
Product Details
1. The product works in conjunction with the Jacking system. The Jacking System elevates and lowers the hull (and legs). Once jacking operations are completed, the product supports the hull in the elevated condition (and the legs in the tow condition).

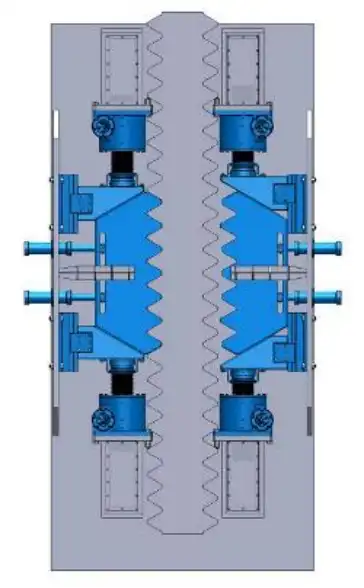

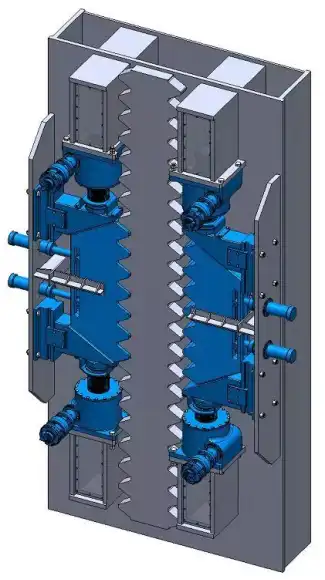

2. The product has two rack chocks that engage the opposed tooth leg rack at each leg chord. Each rack chock is supported by two mechanical screw jacks.
3. The material of rack chock features high strength, high toughness, large thickness and strong corrosion resistance.
4. Screw jack assemblies consisting of a screw, nut, housing.
5. The product is manufactured under ISO 9001 certified quality system and tested according to class rules.
Product Parameters
FS5000 Technical Specifications
|
Main Parameter |
|
|
|
Vertical Chordal Static Holding |
5000 MT |
|
|
Horizontal chord load capacity |
2887 MT |
|
|
Ambient Temperature(open deck) |
-20℃~ 50℃ |
|
FS10000 Technical Specifications
|
Main Parameter |
|
|
|
Vertical Chordal Static Holding |
10000 MT |
|
|
Horizontal chord load capacity |
5774 MT |
|
|
Ambient Temperature(open deck) |
-20℃~ 50℃ |
|
Quality Control
Approved by ABS&CCS
Installation
On-board installation
For more product information about Fixation System, please leave a message below.
