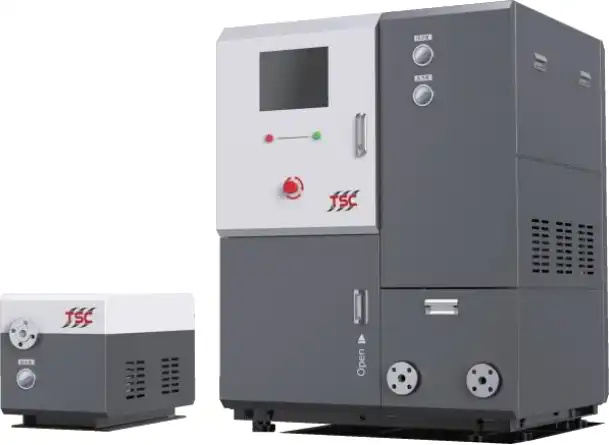

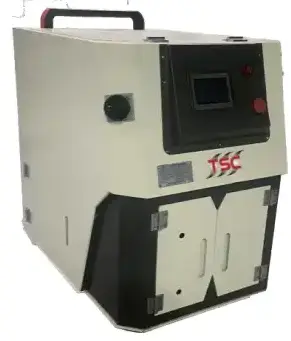

Ultrafiltration Equipment
The ultrafiltration equipment of CM Energy focuses on the lubricating technology development and equipment production, and provides customers with a set of scientific lubrication management solution. It overturns the traditional lubrication management ideas and technology means and achieves good economic and social benefits.

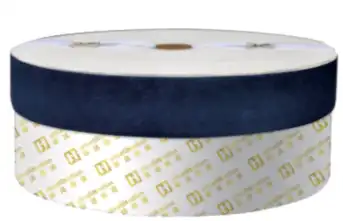

In the lubricating oil used, particles less than 25 microns account for more than 99% of the impurities. Traditional extrusion filtration methods often ignore particles below 25 microns to solve the contradiction between flow rate and accuracy. When using ultrafiltration technology, the lubricating oil passes through the gap between the filter paper layers, due to the irregular Brownian motion of particulate impurities. The ultrafiltration filter element can make the particles adsorb on the surface of the filter paper layer by layer, and the minimum capture particle size is 0.5 μm.
The fuel-saving efficiency of the CM-Energy ultrafiltration equipment in diesel engines was verified through the establishment of scientific process standards and bench tests. Based on fuel-saving performance data obtained from both laboratory bench tests and on-board ship measurements, this study validated the correlation between lubricant quality and energy conservation effectiveness, while further analyzing the relationship between energy-saving outcomes and different engine models.
Why Choose Us?
1. Expertise in the lubricating technology development and equipment production
2 . Impressive fuel-saving effect up to 5%
3 . Authoritative Certification of CCS-approved with real-world validation.
4. Full Lifecycle Support throughout Installation and maintenance
5. Customized solutions with a set of scientific lubrication management
Product Parameters
|
Series Number |
LV Series |
||||
|
Model Specifications |
LVO-2F |
LVO-1F |
LVO-4F |
LVO-2F-PH |
LVO-4F-PH |
|
External Dimensions (mm) |
400*350*600 |
790*430*900 |
790*570*900 |
790*430*900 |
790*570*900 |
|
Rated flow rate (L/min) |
3 |
8 |
16 |
8 |
16 |
|
Work Pressure(bar) |
≤5 |
≤5 |
≤5 |
≤5 |
≤5 |
|
Work Temperature (℃) |
≤80 |
≤80 |
≤80 |
≤80 |
≤80 |
|
Abient Temperature (℃) |
15-45 |
15-45 |
15-45 |
-30-45 |
-30-45 |
|
Weight of Equipment (KG) |
25 |
95 |
125 |
95 |
125 |
|
Import and Export Caliber(mm) |
DN8 |
DN15 |
DN20 |
DN15 |
DN20 |
|
Rated power (KW) |
0.2 |
0.4 |
0.4 |
0.4 |
0.4 |
|
Power supply parameters (v) |
220/380 |
220/380 |
220/380 |
220/380 |
220/380 |
|
Filter ratio (β3) |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
|
Minimum capture particle size (μm) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Series Number |
MEL Series |
||
|
Model Specifications |
MEL-305 |
MEL-307 |
MEL-203 |
|
External Dimensions (mm) |
1050*1020*1360 |
790*430*900 |
790*570*900 |
|
Rated flow rate (L/min) |
600 |
1200 |
480 |
|
Oil Tank Capacity(L) |
500-5000 |
5000-50000 |
0-500 |
|
Wor Pressure(bar) |
≤5 |
≤5 |
≤5 |
|
Work Temperature (℃) |
65-85 |
65-85 |
65-85 |
|
Weight of Equipment (KG) |
650 |
780 |
190 |
|
Import and Export Caliber(mm) |
DN20 |
DN25 |
DN15 |
|
Rated power (KW) |
12 |
20.5 |
2 |
|
Power supply parameters (v) |
380/440 |
380/440 |
380/440 |
|
Element changing period (Hours) |
2000 |
1500 |
2000 |
|
Filter ratio (β3) |
≥1000 |
≥1000 |
≥1000 |
|
Minimum capture particle size (μm) |
0.5 |
0.5 |
0.5 |
Product Details

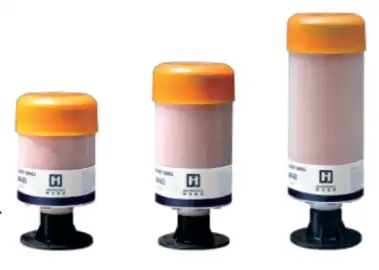

1. Multistage filtration and adsorption depth filtration, minimum capture particle size 0.5μm
2. With the ability to remove water, a set of filter elements can absorb 5 liters of water and break the emulsion
3. Sludge solidification and separation, zero waste oil, energy saving, and environmental protection
4. Independent electric heating system, used to preheat the engine system
5. Prolong the oil change interval by at least 3 times
6. The engine overhaul cycle is extended 2-3 times
7. Reduced engine spare parts usage to 50%
8. It has the function of dewatering and demulsification
9. Reduced fuel consumption by 1.5-5%
10. Detecting moisture online (optional
Quality Control
1. Quality management system certification
2. Classification Society Certification of CCS
3. Inspection certificate
4. Product Liability Insurance
Installation
1. Equipment Positioning
2. Installation of Oil Supply Pump Unit
3. Pipeline Installation
4. Electrical Cable Installation
5. Equipment Commissioning
