Vibration control is an important part of drilling that works on ocean platforms, land-based sites, and specialized drilling uses. In solids control systems, the Shale Shaker is the most important part because it keeps the useful drilling fluid separate from the rock particles. This protects the fluid's features and helps the system run smoothly. But, if you're not careful, the movements that cause this important split can make the equipment wear out faster, raise upkeep costs, and cause operations to stop. Vibrations can be very damaging to drilling equipment in today's tough working conditions. To protect your tools and save money on projects, you need to both understand and use vibration control methods.
Understanding Shale Shaker Vibration and Its Impact
Rotational forces that need to be carefully controlled are used by solid control tools to help separate drill bits from drilling fluid. Because of this, energy is very important, but it can also hurt things. The fundamental mechanics involve screen decks that oscillate at specific frequencies and amplitudes to transport cuttings while allowing clean drilling fluid to pass through mesh openings.
Core Components Affected by Vibration
Vibration stresses out mainly screen decks, vibration motors, suspension springs, and separate systems. Screen decks can get wear cracks and fail too soon if you don't do the right shaking, since they are always moving back and forth. Vibration motors make the needed forces, but they have to be perfectly balanced so their joints and connection points don't wear out too fast.
Adding springs and separation systems are important for keeping shocks inside the equipment frame so they don't affect the structures around it. When these components deteriorate, uncontrollable movements spread throughout the drilling system, causing additional maintenance issues and working problems.
Common Vibration-Related Problems
Excessive vibration manifests in several problematic ways that directly impact drilling efficiency. Screen damage occurs when vibration amplitudes exceed design parameters, causing premature mesh failure and reduced separation effectiveness. Deck wear accelerates under uncontrolled vibration conditions, leading to uneven screening surfaces and compromised fluid processing capabilities.
Operational inefficiencies emerge when vibration control systems fail to maintain optimal screening parameters. Poor cuttings transport, inadequate fluid recovery, and inconsistent separation performance all trace back to vibration management deficiencies that compound operational costs over time.
Principles and Techniques of Vibration Control in Shale Shakers
Good vibration control means finding the right mix between amplitude and frequency to keep equipment from wearing out and get the best materials separation using well-thought-out engineering methods. The Shale Shaker, as a key component, plays a vital role in this process. Today's ways use a lot of different control systems to get stable, controlled motions. This makes sorting faster and helps the tools last longer.
Fundamental Control Principles
Damping systems soak up kinetic energy that is too high and would otherwise cause parts to wear out and the system to become unstable. These systems use special materials and mechanical designs to get rid of movements that aren't needed while keeping the controlled motion that is needed for good screening operations.
Isolation methods stop vibrations from traveling outside of the area being tested, which keeps nearby machines and buildings safe from these possibly harmful forces. Proper separation also makes things quieter and better for people who are digging.
Advanced Engineering Solutions
Modern vibration control incorporates precision-tuned motors that deliver consistent performance across varying operational conditions. These motors feature enhanced balancing systems and variable frequency capabilities that allow operators to optimize screening parameters for different drilling fluid characteristics and cuttings types.
Material innovations in screen deck construction contribute significantly to vibration durability. Advanced alloys and composite materials resist fatigue failure while maintaining screening effectiveness under repetitive stress cycles. The TSC brand has pioneered several material advances that extend component life while improving separation performance.

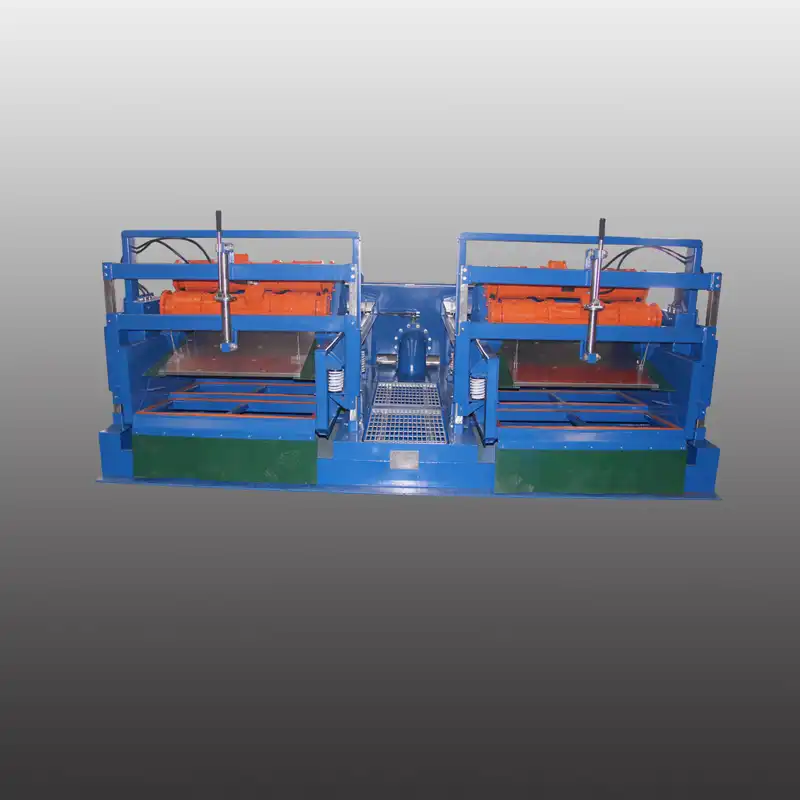

CM Energy's HS270 series demonstrates these principles through its adjustable deck angle feature, which allows real-time optimization without equipment shutdown. The Shale Shaker, with its slightly cylindrical hill deck design, enhances screen tension and contact, improving separation effectiveness while reducing vibration-induced stress concentrations.
Practical Maintenance Tips to Minimize Vibration-Induced Wear
Regular repair procedures are the most important part of good vibration control. They make sure that control systems keep working within the design limits for as long as the equipment lasts. Proactive maintenance finds and fixes small shaking issues before they turn into big operational problems that slow down digging.
Essential Inspection Procedures
Systematic checks should focus on finding loose fixing hardware that can make vibrations stronger and make parts wear out faster. It is very important to properly position a vibration motor because imbalance causes forces that are not balanced. These forces put extra stress on the fastening systems and lower the efficiency of the separation process.
Isolation system condition directly affects vibration control effectiveness, making regular assessment of springs, dampers, and mounting interfaces critical maintenance activities. Visual inspection combined with operational monitoring helps identify degraded components before they compromise system performance.
Preventive Maintenance Strategies
Lubrication protocols maintain smooth operation of moving components while reducing friction-related wear that can amplify vibration problems. Proper lubrication schedules consider operational intensity and environmental conditions to ensure adequate protection without over-lubrication issues.
Component replacement timing balances operational needs with maintenance efficiency, replacing wear-prone items like screen panels before failure occurs. The HS270's PTS screen technology extends service intervals through enhanced durability, while the fully sealed structure prevents contamination that could accelerate wear.
These maintenance practices work together to sustain optimal vibration control performance, reducing unplanned downtime and extending equipment service life across diverse drilling applications.
Comparison of Vibration Control Solutions Available in the Market
The vibration control technology landscape offers various approaches ranging from traditional mechanical solutions to sophisticated monitoring and control systems. Understanding these options helps drilling professionals select appropriate technologies for their specific operational requirements and performance objectives.
Traditional Mechanical Approaches
Conventional vibration control relies primarily on passive mechanical systems including spring mounts, rubber isolators, and fixed damping elements. While these approaches provide basic vibration containment, they often lack the adaptability needed for varying operational conditions and may contribute to higher wear rates under demanding drilling scenarios.
Energy consumption in traditional systems tends to be higher due to less efficient vibration generation and control mechanisms. Maintenance requirements typically increase over time as mechanical components experience fatigue and wear under constant vibrational stress.
Advanced Technology Solutions
Modern vibration control systems integrate variable frequency drives, adaptive damping mechanisms, and real-time monitoring capabilities that optimize performance across changing operational conditions. These systems adjust vibration parameters automatically to maintain optimal separation efficiency while minimizing component stress.
Energy efficiency improvements result from more precise vibration control that eliminates wasted motion while maintaining effective screening action. Smart monitoring tools provide early warning of potential problems, enabling proactive maintenance that prevents costly downtime.
Material advances in screen construction and mounting systems offer enhanced durability under vibration stress. The Shale Shaker, as exemplified by the TSC HS270 series, demonstrates these improvements through its combination of adjustable parameters, advanced screen technology, and robust construction designed for extended service life.
CM Energy: Advanced Vibration Control Solutions
CM Energy brings decades of experience in solid control equipment design and manufacturing to deliver comprehensive vibration control solutions tailored to diverse drilling environments. Our expertise spans offshore platforms, land-based operations, and specialized applications including geothermal drilling, directional drilling, and environmental remediation projects.
Proven Technology Integration
Our HS270 series represents the culmination of extensive research and development in vibration control technology. The adjustable deck angle capability allows operators to optimize screening parameters without interrupting operations, while the PTS screen system delivers extended service life through superior material design and construction.
The slightly cylindrical hill deck design enhances screen tension and contact efficiency, improving separation performance while reducing stress concentrations that contribute to premature wear. Combined with our fully sealed structure, these features create a comprehensive approach to vibration management that addresses both performance and durability requirements.
Comprehensive Service Support
CM Energy provides global service support through our extensive network, ensuring that clients receive responsive maintenance, repair services, and technical support regardless of operational location. Our 24x7x365 technical support commitment reflects our understanding of the critical nature of solid control equipment in drilling operations.
Customized solutions address specific operational challenges through tailored engineering and manufacturing capabilities. Whether retrofitting existing equipment or integrating new installations, our team develops solutions that optimize vibration control for each unique application while maintaining compatibility with existing systems and operational procedures.
Conclusion
Effective vibration control in solid control equipment directly impacts operational success across all drilling applications, from offshore platforms to specialized directional drilling projects. The balance between necessary screening vibration and equipment preservation requires sophisticated engineering solutions that modern technology can provide. CM Energy's HS270 series demonstrates how advanced vibration control technologies can extend equipment life while improving separation efficiency. The Shale Shaker, as a key component in this process, plays a crucial role in maintaining this balance. Through proper maintenance protocols, appropriate technology selection, and comprehensive service support, drilling operations can achieve optimal performance while minimizing vibration-induced wear and associated costs.
Frequently Asked Questions
Q1: How often should vibration control components be inspected?
A: Vibration control components require inspection every 500 operating hours or monthly, whichever occurs sooner. Critical components like motor mounts and isolation systems need more frequent monitoring in harsh operational environments to ensure optimal performance and prevent premature failure.
Q2: What are the key indicators of vibration-related wear?
A: Primary indicators include unusual operational noises, uneven cuttings removal patterns, increased power consumption, and visible component movement during operation. Early detection of these symptoms allows for corrective action before major component failure occurs.
Q3: How does proper vibration control improve energy efficiency?
A: Effective vibration control eliminates wasted motion and reduces friction losses, leading to lower power consumption while maintaining separation effectiveness. Well-controlled systems operate more efficiently and require less energy to achieve optimal screening performance across varying operational conditions.
Partner with CM Energy for Superior Vibration Control Solutions
CM Energy stands ready to optimize your solid control operations through advanced vibration control technology and comprehensive service support. Our global network provides localized service delivery while our extensive experience ensures effective solutions for offshore platforms, land-based drilling, and specialized applications. Whether you need new equipment, retrofits, or ongoing maintenance support, CM Energy delivers proven technology that reduces wear and maximizes operational efficiency. As a leading Shale Shaker manufacturer, we understand the critical importance of reliable vibration control in maintaining drilling productivity. Contact us at info.cn@cm-energy.com to discuss your specific requirements and discover how our HS270 series can enhance your operations while reducing equipment wear and maintenance costs.
