What is a Leg Encircling Crane for Offshore Use?

Understanding Leg Encircling Cranes: What They Are and How They Work

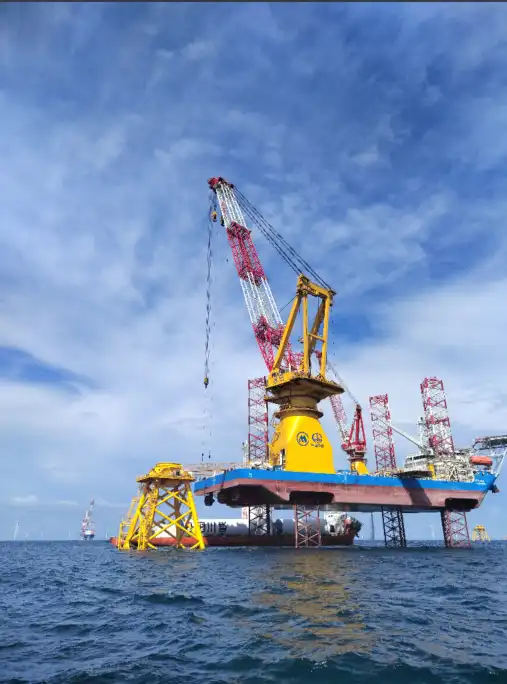

Leg Encircling Cranes are sophisticated pieces of machinery specifically engineered for use in offshore environments. Their design is centered around the concept of encircling one of the legs of a jack-up rig or self-elevating platform, which provides several advantages in terms of stability, space utilization, and operational efficiency.

Design and Structure

The primary components of a Leg Encircling Crane include:

• A circular base that wraps around the platform leg
• A robust slewing bearing that allows for 360-degree rotation
• A boom or jib that extends outward for lifting operations
• Winches and wire ropes for hoisting and lowering loads
• A control cabin for operator oversight

TSC's Leg Encircling Cranes are designed with optimized structural forms, ensuring clear and precise force transmission throughout the crane's components. This attention to detail results in a compact mechanism with high safety standards.

Operational Principles

The operation of a Leg Encircling Crane involves several key principles:

1. The crane's circular base provides a stable foundation, minimizing the effects of platform movement.
2. The slewing bearing allows the crane to rotate fully, providing access to all areas around the platform.
3. Advanced control systems monitor stress and predict risks during heavy-load operations.
4. Dual hook designs enable highly effective operations by allowing simultaneous lifting of multiple loads.

These cranes are equipped with sophisticated systems like wire tensioning and cargo stabilizing mechanisms, which enhance operational safety and efficiency in challenging offshore conditions.

Key advantages of leg encircling cranes in harsh marine environments

Leg Encircling Cranes offer numerous benefits that make them particularly well-suited for use in demanding offshore settings. Their design and capabilities address many of the challenges posed by marine environments, making them invaluable assets for various offshore operations.

Stability and Performance in Adverse Conditions

One of the primary advantages of Leg Encircling Cranes is their exceptional stability. By encircling the platform leg, these cranes maintain a low center of gravity and distribute forces effectively, even in rough seas. This stability translates to:

• Improved safety during lifting operations
• Enhanced precision in load placement
• Reduced downtime due to weather conditions
• Greater operational efficiency in challenging environments

TSC's Leg Encircling Cranes are built to withstand extreme weather conditions, incorporating corrosion-resistant materials and robust engineering to ensure longevity and reliability in saltwater environments.

Space Optimization and Versatility

The design of Leg Encircling Cranes offers significant advantages in terms of space utilization on offshore platforms:

• Minimal deck footprint, freeing up valuable space for other equipment and operations
• 360-degree slewing capability, providing access to all areas around the platform
• Versatility in handling various types of loads and operations

Advanced Technology Integration

Modern Leg Encircling Cranes incorporate cutting-edge technology to enhance performance and safety:

• Intelligent control systems for real-time monitoring and risk prediction
• Electric automatic centralized lubrication systems for reduced maintenance
• High-end components, including advanced winches and variable frequency control systems

These technological advancements contribute to increased operational efficiency, reduced downtime, and improved overall safety in offshore environments.

Comparing leg encircling cranes to traditional offshore lifting solutions

When evaluating lifting solutions for offshore applications, it's essential to understand how Leg Encircling Cranes compare to more traditional options. This comparison highlights the unique benefits that Leg Encircling Cranes bring to offshore operations.

Space Efficiency and Deck Layout

One of the most significant advantages of Leg Encircling Cranes over traditional offshore cranes is their efficient use of deck space:

• Leg Encircling Cranes: Utilize the platform leg as a mounting point, minimizing deck footprint.
• Traditional Cranes: Often require substantial deck space for their base and counterweights.

This space efficiency allows for more flexible deck layouts and the accommodation of additional equipment or cargo.

Operational Range and Flexibility

The design of Leg Encircling Cranes offers superior operational range compared to many traditional lifting solutions:

• Leg Encircling Cranes: Typically offer 360-degree rotation and extended reach due to their elevated position.
• Traditional Cranes: May have limited slewing ranges or reach, depending on their mounting location and design.

Stability and Performance in Harsh Conditions

When it comes to stability in challenging offshore environments, Leg Encircling Cranes often outperform traditional alternatives:

• Leg Encircling Cranes: Benefit from a lower center of gravity and integration with the platform structure.
• Traditional Cranes: May be more susceptible to platform movement and environmental forces.

The enhanced stability of Leg Encircling Cranes translates to improved safety and operational continuity, even in adverse weather conditions. TSC's cranes are engineered with this stability in mind, incorporating features like wire tensioning and cargo stabilizing systems to further enhance performance in harsh marine environments.

Customization and Adaptability

Leg Encircling Cranes offer greater potential for customization to meet specific operational requirements:

• Leg Encircling Cranes: Can be tailored to the exact specifications of the platform and intended use.
• Traditional Cranes: Often come in more standardized configurations with limited customization options.

TSC takes pride in developing and manufacturing tailor-made Leg Encircling Cranes, ensuring that each crane is optimally suited for its intended application and operating environment.

Conclusion

Leg Encircling Cranes represent a significant advancement in offshore lifting technology, offering unparalleled benefits in terms of space efficiency, operational flexibility, and performance in harsh marine environments. Their unique design, which integrates seamlessly with offshore platforms, provides a stable and powerful lifting solution that outperforms many traditional alternatives. As the offshore industry continues to evolve, particularly in areas such as renewable energy and advanced oil and gas exploration, the demand for sophisticated and reliable lifting equipment like Leg Encircling Cranes is likely to grow.

For companies operating in the offshore sector, investing in high-quality Leg Encircling Cranes can lead to improved operational efficiency, enhanced safety, and increased project capabilities. As a leader in this field, TSC continues to innovate and refine its crane designs, ensuring that its products meet the ever-changing needs of the offshore industry.

If you're involved in offshore operations and looking to optimize your lifting capabilities, consider the advantages that a state-of-the-art Leg Encircling Crane could bring to your projects. With their combination of power, precision, and adaptability, these cranes are set to play an increasingly crucial role in shaping the future of offshore operations.

For more information on how CM Energy's advanced Leg Encircling Cranes can benefit your offshore operations, please contact our team of experts. We're committed to providing innovative solutions that drive efficiency and safety in the offshore industry. Reach out to us at info.cn@cm-energy.com to discuss your specific requirements and discover how our cutting-edge technology can elevate your offshore projects to new heights.

FAQ

1. How do Leg Encircling Cranes enhance safety in offshore operations?

Leg Encircling Cranes enhance safety through their stable design, advanced control systems, and features like wire tensioning and cargo stabilizing systems. TSC's cranes are equipped with intelligent control systems that monitor stress and predict risks during heavy-load operations, significantly improving operational safety.

2. Can Leg Encircling Cranes be customized for specific offshore applications?

Yes, TSC specializes in developing and manufacturing tailor-made Leg Encircling Cranes. They can be customized to meet specific requirements for various offshore applications, ensuring optimal performance and compatibility with different platform designs and operational needs.
