Step-by-step hydrogen refueling process
Initiating the fueling sequence
The hydrogen refueling process begins when a driver pulls up to the dispenser at a hydrogen fueling station. The first step involves connecting the dispenser nozzle to the vehicle's fuel inlet. TSC's advanced nozzle designs ensure a secure and leak-free connection, prioritizing safety throughout the fueling process.
Once connected, the system performs a series of safety checks. Sensors verify the proper connection and assess the vehicle's current fuel level and tank pressure. This information is crucial for determining the appropriate fill strategy.
Pressure equalization and pre-cooling
Before the actual fueling begins, the station's control system initiates a pressure equalization phase. This step ensures that the pressure difference between the station's storage tanks and the vehicle's fuel tank is optimal for safe and efficient transfer.
Simultaneously, the hydrogen is pre-cooled to compensate for the heat generated during the compression process. This cooling is essential to prevent overheating of the vehicle's fuel system and to achieve a complete fill.
Active fueling and monitoring

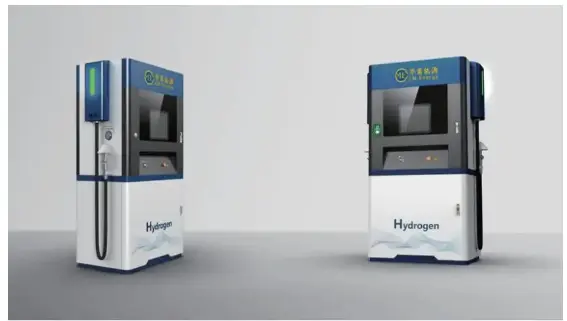

With preparations complete, the active fueling phase begins. The hydrogen filling machine precisely controls the flow of hydrogen into the vehicle's tank. Advanced algorithms adjust the flow rate and pressure in real-time, optimizing the fill speed while maintaining safety parameters.
Throughout the process, multiple sensors continuously monitor temperature, pressure, and flow rate. If any anomalies are detected, the system can immediately halt the fueling process to prevent potential issues.
Completion and disconnection
As the vehicle's tank approaches full capacity, the fueling rate gradually decreases to ensure a complete fill without overpressurization. Once fueling is complete, the system performs a final safety check before depressurizing the nozzle.
The driver can then disconnect the nozzle, concluding the refueling process. The entire operation typically takes between 3 to 5 minutes, comparable to refueling a conventional gasoline vehicle.
Compression and cooling systems in hydrogen fuel delivery
Multi-stage compression technology
At the heart of every hydrogen fueling station lies a sophisticated compression system. TSC's cutting-edge compressors utilize multi-stage compression technology to efficiently raise the hydrogen's pressure from storage levels to the high pressures required for vehicle fueling.
These compressors are designed to handle the unique properties of hydrogen, which can permeate through many materials. Special seals and materials are employed to prevent leakage and ensure long-term reliability.
Innovative cooling solutions
Cooling is a critical aspect of hydrogen fuel delivery. As hydrogen is compressed, it heats up significantly. Without proper cooling, this heat could damage vehicle fuel systems or prevent a complete fill.
CM Energy has developed advanced cooling systems that rapidly bring the temperature of the compressed hydrogen down to safe levels. These systems often employ a combination of heat exchangers and refrigeration units, carefully optimized for efficiency and rapid response.
Integrated control and monitoring
The compression and cooling systems are tightly integrated with the station's overall control architecture. Sophisticated software algorithms continuously adjust compressor output and cooling capacity based on real-time demand and environmental conditions.
This integration ensures that the station can respond quickly to varying fueling demands while maintaining optimal energy efficiency. It also allows for predictive maintenance, minimizing downtime and extending equipment life.
How do hydrogen stations maintain safety during refueling?
Robust safety protocols and equipment
Safety is paramount in hydrogen fueling station design and operation. TSC's stations incorporate multiple layers of safety measures to prevent and mitigate potential hazards. These include:
- Leak detection systems with sensitive hydrogen sensors
- Automatic shutdown mechanisms triggered by any abnormal conditions
- Flame detectors and fire suppression systems
- Explosion-proof electrical equipment
- Robust ventilation systems to prevent hydrogen accumulation
Intelligent dispensing systems
The hydrogen filling machine at the core of the fueling process is equipped with advanced safety features. These include:
- Breakaway couplings that automatically seal both ends of the fuel line if a vehicle drives away while still connected
- Pressure relief valves to prevent over-pressurization
- Grounding systems to eliminate static electricity risks
- Smart nozzles that won't allow fueling to begin unless properly connected
Continuous monitoring and fail-safe design
Throughout the refueling process, multiple parameters are continuously monitored in real-time. Any deviation from normal operating conditions triggers an immediate response, which may include slowing or stopping the fuel flow, venting excess pressure, or initiating a full system shutdown.
The entire station is designed with a fail-safe philosophy. In the event of a power failure or major malfunction, all systems default to their safest state, typically involving the isolation of hydrogen supplies and venting of any pressurized systems.
Regular maintenance and inspections
To ensure ongoing safe operation, hydrogen fueling stations undergo regular maintenance and inspections. These include:
- Daily system checks and calibrations
- Periodic testing of all safety systems
- Regular replacement of wear components like seals and filters
- Comprehensive annual inspections by qualified technicians
CM Energy's commitment to safety extends beyond equipment design to include comprehensive training programs for station operators and maintenance personnel.
Conclusion
Hydrogen fueling stations represent a significant advancement in clean energy infrastructure. Through innovative technologies in compression, cooling, and safety systems, these stations make hydrogen fuel cell vehicles a practical and efficient alternative to traditional combustion engines.
As the world transitions towards more sustainable energy solutions, the role of hydrogen fueling stations will only grow in importance. Their ability to quickly and safely refuel vehicles with zero-emission hydrogen fuel is a crucial component in the fight against climate change and air pollution.
The continuous improvements in hydrogen fueling technology, driven by companies like CM Energy, are making these stations more efficient, reliable, and cost-effective. As the network of hydrogen fueling stations expands, it paves the way for wider adoption of fuel cell vehicles, contributing to a cleaner and more sustainable transportation future.
If you're involved in offshore operations, environmental remediation, or any field requiring advanced energy solutions, consider how hydrogen technology could benefit your projects. CM Energy's TSC brand offers cutting-edge hydrogen fueling solutions tailored to diverse industrial applications. To learn more about our hydrogen fueling station technology or discuss how it can be integrated into your operations, please contact us at info.cn@cm-energy.com. Our team of experts is ready to help you navigate the exciting possibilities of hydrogen energy.
FAQ
1. How long does it take to refuel a hydrogen vehicle?
Refueling a hydrogen vehicle typically takes 3 to 5 minutes, comparable to refueling a conventional gasoline vehicle. This quick refueling time is one of the advantages of hydrogen fuel cell vehicles over battery electric vehicles, which often require longer charging times.
2. Are hydrogen fueling stations safe?
Yes, hydrogen fueling stations are designed with multiple safety features and undergo rigorous testing and regular inspections. They incorporate advanced leak detection systems, automatic shutoffs, and other safety measures to ensure safe operation. The safety record of hydrogen fueling stations has been excellent, with no significant incidents reported in public stations to date.
3. How does the cost of hydrogen fuel compare to gasoline?
Currently, the cost of hydrogen fuel is generally higher than gasoline on a per-mile basis. However, as production scales up and technology improves, the cost is expected to decrease. Many experts predict that hydrogen fuel will become cost-competitive with gasoline in the coming years, especially when considering the higher efficiency of fuel cell vehicles and potential carbon pricing mechanisms.
