Telescope Boom Crane Design Features for Marine Safety

When offshore operations demand precision lifting in confined deck spaces and unpredictable sea conditions, the telescope boom crane stands out as a purpose-built solution. TSC's pedestal-mounted, slew-bearing telescope boom cranes integrate hydraulic luffing cylinders with telescoping boom extension, delivering a broad working radius for both external lifts over vessel sides and internal deck operations. Engineered for offshore wind installation vessels, drilling platforms, and marine engineering ships, these cranes combine structural resilience with intelligent safety systems — making them a preferred choice for demanding marine hoisting requirements worldwide.

Understanding Telescope Boom Cranes in Marine Applications

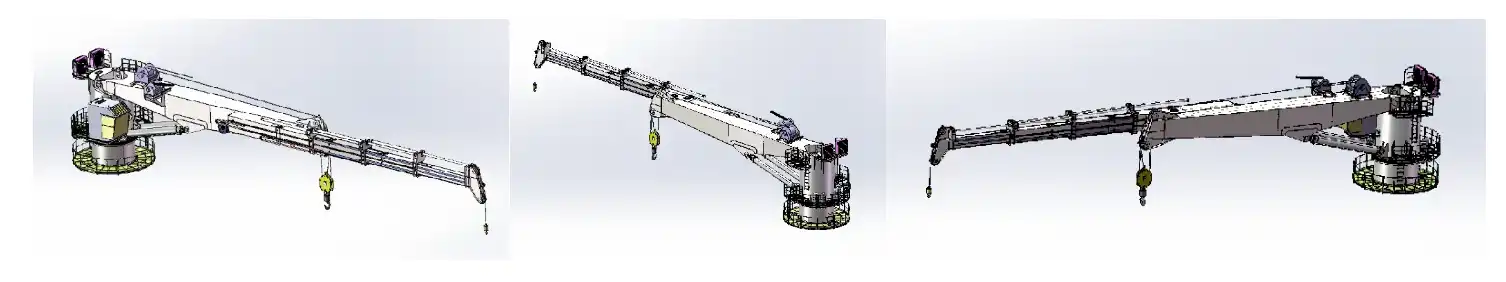

When there isn't much room, things are always moving, and the cost of failure is too high, marine lifting equipment has to work reliably. The Telescope Boom Crane has a base that is fixed on a pedestal, an accurate slew bearing that allows it to rotate 360 degrees, and a telescoping boom that is moved by hydraulic cylinders for both luffing and radial extension.

How the Telescoping Mechanism Works at Sea

The Telescope Boom Crane's active radius changes all the time, unlike a lattice boom that stays the same length. Internal hydraulic cylinders can extend or retract the boom sections in a straight line. This lets the crane fold up small while the ship is in transit, which lowers its center of gravity and lowers the wind load. When needed, it can be extended to its full working reach. This two-in-one feature is especially useful on offshore wind installation platforms, where deck space is shared by walkways, cable arrays, and turbine parts.

Key Applications Across Marine Vessel Types

Many types of offshore and marine engineering work are done with the Telescope Boom Crane. These cranes are used to move supplies and equipment between ships at offshore oil and gas sites. They are used for subsea intervention support by marine engineering ships. Offshore wind installation and service operation vessels use them to move parts over the side, lift them for maintenance, and handle component handling. The Telescope Boom Crane is useful in all of these situations because it can do both internal deck lifts and external lifts over the ship's rail from a single pedestal-mounted unit.

Critical Design Features Enhancing Marine Safety

Marine-Specific Engineering for Dynamic Load and Corrosion Resistance

In a naval setting, operating a crane is very different from operating one on land. Saltwater rust, moving vessels, changing loads, and close scrutiny by regulators all make safety requirements more stringent. Here are the main safety and construction features of an offshore Telescope Boom Crane that makes it stand out:

• Box boom construction for shock absorption: The box-section boom shape spreads impact loads along the wall of the structure instead of putting all the stress at the weld points. This shape doesn't buckle under dynamic loading conditions like those that happen when a ship rolls or pitches.
• Ram cylinder luffing to prevent boom stall: This method gets rid of the mechanical dead zone that leads to boom stall at certain angles of operation. When placing loads close to people or sensitive equipment, it's important that the boom moves continuously and predictably.
• Low center of gravity design: The pedestal-mounted base of the Telescope Boom Crane keeps the crane's structural mass low on the vessel's hull, which makes the crane less likely to make the vessel unstable while it's working. This is especially important for smaller offshore wind service ships because the placement of the crane directly affects the trim.
• Hook parking device: A built-in hook parking mechanism stops the hook from moving out of control, which is also known as "overtopping." This is very dangerous for people and equipment on the deck when the crane is slewing or retracting the boom.
• Integrated load management and safety alarm systems: TSC's electrical control system combines alarm, load tracking, and anti-overload logic into a single interface. Operators get real-time updates on the status of the loads, which lowers the chance that they will go over the safe working limits when the sea conditions change.

All of these features work together to protect against the most common types of failure in offshore crane activities. The design theory puts proactive risk reduction ahead of reactive shutdown. This is very important when unplanned downtime on an offshore site has big effects on schedule and cost.

Maintenance and Safety Protocols for Marine Telescope Boom Cranes

When a Telescope Boom Crane is constantly used in the ocean, the extending surfaces, hydraulic seals, and painted steel parts wear out faster. It is not an option to do proactive maintenance; it is an operational baseline.

Corrosion Management and Surface Treatment

When saltwater gets into telescopic slide surfaces, they wear down faster than almost any other part. The best practice in the industry is to use C5-M marine-grade coating systems on the outside of the boom, with epoxy zinc-rich primers being applied until the film is the right thickness. Regular clearance checks are needed for telescoping wear pads, which are usually made from industrial plastics. When pad spacing goes beyond what the maker allows, metal-to-metal contact starts to happen between boom parts. This damages both the structure and the accuracy of the telescoping.

Hydraulic System Integrity Checks

The hydraulic systems that power the luffing and telescoping features must keep the oil clean according to international standards for fluid pollution. Pressure-holding tests on luffing cylinders make sure that internal seals aren't letting load-induced cylinder drift happen, which would let the boom move freely while the load is suspended. These checks should be in line with how often the classification society surveys and how often the crane maker says it should be serviced.

Operator Qualification and Sea State Assessment

Before every lift, marine crane operators have to check the weather. Decisions about safe working are based on wave height, vessel heading relative to swell, and deck motion data. IMO and flag state rules say that operators must show proof that they are qualified. CM Energy helps with this by offering technical training programs during the crane's installation and whenever asked for afterward.

Comparing Telescope Boom Cranes and Alternatives for Marine Safety

Structural Versatility and Operational Efficiency

When looking at deck crane choices for offshore and marine engineering ships, procurement professionals often compare the Telescope Boom Crane to alternatives like the lattice boom and the knuckle boom. Before committing to a specification, it's important to understand the structural and operational trade-offs of each type.

The lattice boom crane can lift a lot of weight over a large area, but it takes a long time to put together and take apart the boom when changing the reach, unlike a Telescope Boom Crane which offers faster adjustment. This lack of flexibility makes things more difficult to do on a working ship with strict operating plans. The knuckle boom crane is easy to store and can do repetitive pick-and-carry tasks well. However, its articulated geometry causes side-loading patterns that need to be carefully managed during over-the-side lifts in rough sea conditions.

The Telescope Boom Crane is unique because it can reach different heights without changing the length of the boom, it has a straight-line load path that is great for working with wire rope, and it folds up to take up less space on the deck when it's not in use. If an offshore wind installation platform or marine engineering vessel needs to change its crane configuration to meet different lift requirements for the same project, the Telescope Boom Crane is the only option. Lattice and knuckle boom configurations are not as flexible, and they take a lot longer to set up.

Procurement Guide: Choosing the Right Telescope Boom Crane for Marine Safety

Certification, Customization, and Lifecycle Value Considerations

Choosing a marine Telescope Boom Crane is a long-term investment in capital that is built into the schedule for building a ship. Usually, shipowners and yards make this choice during the planning process of the vessel. The crane specification is set in stone once the structural integration with the hull is complete.

Certification from a classification group is a must for entry. The Telescope Boom Cranes made by TSC have certifications from CCS, DNV, ABS, BV, and LR. These certifications cover the main flag states and operating regions that are important for offshore wind and marine engineering projects around the world. The API-2C approval adds to the design's reliability for use in offshore drilling and production platforms.

A crane manufacturer's ability to customize directly affects their ability to take part in a project. TSC customizes Telescope Boom Cranes to meet the needs of each customer, taking into account the pedestal shape, deck integration limits, and operating profiles that are unique to each vessel. Shorter delivery times are possible with modular design and standardized parts. This is a big plus when vessel construction schedules make it hard to get equipment. Optional active wave adjustment systems allow operations to continue in rougher seas, helping offshore wind repair ships work in the North Sea and other tough places. A design life of 25 years with regular operating data recording gives vessel owners the lifecycle confidence they need to properly model the total cost of ownership.

Conclusion

Offshore and marine engineering ships use the Telescope Boom Crane because it is structurally flexible, has built-in safety intelligence, and meets the approval standards that rule marine operations around the world. Its ability to go from a small stowed position to a long working reach without having to manually rearrange the boom makes it more useful in situations where space is limited on the deck. CM Energy's TSC brand has more than 350 deck cranes in use around the world and a history of making more than 180 self-elevating platforms. This gives B2B procurement teams the reliability they need when looking at lifting equipment for important offshore projects.

FAQ

1. Why does the telescope boom crane outperform other crane types for offshore marine safety?

For what reason does the Telescope Boom Crane work better than other types of cranes when it comes to sea safety? The Telescope Boom Crane's changeable reach feature means that the boom part doesn't have to be changed while it's in use, which protects people who are rearranging it. The pedestal-mounted design and low center of gravity of the vessel make it stable, and the integrated load management system protects against overloading all the time. These are all very important in offshore conditions that change quickly.

2. What certification standards apply to marine telescope boom cranes?

Design and production rules are set by major marine classification societies like DNV, ABS, BV, CCS, and LR. Offshore drilling and production platform cranes are the only ones that need API-2C approval. The procurement team should make sure that the crane provider can give all the design documents for the classification society to look over when the ship is approved.

3. How frequently should marine telescope boom cranes be inspected?

Before each lifting job, the operator should do a set of routine checks. Formal inspections happen at the same time every year for monthly surveys and every five years for special surveys, which is what the classification society requires. Each inspection starts with checking the telescoping wear pad clearance and the integrity of the hydraulic cylinder.

Reach CM Energy's Telescope Boom Crane Engineering Team

The TSC Telescope Boom Crane manufacturer team at CM Energy is ready to help you with your vessel project from the moment you give them the specs until they are put into service. With certificates from global classification societies and the ability to customize based on hundreds of deployed offshore cranes, CM Energy can build lifting solutions that are perfect for your project. You can email our engineering team at info.cn@cm-energy.com or go to cm-energy.com to get an advice, a catalog of our products, or detailed information.

References

1. American Bureau of Shipping (ABS). Rules for Building and Classing Offshore Installations. ABS, 2022.

2. Det Norske Veritas (DNV). DNV-ST-0378: Standard for Offshore and Platform Lifting Appliances. DNV, 2021.

3. International Maritime Organization (IMO). Code of Safe Working Practices for Merchant Seafarers. IMO, 2020.

4. American Petroleum Institute (API). API Specification 2C: Specification for Offshore Pedestal-Mounted Cranes. API, 2022.

5. Bureau Veritas (BV). NR 526: Rules for the Design, Construction and Classification of Lifting Appliances. Bureau Veritas, 2021.

6. European Committee for Standardization. EN 13001: Crane Safety — General Design. CEN, 2021.
