How Telescope Boom Cranes Improve Offshore Lifting Efficiency?
Offshore wind farm installations and marine engineering projects face mounting pressure to complete lifting operations faster, safer, and more cost-effectively. Telescope boom cranes revolutionize offshore lifting efficiency by combining compact deck footprints with exceptional reach adaptability. Unlike fixed-length alternatives, these hydraulic lifting systems feature tubular boom sections that extend and retract dynamically, allowing operators to adjust working radius without repositioning the entire vessel. This capability directly addresses the spatial constraints and operational downtime challenges plaguing offshore projects, where every hour of vessel standby costs thousands of dollars. By eliminating lengthy setup procedures and enabling rapid configuration changes, telescoping cranes deliver measurable productivity gains that justify their adoption across wind turbine installation platforms, service operation vessels, and heavy-lift engineering ships.
Understanding Telescope Boom Cranes and Their Role in Offshore Lifting
What Makes Telescoping Cranes Essential for Marine Operations

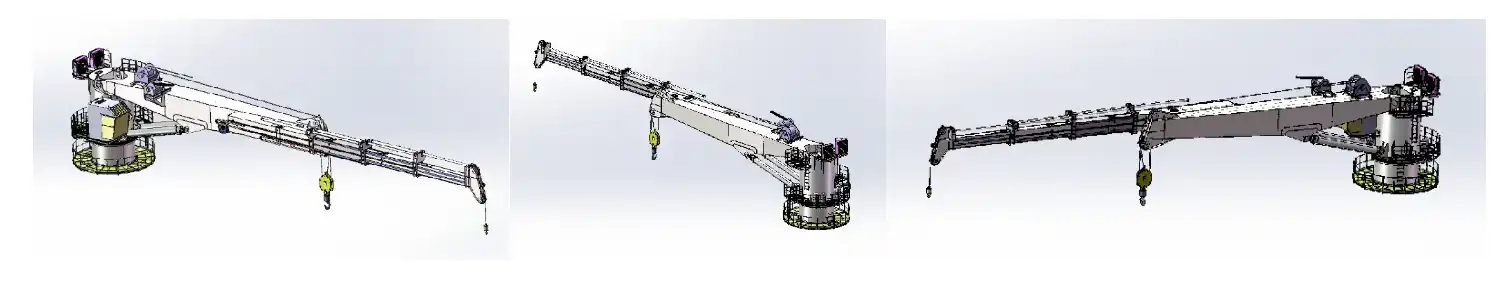

For modern marine projects, moving equipment needs to be both strong and smart about where it is used. There is a special type of pedestal-mounted, slew-bearing lifting system called TSC Telescope Boom Cranes that was made to work in harsh sea settings. The main part of the design is a boom system made up of stacked tubular sections that move inside each other with the help of hydraulic cylinders. Because it has a telescoping system, the crane can go from a small folded position when the ship is moving to full extension when it is actively lifting. This is very useful when deck space is limited.
The dual-action design of these systems makes them very useful in a wide range of situations. The luffing function lets you change the vertical angle by moving the ram cylinder, and the simultaneous extension of the boom lets you change the horizontal reach. All of these moves work together to make a three-dimensional working space that can handle both external lifts over the sides of the ship and internal deck shifts. Classification societies like DNV, ABS, BV, and CCS have approved these designs, showing that they meet strict safety standards for offshore environments.
Core Components Driving Performance
What makes professional-grade Telescope Boom Cranes different from cheaper ones? The engineering is based on making sure that several important subsystems work together. Built around a high-torque bearing and planetary gearbox, the slewing system allows for continuous movement in all directions without any wire interference. The box boom is made of high-yield strength steel sections that are shaped in a way that keeps them from buckling and twisting under the side loads that happen when the sea is moving.
Integrated electrohydraulic power packs give you precise control over multiple movements at the same time. The TSC integrated electricity control system manages loads and sets off safety alarms. It keeps an eye on working factors against their rated capacity limits all the time. When conditions get close to critical levels, the system automatically stops moves that are making things worse while still letting safe corrective actions happen. This is a very important feature when wave motion creates unpredictable loading situations.
Identifying Offshore Lifting Challenges and How Telescope Boom Cranes Address Them
Space Constraints on Offshore Platforms
Offshore wind installation boats and jack-up platforms have to work in very small spaces, which is hard for standard cranes to handle. Fixed-boom designs need a lot of deck space for both the crane and the areas where people can move around during slewing. This problem is worse on specialized ships, where deck space has to be used for more than one thing, like storing equipment, housing workers, and operational work areas.
Telescope Boom Cranes get around this problem because they take up less space when not in use. When the boom is pulled back, it doesn't take up much horizontal room. This lowers the ship's center of gravity during travel and frees up deck space for other uses. Because the telescope can only extend outward when it's needed, operators can keep the vessel's profile small without losing its lifting power. Projects that need to move parts from supply ships benefit the most because the crane can extend exactly to the needed radius without having to move the ship.
Environmental Hazards and Safety Integration
Marine lifting activities have to deal with corrosive salt air, uncertain wind loads, and moving ships, all of which put a lot of stress on the dependability of the tools used. Most conventional cranes need a lot of time to set up and need to be watched all the time to make sure they are working safely. Telescope Boom Cranes are made with features that are specifically made to deal with these environmental problems.
The ram cylinder luffing device gets rid of the boom stopping problems that happen with cable-based systems when the wind blows. Wave-induced vertical motion can be stopped by active heave compensation options, which keep the load's position stable even in moderate sea states. Marine-grade coating systems are used in surface treatment methods to protect important wear areas from corrosion. This extends the time between maintenance visits. When it's stormy outside, the hook parking device keeps the trailer from flipping over, and regular operational data recording creates audit trails for safety compliance checks.
Operational Efficiency Gains
Offshore jobs that need to be done quickly measure output in vessel day rates that can be very high. Telescope Boom Cranes make operations more efficient in a number of ways that can be measured. When you choose a lattice boom, setup times drop from hours to minutes because the crane can go from being stopped to being ready to work in just minutes without having to put together any extra parts.
When compared to fully custom fabrications, the modular design with standard parts shortens delivery cycles. This makes it easier to match the supply of tools with tight project deadlines. The continuous radius adjustment feature gets rid of the need for stop-and-start cycles that come with moving vessels or rearranging fixed-length booms while operations are still going on. These time savings add up over the course of a project, which directly leads to lower vessel charter costs and faster revenue generation for offshore developers.
Comparing Telescope Boom Cranes with Other Crane Types for Offshore Use
Structural and Functional Contrasts
To make decisions about buying offshore lifting equipment, you need to know how different types of cranes work in marine environments. Lattice boom cranes have amazing lifting powers and reach, but they are hard to put together and need a lot of room on the deck. Their sectional design makes upkeep harder, especially when it comes to pinned connections wearing out in corrosive conditions.
When folded up, hydraulic knuckle boom cranes are very small and easy to store, but they lose some of their lifting power and accuracy when the radius is extended. The design of the flexible joint adds more places where things can go wrong and makes load path analysis harder to do during approval. Truck-mounted cranes are flexible on land, but they need to be specially modified to be installed on a boat, and they don't have the built-in marine controls that are needed for changing sea conditions.
For offshore uses, Telescope Boom Cranes strike a sensible balance. Their one-piece boom design means that it doesn't need to be put together, and the structure stays strong thanks to continuous load routes. The hydraulic extension system lets you make smooth, controlled changes to the reach even when the machine is loaded. This makes positioning parts more precise. This flexibility makes operations easier for ship operators who have to handle multiple lifting tasks with different radii, compared to other options that need the boom to be rearranged between lifts.
Cost-Efficiency Across Operational Lifecycle
Smart buying includes more than just the starting cost of the goods. It also includes the total cost of ownership. Telescope Boom Cranes are more cost-effective in a number of ways over their entire lifecycle. Maintenance is still easier than with grid options because there are fewer structural links, which means fewer places to check and easier service processes. The combined power pack design combines hydraulic systems, making it easier to find extra parts and follow the right steps for fixing problems.
Gains in operational efficiency pay off in real ways. When setup times are cut, vessels are used more often, which lets contractors finish more lifts during a hire period. Because a single crane configuration can handle a variety of lifting situations, there is no need to switch out equipment between phases of a project. All of these things make it easier to figure out the return on investment, especially for ship owners who are in charge of long-term overseas growth projects.
Key Considerations for Procuring Telescope Boom Cranes for Offshore Operations
Matching Equipment Specifications to Project Requirements
Thorough operating research is the first step in buying a crane that works. Technical leaders and project managers need to look at a number of important factors to make sure that the tools will work with each other. Load capacity standards are more than just weight numbers. They also include dynamic loading factors that are caused by things like wind and the movement of the vessel. The crane's rated capacity at different boom lengths and luffing angles tells you if it can handle project-specific parts within the required working envelope.
Reach needs are directly linked to how the ship is laid out and how it is lifted. Moving parts of wind turbines might need to go beyond the side rails of the ship to connect with supply ships, and moving cargo on the deck needs different geometric arrangements. The range of boom lengths—from small storage to full extension—must work with both operational needs and restrictions on movement.
Certification and Compliance Requirements
As a result, classification groups and flag state officials keep a close eye on offshore equipment. TSC Telescope Boom Cranes meet the standards of several certification bodies, such as CCS, DNV, ABS, BV, and LR. This makes it easier for ships to be registered in countries around the world. API-2C certification makes sure that the design meets safety standards for the oil and gas industry and is only used for offshore platforms.
Along with the initial certification, the procurement specifications should include documentation for ongoing compliance. Recording operating data on a regular basis helps with planning upkeep and legal audits. The crane's design life, which is usually given in decades, needs to match up with how the ship will be used and the projects that are planned. Equipment that makes simple survey processes easier cuts down on downtime during required checks.
Supplier Evaluation and Partnership Considerations
When picking a crane supplier, you need to look at more than just the product specs. How well the supplier can make things has a direct effect on how reliable the delivery is. For example, does the supplier keep their DNV welding plant certification and ISO quality systems up to date? Factory acceptance testing before shipment is a very important way to make sure that equipment meets the terms of the contract before it has to be moved to a foreign country, which can be very expensive.
Procurement workers can trust CM Energy's track record in making marine equipment, which includes faith in both the quality of the products and the way the projects are carried out. With more than 350 deck cranes in use around the world and more than 180 offshore platforms using their lifting systems, the company shows that it can perform well in a wide range of operational settings. Their trained engineering team has a lot of experience customizing crane setups to meet the needs of each vessel. This is made possible by manufacturing methods that balance customization with meeting delivery deadlines.
Best Practices for Operating and Maintaining Telescope Boom Cranes Offshore
Safety Protocols and Operational Training
The ability of the equipment doesn't mean much if it can't be used correctly. To operate Telescope Boom Cranes offshore, you need special training that covers both normal lifting methods and problems that only happen at sea. As part of their training, operators should be able to read load charts for a variety of boom configurations and know how the different telescoping positions affect the rated capacities. Dynamic loading awareness helps workers get ready for the extra forces that come from moving the ship and the weather.
Safety checks done before a task are the basis of preventing accidents. Before starting lifting activities, daily inspections should make sure that the hydraulic system is working properly, that the controls are responding, and that the safety devices are working. The load management features of the TSC integrated control system allow for real-time monitoring, but operators need to know how to read these indicators and know what to do when operational limits are being approached.
Proactive Maintenance Strategies
The harsh conditions offshore speed up the wear on equipment because of the salt air, constant motion, and heavy task cycles. Preventive maintenance plans that are specifically made for Telescope Boom Cranes help make them more available for use. Regular checks are needed to make sure the hydraulic system is clean; dirty fluid speeds up the wear on cylinder seals and causes valves to stop working. Fluid analysis and cleaning of the filter system on a regular basis keep small problems from getting worse and causing the system to stop working.
The sliding wear surfaces on the telescoping boom need extra care. Checking the wear pads on a regular basis makes sure that there is enough space between the boom sections to keep metal from rubbing against metal, which can damage the sides of the structure. Surface coating condition assessments find corrosion early on, before it weakens the structure. The modular design method makes it easier to change parts, so repair teams can swap out standard parts without having to wait a long time for fabrication to finish.
Predictive maintenance technologies make regular inspection schedules better. Vibration analysis can find worn-out bearings before they break, and thermal imaging can find problems with electrical connections that are starting to show up in control systems. Manufacturer service agreements give you access to technical support and fast parts shipments, which are very useful when you need to fix problems that come up out of the blue in faraway offshore locations.
Conclusion
Offshore lifting is more efficient when the powers of the tools are matched with the facts of the job. This alignment is provided by Telescope Boom Cranes, which have small footprints, can be set up quickly, and offer operating freedom that lowers vessel downtime. Their ability to change reach on the fly without moving ships gets rid of bottlenecks in the work flow and keeps precise load control even in rough sea conditions. The strong construction, built-in safety systems, and easy upkeep needs make it possible for the ship to work reliably for a long time in a variety of offshore situations. Buying these systems shows that you think strategically by putting lifecycle value over initial costs and making sure they have the operational capabilities to adapt to changing project needs in the growing offshore energy sector.
FAQ
1.What differentiates telescope boom cranes from lattice boom configurations?
The main difference is how the boom is built and how flexible it is to use. Lattice boom cranes use sectional assembly with pinned connections. They take a long time to set up and take up a lot of space on the deck, but they can carry heavy loads at fixed lengths. Telescope Boom Cranes use stacked tube pieces that extend hydraulically, letting the radius be changed instantly without taking the whole thing apart. This design greatly cuts down on setup time while maintaining structural integrity thru continuous load paths. This makes them better for tasks that need to change reaches often or have limited deck space.
2.How do I determine the appropriate crane capacity for offshore wind projects?
To choose the right capacity, you have to look at the weights of each component and make sure they are safe. You also have to take into account dynamic loading from things like wind and the movement of the vessel. Look at the load chart for the whole working area. As the boom extends and the luffing angle decreases, the capacity goes down. Think about stages of the project that might come later and involve bigger parts. Talking to experienced sellers is a good way to make sure that the crane's specs are right for the job and that they meet the requirements of the classification society for lifting operations at sea.
3.Can telescoping cranes operate effectively in high sea states?
Offshore-configured Telescope Boom Cranes have features that are designed to work in changing conditions. Active heave adjustment systems stop wave-induced vertical movement and keep the load in a stable position. Side-loading from the ship falling is handled by strengthened slewing systems. But there are operational limits. Sea state restrictions depend on how the equipment is set up and how the vessel is built. Most offshore operations set weather windows based on thresholds for wave height and period that balance the need to be productive with the need to be safe.
Partner with a Proven Telescope Boom Crane Manufacturer
CM Energy brings decades of experience with marine lifting equipment to your projects at sea. Our TSC brand Telescope Boom Cranes are known all over the world because they have been used on more than 350 ships and 180 offshore platforms. We know how hard it is to do marine engineering and offshore wind installations technically because we've made answers for the toughest problems in the business. Our certified engineering team works directly with project stakeholders to make sure that equipment configurations exactly match operational needs. They do this from the creation of the initial specifications all the way thru factory acceptance testing and onboard commissioning.
In addition to selling equipment, our world service network offers full lifecycle assistance. Logistics for spare parts, help with technical problems, and planning for regular upkeep all help you get the most use out of your tools. Our application engineers can help you make decisions about cranes for new ships or look at retrofit options for platforms that are already in use. Their advice is based on objective data from real-world operations. Get in touch with us at info.cn@cm-energy.com to talk about your unique lifting needs and find out how our Telescope Boom Crane options can help your offshore operations run more smoothly.
