Hydrogen fueling stations are critical infrastructures that enable the refilling of hydrogen fuel cell electric vehicles (FCEVs) and industrial fleets to support sustainable transport. What Is Hydrogen Fueling Station and How It Powers the Future? Simply put, these stations provide a clean, efficient, and safe method to supply hydrogen, paving the way toward a zero-emissions economy. Their role in deploying green technology advances the hydrogen economy and accelerates decarbonization across multiple sectors.
What Is Hydrogen Fueling Station?
A hydrogen fueling station is a specialized facility designed to store, compress, and dispense hydrogen fuel into vehicles or equipment powered by fuel cells. Unlike conventional gas stations, these hubs handle highly pressurized, clean hydrogen gas, capable of refueling vehicles within minutes. Core components include skid-mounted compressors, hydrogen dispensers equipped with precise metering, sequence control modules, and gas discharge columns—all working in harmony to ensure safety and efficiency while meeting demands from 500 to 3000 kilograms over 12 hours at pressures up to 35 megapascals.
Hydrogen fueling stations serve as integral pillars of energy infrastructure, supporting various sectors such as highway hydrogen refueling corridors, urban FCEV networks, mining haul truck depots, and port-based straddle carrier refueling systems. They enable sustainable transport, leveraging alternative fuels to reduce the environmental impact associated with fossil fuel dependence.
The Problem It Solves and The Need It Fulfills
The global energy transition seeks alternatives to carbon-intensive fuels. Internal combustion engines release harmful emissions contributing to climate change, air pollution, and public health risks. Hydrogen fueling stations address these challenges by supporting fuel cell vehicles that emit only water vapor, fostering a carbon-neutral future.
As hydrogen vehicles grow in number across urban areas and industrial parks, infrastructure gaps hinder widespread adoption. These stations bridge the divide by delivering reliable hydrogen supply chains and facilitating rapid, safe refueling. For industries such as mining and port logistics, hydrogen depots reduce dependency on diesel fleets, cutting emissions in critical heavy-duty applications.
Moreover, for offshore operations and warehouse forklift hubs, hydrogen stations deliver clean energy directly to captive fleets. This equipment is pivotal in creating sustainable, low-emission ecosystems where conventional electrification may be limited by energy storage or grid capacity.
Core Features & Functionality Deep Dive
At the heart of an advanced hydrogen fueling station lies a sophisticated system of carefully engineered equipment designed for optimal performance, safety, and efficiency. Each component is purpose-built to meet the unique challenges of hydrogen fueling, providing both reliability and high throughput.

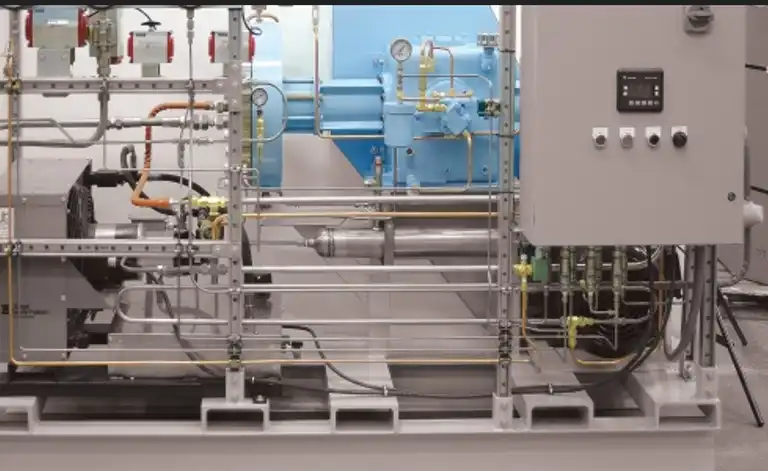

Skid-Mounted Compressor for Efficiency and Safety
The station's skid-mounted compressor is equipped with a PDC diaphragm compressor head, ensuring zero leakage and zero pollution. This design enhances fuel efficiency by minimizing maintenance needs and delivering consistent hydrogen flow to meet variable fueling demands. The compressor's reliability is key for maintaining uninterrupted service, especially in high-demand environments.
Dual Fueling Guns for Fast Refueling
The hydrogen dispenser is designed for controlled, fast refueling with dual fueling guns that operate through a single metering system. This feature significantly increases fueling speed, essential for high-traffic stations.
Sequence Control for Safe and Efficient Filling
Sequence control modules are used to manage the fueling process, ensuring safe and controlled pressure levels across high, medium, and low-pressure cylinders. This automation not only maintains consistent fuel supply but also prevents dangerous operational conditions, coordinating compressor activity and hydrogen extraction with precision.
Safe Unloading of High-Pressure Hydrogen
Gas discharge columns are a critical feature of the fueling station, facilitating the safe unloading of high-pressure hydrogen from transport trailers into the station's storage vessels. These columns are designed to meet stringent safety standards, ensuring that hydrogen is transferred without risk of leaks or accidents.
These innovative components work seamlessly to ensure that hydrogen fueling stations provide reliable, fast, and safe service for both commercial and industrial users.
Under the Hood: Technology Explained
The technology powering hydrogen fueling stations hinges on advanced materials science and mechanical engineering. The PDC hydrogen compressor features a three-layer metal diaphragm system, ensuring the hydrogen side remains segregated from hydraulic oil to prevent contamination. Reciprocating hydraulic motion compresses gaseous hydrogen efficiently, supporting high-pressure storage.
Dispensers employ metering devices and sensors to provide accurate fuel delivery and real-time monitoring. Electronic control systems follow rigorous safety protocols, integrating explosion-proof electrical components compliant with Ex DIICT4 standards. These safeguards make stations resilient to potential hazards while meeting regulatory requirements.
Sequence control modules use programmable logic to automate operations, optimizing fueling cycles to reduce wait times and energy consumption. Coupled with robust pipeline materials and valves manufactured from corrosion-resistant alloys, the entire fueling ecosystem maintains reliability even in harsh environments, such as offshore bases or mining sites.
Key Advantages of Hydrogen Fueling Stations
Hydrogen fueling stations offer numerous benefits that position them as essential enablers for a sustainable future. Key advantages include:
- Intelligent Safety Systems: Advanced controls prevent leaks and unsafe conditions, providing peace of mind for operators and users.
- Material Reliability: Use of high-grade pipelines, valves, and flowmeters ensures longevity and consistent performance.
- Zero Pollutant Emissions: The compressor and fuel dispensing processes operate without releasing greenhouse gases, supporting carbon-neutral goals.
- Fast Refueling: High-pressure capability allows vehicles and equipment to refuel quickly, increasing operational uptime.
- Customization & Scalability: Equipment packages can meet varied demand scales, from 500 to 3000 kilograms per 12 hours at pressures up to 35 MPa.
- Sector Versatility: Adaptable to urban networks, highway corridors, industrial fleets, ports, and offshore supply bases.
These advantages align with decarbonization efforts in transportation and industry, emphasizing fuel efficiency and environmental stewardship.
Potential Limitations & Considerations
While hydrogen fueling stations play a transformative role, certain challenges merit attention. Initial capital costs can be significant, given the complexity of high-pressure systems and safety mechanisms. Site preparation, including pipeline and electrical infrastructure, requires careful planning.
Hydrogen's storage and transport safety demand rigorous standards and operator training to manage risks effectively. Additionally, hydrogen production methods influence the overall environmental footprint; "green hydrogen" derived from renewable energy is essential to maximize sustainability benefits.
The existing hydrogen supply chain infrastructure is still developing, which may impact station accessibility and fuel availability. Integrating fueling stations harmoniously with existing energy grids and community stakeholders demands thoughtful approaches to regulation and public acceptance.
Target Audience & Ideal Use Cases
Entities poised to benefit most from hydrogen fueling stations include:
- Highway Authorities and Infrastructure Developers: Establishing hydrogen refueling corridors to enable long-distance FCEV travel.
- Urban Transit Providers: Facilitating bus depots equipped with rapid-refueling systems to support green public transportation.
- Mining and Heavy Industry: Deploying haul truck hydrogen depots to lower carbon footprints in energy-intensive operations.
- Ports and Logistics: Integrating fueling stations for straddle carriers and captive industrial fleets promoting clean energy adoption.
- Warehouse and Distribution Centers: Utilizing forklift charging hubs powered by hydrogen for uninterrupted operations.
- Offshore Operations: Supporting offshore hydrogen supply bases critical for maritime decarbonization.
Businesses and governments advancing sustainable transport, environmental compliance, and energy transition objectives will find hydrogen fueling stations essential for future growth.
Conclusion & Future Outlook
Hydrogen fueling stations represent a cornerstone technology enabling a shift toward clean energy and sustainable transport. They combine advanced engineering, safety innovations, and flexible capacity to meet diverse market needs. As the hydrogen economy expands, these stations will play a vital role in reducing emissions and driving automotive innovation. Continued breakthroughs in hydrogen production and storage will further enhance their impact, positioning them as pivotal infrastructure in the global energy transition.
Frequently Asked Questions
Q1: How safe are hydrogen fueling stations?
A: Modern hydrogen fueling stations incorporate intelligent safety controls, explosion-proof components, and high-quality materials that greatly reduce the risk of leaks or accidents. Strict regulatory standards and continuous monitoring ensure safe operation.
Q2: How does hydrogen fueling compare to electric vehicle charging?
A: Hydrogen fueling offers much faster refueling times, often under five minutes, compared to potentially hours of electric charging. This makes hydrogen well-suited for heavy-duty, commercial, and long-range applications.
Q3: What is the typical fueling pressure at hydrogen stations?
A: Stations can dispense hydrogen at pressures up to 35 MPa (megapascals), facilitating quick and efficient refueling of fuel cell vehicles operating at various pressure requirements.
Q4: Can hydrogen fueling stations be customized?
A: Yes. Equipment packages can be tailored based on demand, accommodating a wide range of applications including buses, industrial fleets, and offshore bases.
Q5: What industries are adopting hydrogen fueling stations most rapidly?
A: Transportation sectors such as urban transit, highway freight, mining, ports, and distribution warehouses utilize hydrogen fueling infrastructure to meet sustainability goals and reduce emissions.
Q6: How does CM Energy stand out in hydrogen fueling solutions?
A: CM Energy excels through patented technology, reliable core equipment like PDC compressors, and comprehensive EPC services that ensure safe, efficient, and scalable hydrogen refueling operations.
Where to Buy Hydrogen Fueling Station
To explore customized hydrogen fueling station solutions tailored for versatile applications including highway corridors, urban networks, mining depots, and offshore bases, consider CM Energy's offerings. As a leading Hydrogen Fueling Station supplier, their expertise in delivering intelligent, high-efficiency equipment packages backed by over 159 patents makes them a trusted partner in green technology deployment. With a strong focus on sustainability and innovation, CM Energy is dedicated to advancing hydrogen infrastructure. Please contact us at info.cn@cm-energy.com for detailed inquiries.
