Hydrogen Fueling Station
Based on core equipment of hydrogen fueling station, including skid-mounted compressor, gas discharge column, sequence control module, hydrogen dispenser and HRS control system, the company can provided customized equipment package and EPC services of hydrogen refueling station. Cater to customized demand of 500~3000Kg/12h@12.5MPa, up to 35MPa.
Why Choose Us?
1. The hydrogen fueling is intelligent to avoid triggering potential safety hazards;
2. All pipelines, valves, joints and flowmeters are made of highly reliable materials.
3. Skid-mounted compressor based on PDC diaphragm compressor head with zero pollution, zero leakage, and high efficiency.
Product Parameters
|
No. |
Item |
Specification |
|
1 |
Fueling Gun Type |
TK16、TK25 |
|
2 |
Explosion-Proof Level |
Ex DIICT4 |
|
3 |
Protection Grade |
IP55 |
|
4 |
Environmental Temperature |
-25℃~55℃ |
|
5 |
Max Filling Pressure |
35MPa |
|
6 |
Max Flow Rate Per Fueling Gun |
0~3.6kg/minute |
|
7 |
Fueling Mode |
Dual guns with single meter |
Product Details

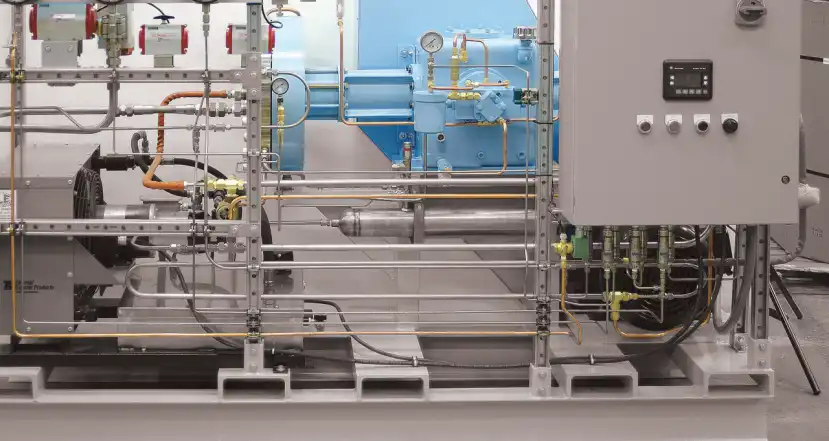

1. PDC Hydrogen Compressor
The hydrogen compression system consists of a hydrogen side die assembly, a three-layer metal diaphragm group and a compressor suction and exhaust valve. After the hydraulic oil is pumped to the oil side of the diaphragm group, the reciprocating movement makes the hydraulic oil entering the oil side of the membrane head push the diaphragm group to move to the hydrogen side of the membrane head, and then the volume of the compression chamber on the hydrogen side of the membrane head changes, and the compressed hydrogen flows into the compressor through the suction and exhaust valves of the compressor.

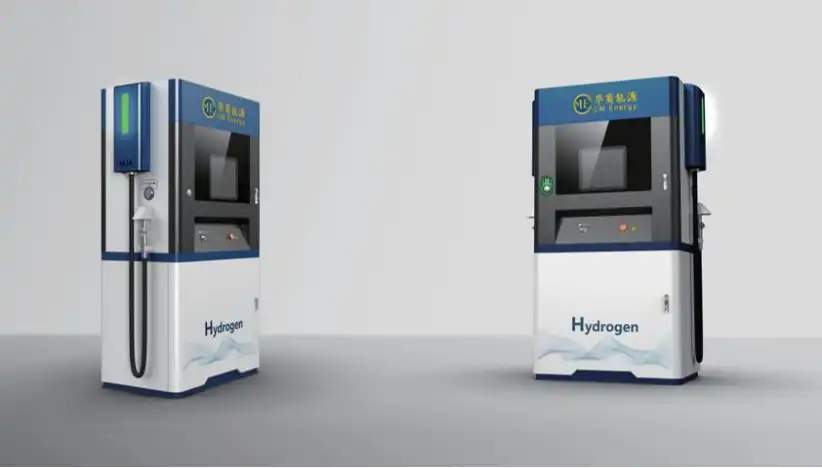

2. Hydrogen Dispenser
Hydrogen dispenser is a device that safely fueling high-pressure hydrogen from cylinder assemblies storage for gaseous hydrogen and tube trailers for gaseous hydrogen and compressors to gaseous hydrogen storage vessel of fuel cell vehicles, including high-pressure pipelines, valves, fueling guns, hydrogen metering, pricing displays, etc.
3. Sequence Control Module
The 45MPa sequence control module is used to control the fueling sequence of the compressor for the high, medium and low pressure cylinders, and at the same time control the hydrogen extraction sequence from the high, medium and low pressure cylinder assemblies storage for gaseous hydrogen.
4. Gas discharge column
A discharge column is a device that safely unloads high-pressure gaseous hydrogen from tube trailers to a hydrogen fueling station.
QUALITY CONTROL
Installation
1. Installation and fixation of frames and equipment
2. Connection and fixation of hydrogen pipeline and flange
3. Connection and fixation of pneumatic pipelines
4. Inspection and debugging of strong electrical wiring and weak electrical wiring
5. Pressure test
For more product information about Hydrogen Fueling Station, please leave a message below.
