Key Components of Centrifugal Pumps in Oil Extraction
The effectiveness of centrifugal pumps in oilfield applications stems from their carefully designed components. Each part plays a specific role in ensuring efficient fluid transfer and reliable operation under demanding conditions.
Impeller: The Heart of the Pump
The impeller is the core component of a centrifugal pump. It's a rotating disc with vanes that impart energy to the fluid. As the impeller spins, it creates centrifugal force, pushing fluid outward and increasing its velocity. In oil extraction, impellers are often designed to handle abrasive particles and viscous fluids, ensuring durability and performance.
Casing: Guiding the Flow
The pump casing surrounds the impeller and directs the fluid flow. It's shaped to convert the velocity energy of the fluid into pressure energy. In oilfield pumps, casings are typically made of materials resistant to corrosion and erosion, such as hard iron or high chrome alloys, to withstand the harsh environment.
Shaft and Bearings: Ensuring Smooth Operation
The pump shaft connects the impeller to the drive system and is supported by bearings. In oil extraction applications, shafts are often made of high-strength alloy steel to handle the high loads and potential misalignment. Robust bearings are crucial for maintaining proper shaft alignment and reducing vibration, which is essential for pump longevity in continuous operation.
Seals: Preventing Leakage
Sealing systems in centrifugal pumps used for oil extraction are designed to prevent fluid leakage and contamination. Mechanical seals or packed glands are commonly used, depending on the specific application and fluid characteristics. These components are critical for maintaining pump efficiency and environmental safety in oilfield operations.
Fluid Dynamics: The Science Behind Centrifugal Force
The operation of centrifugal pumps in oilfield applications is grounded in the principles of fluid dynamics, particularly the concept of centrifugal force. Understanding these principles is key to optimizing pump performance and efficiency in oil extraction processes.
Centrifugal Force in Action
Centrifugal force is the apparent outward force that acts on a body moving in a circular path. In a centrifugal pump, this force is harnessed to move fluid through the system. As the impeller rotates, it imparts kinetic energy to the fluid, causing it to move radially outward from the center of rotation. This motion creates a low-pressure area at the eye of the impeller, drawing more fluid into the pump.
Pressure Differential and Flow
The centrifugal action creates a pressure differential between the inlet (suction) and outlet (discharge) of the pump. This pressure difference is what drives the fluid flow. In oilfield applications, where pumps often need to overcome significant head pressures, the design of the impeller and casing is crucial in generating the required pressure differential for efficient fluid transfer.
Velocity and Pressure Conversion
As fluid moves through the pump, its velocity increases due to the impeller's rotation. This high-velocity fluid then enters the pump casing, where the kinetic energy is converted into pressure energy. The spiral shape of the casing, often referred to as the volute, is designed to facilitate this conversion efficiently. In oil extraction, where maintaining pressure is crucial, this conversion process is carefully optimized to meet specific operational requirements.
Fluid Characteristics and Pump Performance
The performance of centrifugal pumps in oilfield applications is significantly influenced by the characteristics of the fluids being pumped. Factors such as viscosity, density, and the presence of solids can affect pump efficiency and reliability. For instance, when handling crude oil with varying viscosities, pump designs may need to be adjusted to maintain optimal performance. Understanding these fluid dynamics helps in selecting the right pump configuration for specific oilfield tasks, ensuring efficient and reliable operation.
Comparing Centrifugal vs. Positive Displacement Pumps
In oilfield applications, both centrifugal and positive displacement pumps have their place, each with distinct advantages depending on the specific requirements of the operation. Understanding the differences between these pump types is crucial for selecting the most appropriate equipment for various oil extraction and processing tasks.
Operational Principles
Centrifugal pumps rely on rotational energy to create flow, using an impeller to increase fluid velocity and pressure. In contrast, positive displacement pumps operate by trapping a fixed volume of fluid and forcing it into the discharge pipe. This fundamental difference in operation leads to distinct performance characteristics in oilfield applications.
Flow Rate and Pressure Characteristics
Centrifugal pumps excel in applications requiring high flow rates but are less efficient at generating high pressures. They're ideal for tasks like transferring large volumes of produced water or circulating drilling fluids. Positive displacement pumps, on the other hand, can generate high pressures even at low flow rates, making them suitable for applications like well stimulation or chemical injection.
Handling of Viscous Fluids
In oilfield operations, the ability to handle viscous fluids is often crucial. Centrifugal pumps generally perform better with low-viscosity fluids, as high viscosity can significantly reduce their efficiency. Positive displacement pumps maintain their efficiency even with highly viscous fluids, making them preferable for handling heavy crude oils or certain types of drilling muds.
Adaptability to Changing Conditions
HCP centrifugal pumps offer greater flexibility in handling varying flow rates and can easily adjust to changes in system pressure. This adaptability is particularly valuable in oilfield applications where conditions can fluctuate. Positive displacement pumps, while less flexible in terms of flow rate adjustment, provide consistent output regardless of pressure changes, which can be advantageous in certain well maintenance operations.
Maintenance and Reliability
Centrifugal pumps often have fewer moving parts compared to positive displacement pumps, potentially leading to lower maintenance requirements and higher reliability in continuous operation. This characteristic makes them popular in many oilfield scenarios where minimal downtime is crucial. However, positive displacement pumps can be more tolerant of abrasive particles in the fluid, which is beneficial in some drilling and production environments.
Conclusion
Centrifugal pumps play a vital role in oilfield applications, offering efficient and reliable fluid handling solutions across various stages of oil extraction and processing. Their ability to manage high flow rates, adapt to changing conditions, and operate continuously makes them indispensable in many oilfield operations. While positive displacement pumps have their specific advantages, particularly in high-pressure and high-viscosity applications, centrifugal pumps remain a cornerstone of oilfield fluid management.
The key to maximizing the benefits of centrifugal pumps in oil extraction lies in understanding their operational principles, selecting the right pump for specific applications, and maintaining them properly. As the oil and gas industry continues to evolve, the role of centrifugal pumps is likely to grow, with ongoing innovations improving their efficiency, durability, and range of applications.
Call to Action

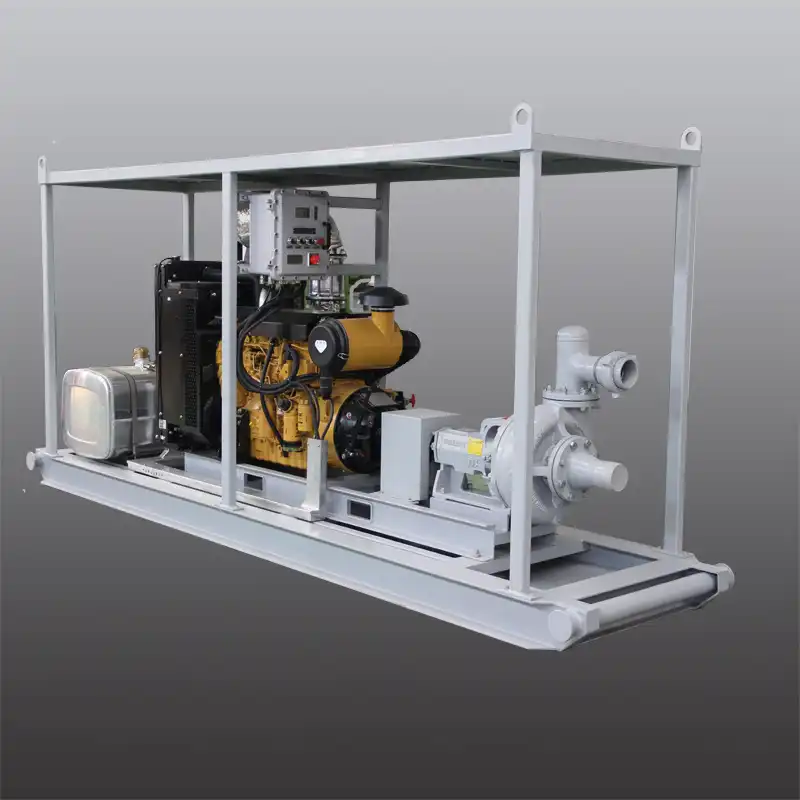

Are high-performance centrifugal pumps something you're interested in implementing to improve your oilfield operations? The oil and gas business has complex demands, and TSC brand provides innovative solutions to meet those demands. From transferring slurries to managing fluids during drilling, our HCP centrifugal pumps are up to the challenge of any oilfield application.
