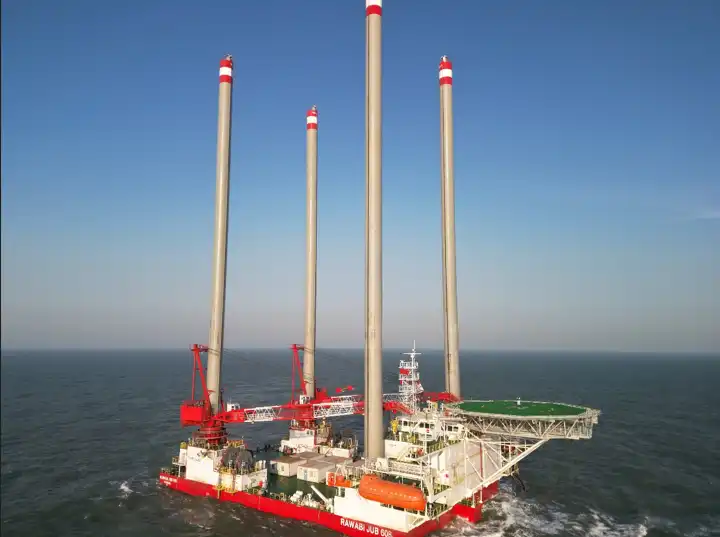

Key principles behind safety factors
Understanding the fundamental principles behind safety factors is essential for designing reliable and efficient jacking systems. These principles guide engineers in creating systems that can withstand the harsh offshore environment while maintaining optimal performance.
Load capacity and stress analysis
One of the primary considerations in jacking system design is load capacity. Engineers must accurately calculate the maximum loads the system will encounter during various operational scenarios. This includes static loads, dynamic loads from wave action, and potential overloading situations. Advanced stress analysis techniques, such as finite element analysis (FEA), are employed to identify potential weak points and ensure that all components can withstand the expected stresses.
Material selection and fatigue resistance
Choosing the right materials for jacking system components is crucial for long-term reliability. High-strength steels and alloys are often used to provide the necessary strength while minimizing weight. Additionally, designers must consider the fatigue properties of these materials, as jacking systems are subject to cyclic loading throughout their operational life. Proper material selection and treatment can significantly enhance the system's resistance to fatigue-induced failures.
Environmental considerations
The harsh marine environment poses unique challenges for jacking systems. Corrosion, temperature fluctuations, and marine growth can all impact the system's performance and longevity. Designers must incorporate appropriate protective measures, such as corrosion-resistant coatings and cathodic protection systems, to ensure the jacking system can withstand these environmental factors throughout its intended service life.
Common safety factor standards explained
Various industry standards and classification societies provide guidelines for safety factors in jacking system design. These standards help ensure consistency and reliability across different manufacturers and operators.
Classification society requirements
Organizations such as ABS (American Bureau of Shipping), DNV (Det Norske Veritas), and CCS (China Classification Society) set rigorous safety requirements for jacking systems used in offshore operations. These guidelines are designed to ensure the reliability and safety of the equipment under extreme conditions.
For example, ABS and DNV typically require a minimum safety factor for structural integrity, which may range from 1.5 to 2 times the maximum expected load. This ensures that the jacking system can withstand forces greater than the normal operational loads. Similarly, the safety factor for mechanical components such as gears and hydraulic systems is often set at 1.5 to 2.5, depending on the anticipated stress levels during operations.
For control systems, both ABS and DNV require fail-safe mechanisms and redundancy to ensure continued operation in the event of a system failure, with safety factors typically set around 1.2 to 1.5. Compliance with these standards is crucial for obtaining certification and ensuring the safe operation of offshore platforms and other heavy-lift equipment.
API and ISO standards
The American Petroleum Institute (API) and International Organization for Standardization (ISO) provide essential guidelines for the design and operation of offshore equipment, including jacking systems.
- Fatigue Analysis: This analysis assesses the system's ability to withstand repeated loading and unloading cycles, which is crucial in offshore environments where equipment may be exposed to constant stresses due to waves and wind. API standards typically require that jacking systems undergo rigorous fatigue testing to ensure their durability over extended periods.
- Load Testing: API and ISO guidelines mandate that jacking systems undergo load tests to verify their capacity to handle extreme weight and forces. These tests help ensure that the equipment can lift and support the intended loads without failure, especially during critical operations such as platform installation or maintenance.
- Maintenance Procedures: Proper maintenance procedures are outlined in both API and ISO standards to ensure the long-term reliability of jacking systems. These procedures include regular inspections, lubrication schedules, and replacement intervals for critical components.
Avoiding design errors with proper safety margins
Implementing appropriate safety margins is crucial for preventing design errors and ensuring the long-term reliability of jacking systems. By incorporating these margins, engineers can account for uncertainties and potential variations in operational conditions.
Overload protection mechanisms
Designing effective overload protection mechanisms is essential for preventing catastrophic failures in jacking systems. These may include mechanical fail-safes, such as shear pins or load-limiting devices, as well as electronic monitoring systems that can detect and respond to excessive loads. Proper implementation of these protection mechanisms helps safeguard the system and personnel during unexpected overload situations.
Redundancy and fail-safe design
Incorporating redundancy into critical components of the jacking system enhances overall reliability and safety. This may involve using multiple independent lifting units, backup power systems, or redundant control circuits. Additionally, fail-safe design principles ensure that the system defaults to a safe state in the event of a component failure or power loss, minimizing the risk of accidents or equipment damage.
Regular maintenance and inspection protocols
While not directly related to initial design, establishing comprehensive maintenance and inspection protocols is crucial for maintaining the intended safety margins throughout the jacking system's operational life. Regular inspections, non-destructive testing, and preventive maintenance help identify and address potential issues before they lead to failures or compromised safety factors.
Conclusion
In conclusion, the safety factors in jacking system design are multifaceted and critical for ensuring the reliability and longevity of offshore equipment. By carefully considering load capacities, material properties, environmental factors, and industry standards, engineers can create robust jacking systems that meet the demanding requirements of offshore operations. Implementing proper safety margins, overload protection mechanisms, and redundancy features further enhances the system's ability to withstand unexpected conditions and maintain safe operations. As the offshore industry continues to evolve, ongoing research and development in jacking system design will undoubtedly lead to even more advanced and reliable solutions for marine lifting applications.
FAQ
1. What is the typical safety factor used in jacking system design?
The typical safety factor for jacking systems varies depending on the specific component and application, but generally ranges from 1.5 to 3. Critical components may have higher safety factors, while less critical parts may have lower factors. It's important to consult relevant industry standards and classification society requirements for specific guidance.
2. How do environmental factors influence safety factor calculations in jacking system design?
Environmental factors such as wave loads, wind forces, and corrosive marine conditions significantly impact safety factor calculations. Engineers must account for these factors by incorporating additional margins to ensure the jacking system can withstand extreme weather events and long-term exposure to harsh marine environments.
3. What are the consequences of inadequate safety factors in jacking system design?
Inadequate safety factors can lead to catastrophic failures, equipment damage, and potential loss of life. Insufficient margins may result in premature fatigue failure, structural collapse under unexpected loads, or inability to withstand extreme environmental conditions. Proper safety factor implementation is crucial for preventing such dangerous scenarios and ensuring long-term operational safety.
