The Working Principle of Centrifugal Pumps in Onshore Drilling

At the core of fluid circulation systems, centrifugal pumps are indispensable in onshore drilling operations. These pumps drive the fluid through the drilling system by transferring energy from a revolving impeller to it through centrifugal force. Mud circulation, pressure maintenance, and debris removal are three of the most important functions of centrifugal pumps in onshore drilling. A functioning principle of a pump is the acceleration of fluid by means of a revolving impeller upon entry into the pump from the fluid's intake. The fluid is pushed outward and ejected under high pressure as its velocity increases. Wellbore stability, drill bit cooling, and cuttings transportation to the surface are all dependent on this continuous process's efficient fluid transmission. If you want your drilling operations to go off without a hitch, even in the most difficult onshore conditions, you need to master the nuances of centrifugal pump operation.

Impeller Design: Optimizing Fluid Transfer

The impeller is the heart of a centrifugal pump, and its design significantly influences the pump's performance in onshore drilling applications. Efficient impeller design is crucial for maximizing fluid transfer and ensuring optimal pump operation. In the context of onshore drilling, where pumps often handle abrasive fluids and varying viscosities, impeller design becomes even more critical.

Key Aspects of Impeller Design

Several factors contribute to effective impeller design for onshore drilling centrifugal pumps:

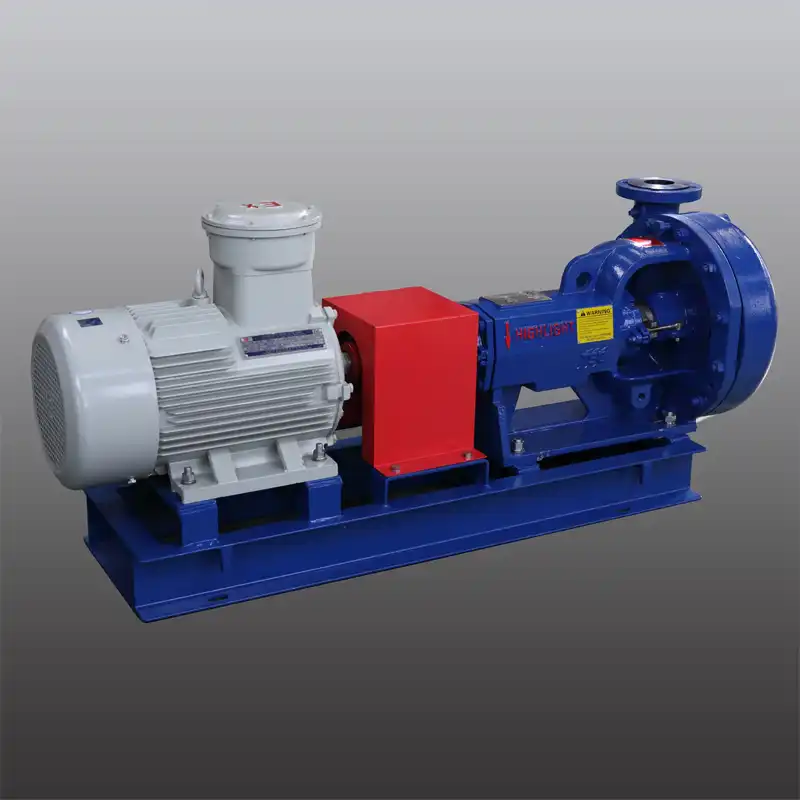

Vane geometry: The shape and curvature of impeller vanes affect fluid flow patterns and efficiency. Wide vane designs, like those in HCP-S type Centrifugal Pumps, improve fluid flow dynamics and allow for high fluid volume transfer.
Material selection: Impellers must withstand the abrasive nature of drilling fluids. Materials such as hard iron, high chrome, or stainless steel are often used to ensure durability and longevity.
Balance: Proper impeller balance is essential to minimize vibration and extend pump life, especially in high-speed applications.
Clearances: Optimal clearances between the impeller and pump casing are crucial for maintaining efficiency and preventing wear.

CM Energy's centrifugal pumps incorporate advanced impeller designs that address these key aspects, resulting in superior performance in onshore drilling operations. The open impeller design used in their pumps not only lowers axial thrust load but also improves overall pump efficiency.

Innovations in Impeller Technology

Recent advancements in impeller technology have further enhanced the capabilities of centrifugal pumps in onshore drilling:

Computational Fluid Dynamics (CFD): This technology allows for precise modeling of fluid behavior within the pump, leading to optimized impeller designs.
Wear-resistant coatings: Advanced coating technologies can significantly extend impeller life in abrasive environments.
Variable geometry impellers: These adaptable designs allow for optimal performance across a range of flow conditions, enhancing pump versatility.

By leveraging these innovations, manufacturers like TSC can produce centrifugal pumps that meet the demanding requirements of onshore drilling operations while maximizing efficiency and reliability.

Cavitation Prevention in High-Pressure Applications

Cavitation is a significant concern in centrifugal pumps, particularly in high-pressure applications common in onshore drilling. This phenomenon occurs when the local pressure in the fluid drops below its vapor pressure, leading to the formation and collapse of vapor bubbles. Cavitation can cause severe damage to pump components, reduce efficiency, and lead to premature pump failure.

Understanding Cavitation Mechanisms

In onshore drilling applications, several factors can contribute to cavitation:

Insufficient Net Positive Suction Head (NPSH): When the available NPSH is less than the required NPSH, cavitation becomes likely.
High fluid temperatures: Elevated temperatures increase the vapor pressure of the fluid, making cavitation more probable.
Entrained gases: The presence of gases in the drilling fluid can exacerbate cavitation issues.
Rapid pressure changes: Sudden pressure drops in the pump can induce cavitation.

Centrifugal pumps designed for onshore drilling must incorporate features to mitigate these cavitation risks effectively.

Strategies for Cavitation Prevention

Several strategies can be employed to prevent cavitation in high-pressure centrifugal pumps used in onshore drilling:

Proper pump selection: Choosing a pump with appropriate NPSH characteristics for the specific application is crucial.
Inducer design: Incorporating inducers can help maintain fluid pressure at the impeller inlet, reducing cavitation risk.
Suction piping optimization: Proper design of suction piping, including minimizing restrictions and maintaining appropriate pipe diameters, can help prevent cavitation.
Pressure control: Implementing pressure control systems to maintain consistent suction pressure can significantly reduce cavitation occurrence.
Material selection: Using cavitation-resistant materials for pump components can minimize damage if cavitation does occur.

CM Energy's HCP-S type Centrifugal Pumps incorporate several of these strategies to ensure reliable operation in high-pressure onshore drilling applications. Their robust design and material choices make them well-suited for handling the challenging conditions encountered in these environments.

Adapting to Varying Fluid Viscosities

In onshore drilling operations, centrifugal pumps must handle fluids with varying viscosities, from low-viscosity water-based muds to high-viscosity oil-based drilling fluids. The ability to adapt to these changing fluid properties is crucial for maintaining pump efficiency and reliability throughout the drilling process.

Impact of Fluid Viscosity on Pump Performance

Fluid viscosity significantly affects centrifugal pump performance in several ways:

Flow rate: Higher viscosity fluids typically result in reduced flow rates due to increased friction losses.
Power consumption: Pumping high-viscosity fluids generally requires more power, impacting energy efficiency.
Efficiency: Pump efficiency tends to decrease as fluid viscosity increases.
Pressure generation: The pump's ability to generate pressure can be affected by changes in fluid viscosity.

Understanding these impacts is essential for selecting and operating centrifugal pumps in onshore drilling applications where fluid properties can vary significantly.

Design Considerations for Viscosity Adaptation

To effectively handle varying fluid viscosities, centrifugal pumps for onshore drilling incorporate several design features:

Impeller design: Specialized impeller geometries can help maintain performance across a range of fluid viscosities.
Clearance adjustments: Some pumps allow for clearance adjustments to optimize performance for different fluid properties.
Variable speed drives: Incorporating variable speed drives enables pump speed adjustments to match changing fluid conditions.
Material selection: Choosing appropriate materials for pump components ensures durability when handling fluids of different viscosities.

TSC's centrifugal pumps, including the HCP-S series, are engineered to handle a wide range of fluid viscosities commonly encountered in onshore drilling. Their robust design and adaptability make them well-suited for the dynamic conditions of drilling operations.

Monitoring and Control Systems

To optimize pump performance when dealing with varying fluid viscosities, advanced monitoring and control systems are often employed:

Real-time viscosity monitoring: Continuous measurement of fluid viscosity allows for immediate pump adjustments.
Automated control systems: These systems can automatically adjust pump parameters based on fluid property changes.
Performance tracking: Monitoring pump performance over time can help identify trends and optimize operations for different fluid types.

By incorporating these systems, onshore drilling operations can ensure that their centrifugal pumps maintain optimal performance regardless of fluid viscosity variations.

Finally, onshore drilling centrifugal pumps function by accommodating different fluid viscosities, having an efficient impeller design, and preventing cavitation. All of these things work together to make the pump dependable, long-lasting, and efficient in harsh drilling conditions. Onshore drilling operations will become even more dependable and efficient as technology develops and centrifugal pumps get better.

For those seeking high-performance centrifugal pumps tailored to the demands of onshore drilling, CM Energy offers innovative solutions designed to excel in these challenging applications. Our HCP-S type Centrifugal Pumps are engineered to handle abrasive fluids, adapt to varying viscosities, and operate reliably in high-pressure environments. Whether you're involved in land-based shale gas operations, geothermal well drilling, or environmental remediation projects, our pumps are built to meet your specific needs. Experience the difference that cutting-edge pump technology can make in your onshore drilling operations. Contact us today at info.cn@cm-energy.com to learn more about how our centrifugal pumps can optimize your drilling processes and improve overall operational efficiency.
