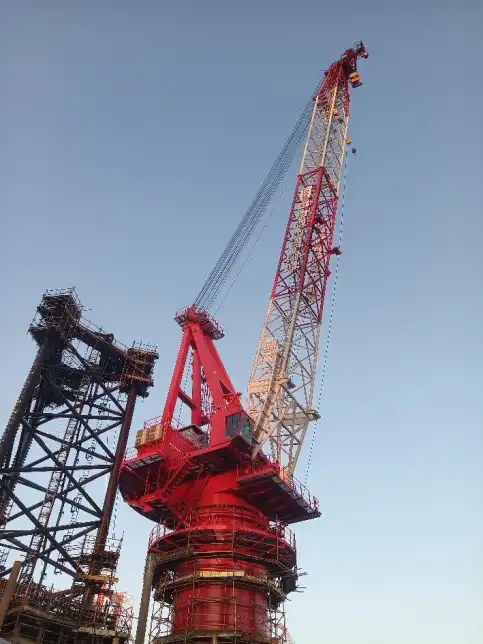

Slew-bearing Crane-wire Rope Luffing Crane Buyer’s Guide

When specifying lifting equipment for offshore platforms, drilling vessels, or marine cargo operations, choosing the right crane architecture can define project success. A Slew-bearing Crane-wire Rope Luffing Crane combines proven rotational technology with flexible boom angle control, delivering dependable performance across demanding marine environments. This guide walks you through essential considerations—from understanding core components to evaluating manufacturers—so you can make informed procurement decisions that balance reliability, lifecycle costs, and operational requirements.

Understanding Slew Bearings and Their Role in Luffing Cranes

Why Slew Bearings Matter

Slew bearings are the structural core of circular crane systems. They allow for smooth motion in all directions and can handle axial, radial, and moment loads at the same time. Unlike regular bearings, which only deal with forces acting on one axis, these large-diameter rings spread pressures in multiple directions across rolling elements. This keeps the ship stable during big lifts and when the sea state changes quickly. For precise positioning and load control, the slewing ring is a must-have because it ties the rotating upper frame of the crane to its pedestal base.

Common Challenges and Solutions

Most of the time, shipowners have problems with wear, rust, and misalignment. Exposure to saltwater speeds up the wear and tear on the surface, and lack of lube causes raceway cracking to happen too soon. Visual checks for cracks, ultrasound tests for flaws below the surface, and "rocking tests" to measure axial clearance are all part of regular inspection routines that help find problems early. If you tighten the bolts correctly during installation, the bearing won't warp, and it will last for well over a decade in marine conditions.

Material and Load Considerations

Because they are made of high-grade metal steel, slew bearings can handle heavy loads without deforming. Three-row roller designs work great for heavy-duty tasks because they spread weight evenly over larger touch areas. When choosing a slewing system for your ship, make sure that the bearing diameter and load rating match your needs for lifting capacity and outreach. You can check with the DNV, ABS, or BV classification society to make sure that you are following their rules.

Wire Rope Essentials for Luffing Cranes

A very important part of marine lifting is the luffing mechanism, which is powered by wire ropes and changes the angle of the boom.

Rope Construction and Material Benefits

Multi-strand designs, which have six or eight strands twisted around a steel or fiber core, are strong and flexible enough to handle dynamic loads. Galvanized steel doesn't rust in saltwater, and special coatings make it last even longer between repairs. When working at high duty cycles, it is important to choose the right rope grade that balances breaking strength and bending fatigue resistance.

Specifications That Drive Safety

What kinds of lifting jobs wire rope can do depend on its diameter, building grade, and safety factors. Breaking load rates must be higher than working loads by a certain amount, usually four to one for non-critical lifts and more for lifting people. ISO 4309 sets the criteria for discarding: wires that are clearly broken more than 10% of the way around six rope diameters, wires that are severely corroded, or wires that have lost more than 7% of their diameter should be replaced right away. Following these standards keeps you in line with the law and stops catastrophic fails.

Wire Rope vs. Chain Systems

Wire ropes work better for luffing tasks than chains, which can be easier to use in some situations. Ropes are better at absorbing shock loads, which lowers the stress spikes that reach structural parts. Because they are smaller per unit of strength, the boom mass is lower, which makes the crane more stable and increases its reach. It is easier to look at wire ropes visually than to look at internal chain links, which means that condition checks during regular maintenance can be done faster. Rope-based luffing systems are also better for shipboard setups because they are cost-effective over long service periods.

Comparing Slew Bearings and Wire Rope Solutions for Procurement

Choosing between slewing ring designs involves evaluating performance characteristics against application demands.

Slew Bearing Options

Three-row roller bearings can handle heavier axial loads, making them perfect for cranes with long booms or heavy booms. Ball-type slew bearings work best in lighter-duty situations where less friction and smoother rotation are most important. The procurement teams have to look at the crane's job classification—A5 to A8 grades show how often and how much it will be used—to make sure that the bearing capacity matches the number of operations and load profiles for Slew-bearing Crane-wire Rope Luffing Crane.

Manufacturer Landscape and Certifications

Major classification societies certify that the products that top global sellers sell cover a wide range of needs. Manufacturers who follow ISO quality systems and API-2C standards show that they care about the strength and durability of their products. When comparing providers, look at the certification paperwork, the ability to track materials, and the non-destructive testing procedures. TSC, which works under CM Energy, has shipped more than 350 deck cranes around the world. Their goods are approved by the CCS, DNV, ABS, BV, and LR registers, which shows that they have a lot of experience with lifting things on ships.

Cost-Benefit Analysis Framework

The initial buying price is only one part of the total cost of owning. Compare products by looking at how often they need to be serviced, how easy it is to get replacement parts, and how long they are expected to last. Modularly designed cranes have less downtime when parts need to be replaced, and centralized greasing systems, which can be manual or electric, cut down on regular maintenance work. Custom-engineered solutions that are made to fit the exact shape of a vessel may cost more up front, but they will save you money in the long run by making your operations more efficient.

Custom Engineering Considerations

Most of the time, standard catalog cranes don't perfectly line up with platform limitations or specific lifting jobs. Custom designs can solve certain problems, like not having enough deck space, having loads that don't fit on standard profiles, or integrating with other systems. However, they need clear communication of the specifications and longer lead times. Reputable makers offer engineering help during the whole design process to make sure that solutions meet technical needs and stay in line with certification requirements. For custom setups, warranty terms and expert support after delivery become very important.

Best Practices for Maintaining Crane Slew Bearings and Wire Ropes

Proper maintenance ensures operational readiness and safety in offshore environments.

Slew Bearing Maintenance Protocols

Proper lubrication is the key to making bearings last a long time. Automatic systems that spread grease make sure that all of the surfaces of the raceways are covered evenly. This keeps the surfaces from getting dry spots, which speed up wear. Load tracking during operation finds unusual stress patterns that could mean there are problems with the structure or that it is being used incorrectly. Protecting against corrosion with the right coatings and cathodic systems keeps saltwater damage at bay, especially in splash zones. Ultrasonic checks done once a year find cracks in the ground that can't be seen with the naked eye. This lets problems be fixed before they happen.

Wire Rope Care and Inspection

Regular cleaning gets rid of rough particles that get stuck between strands and speed up wear on the inside. Used approved oils made for wire rope work will keep the rope flexible and prevent water from getting in. Monitoring the tension makes sure that the drums are properly spooled, which stops bird-caging and kinking that weaken the rope. Set up inspection schedules that are in line with how often the item is used—visual checks once a month, plus more in-depth checks every three months—and write down what you find to keep track of degradation trends. To keep safety margins, replace ropes before they reach the point where they can be thrown away.

Troubleshooting Common Issues

If the spinning is jerky or the resistance goes up, check to see if the bearings are properly oiled and see if there are any debris in the track. When luffing, strange noises are often a sign that the wire rope is not aligned correctly on the sheaves or drum holes. Hydraulic system leaks that slow down luffing must be fixed right away so that control isn't lost while raising. Manufacturers like TSC offer expert help to figure out what's wrong with operational issues. They do this by drawing on their years of experience with marine equipment to solve problems quickly and keep vessels from being down for long periods of time.

Making the Right Purchase Decision for Slew Bearings and Wire Ropes

Defining Your Requirements

Start by writing down the required lifting capacity, the maximum reach, the duty cycle classification, and the environmental exposure for Slew-bearing Crane-wire Rope Luffing Crane. For example, offshore drilling vessels need different specs than large goods workers or supply boats that can be used for many things. Set the maximum operating wind speed, temperature ranges, and requirements for corrosion resistance. The rules set by the classification group for your type of ship include basic design standards that all of its parts must meet. Clear definition of requirements stops expensive specification mistakes and makes sure that cranes delivered meet operational needs.

Evaluating Supplier Capabilities

Reliable manufacturers show they know a lot about their field by having a large installed base, a wide range of certifications, and new technologies. This type of company is CM Energy, which has more than 25% of the world's offshore drilling equipment and supports more than 180 self-elevating platforms with lifting systems. Their TSC name shows decades of progress in marine crane development, supported by 159 approved patents, ten of which are invention patents, showing that design and production methods are always getting better.

Procurement Process Best Practices

Ask for quotes that are very specific about where the parts come from, what they're made of, how they will be tested, and what the approval covers. Check the quality processes of the manufacturer by having site audits or, if possible, having a third party do the tests. Make sure you understand when things will be delivered, how plant acceptance testing works, and if you can get help with installation. Payment terms should match up with project goals like deposit, work on manufacturing, end of factory testing, and final commissioning. Get the prices and wait times for spare parts up front to make planning future repair easier.

Future-Proofing Your Investment

Crane control systems, condition monitoring, and energy efficiency are all areas where technology is still improving. As these features become more common, you might want to plan for ways to add digital load management, remote diagnostics, or automatic operating records in the future. Build partnerships with makers that are committed to long-term product support. This will make sure that parts are always available for your equipment. Instead of letting things run until they break, plan repair budgets that include regular major overhauls. This will make the best use of assets while keeping everyone safe.

Conclusion

To successfully buy Slew-bearing Crane-wire Rope Luffing Crane systems, you need to balance the needs of your business right now with the costs of the system in the long term. Knowing how slew bearings and wire rope systems work together helps you make smart design choices that fit the equipment's abilities to the needs of the job. Procurement pros find reliable lifting solutions by checking the technical knowledge, certification compliance, and support infrastructure of makers. CM Energy's TSC brand shows how important it is to work with experienced suppliers who mix tried-and-true mechanical designs with customer-focused engineering to make cranes that work efficiently in a wide range of marine environments and meet all international safety standards.

FAQ

1.How does wire rope luffing compare to hydraulic cylinder systems for maintenance?

Wire rope luffing methods usually have lower running costs over longer periods of time. Even tho ropes need to be greased and replaced after a while because they wear out, they save money on downtime that would be needed to repair hydraulic cylinder seals and clean up fluid leakage. Visually inspecting the rope turns out to be easier than finding wear on internal hydraulic parts, which makes maintenance planning more reliable.

2.What determines slewing bearing replacement timing?

The load profile, the quality of the lubrication, and the environment all affect how long a bearing lasts. If you take good care of your slewing rings, they should last between ten and fifteen years. Every year, "rocking tests" are used to measure how much the axial clearing track raceway wears down, which gives objective replacement signs. Replace the bearings if the clearance is higher than what the manufacturer recommends or if they show a lot of pitting or cracking upon inspection.

3.Can these cranes operate safely during high wind conditions?

Wind speeds of up to twenty to twenty-two meters per second can be accommodated by Slew-bearing Crane-wire Rope Luffing Crane designs. Heavy-duty storm brakes or mechanical locking pins keep the crane safe when it's not in use, even in hurricane-force winds. Always check the crane's working instructions for specific wind limit information that is based on the load and the way the boom is set up.

Ready to Specify Your Next Marine Crane?

CM Energy is ready to help you with your needs for marine lifting equipment because they have a lot of engineering knowledge and a track record of making high-quality products. As a reliable Slew-bearing Crane-wire Rope Luffing Crane supplier, we make solutions that fit fixed platforms, jack-ups, semi-submersibles, drilling vessels, and FPSOs. Our TSC brand has value-engineered structures, certificates from DNV, ABS, BV, LR, and CCS classification societies, and modular designs that make sure delivery processes are short. You can email our technical team at info.cn@cm-energy.com to talk about your project needs, get detailed specs, or set up factory acceptance testing. Let our experience working with more than 350 offshore sites around the world help you make your next purchase choice.

References

1. International Organization for Standardization. Steel Wire Ropes for General Purposes - Minimum Requirements. ISO 4309:2017.

2. American Petroleum Institute. Specification for Offshore Pedestal Mounted Cranes. API Spec 2C, Eighth Edition.

3. Det Norske Veritas. Certification of Lifting Appliances. DNV-OS-D101 Marine and Lifting Operations Standard.

4. Bureau Veritas. Rules for the Classification of Offshore Units - Lifting Appliances. Part E Chapter 5.

5. Lloyd's Register. Rules and Regulations for the Classification of Ships - Part 5 Chapter 8: Lifting Appliances.

6. China Classification Society. Rules for the Construction and Classification of Offshore Mobile Platforms - Section 11: Lifting Equipment and Cargo Gear.
