Matching Pump Pressure to Well Depth: A Guide
When selecting a mud pump for a specific well depth, several factors come into play. The primary consideration is the hydrostatic pressure created by the column of drilling fluid in the wellbore. As the well depth increases, so does the hydrostatic pressure, requiring a higher pump pressure to overcome it and maintain circulation.
Factors Influencing Pump Pressure Requirements
Apart from well depth, other factors that influence the required pump pressure include:
- Drilling fluid density
- Wellbore diameter
- Drill string configuration
- Formation characteristics
- Desired flow rate
These factors collectively determine the total system pressure that the mud pump must overcome to maintain effective circulation. As a general rule, deeper wells with higher density drilling fluids and smaller wellbore diameters require higher pump pressures.
Pressure Challenges in Deep vs. Shallow Wells
The pressure requirements for mud pumps vary significantly between deep and shallow wells, each presenting unique challenges that must be addressed for optimal drilling performance.
Shallow Well Considerations
In shallow wells, typically less than 3,000 feet deep, the pressure requirements are generally lower. However, this doesn't mean that pump selection is any less critical. Shallow wells often encounter unconsolidated formations, which can be prone to washouts or collapse if the mud pump pressure is too high. The challenge lies in maintaining sufficient pressure to clear cuttings and stabilize the wellbore without causing formation damage.
Deep Well Challenges
Deep wells, exceeding 10,000 feet, present more complex pressure challenges. As depth increases, so does the hydrostatic pressure of the mud column. This requires mud pumps capable of generating significantly higher pressures to maintain circulation and overcome the increased resistance. Additionally, deep wells often encounter high-pressure formations, necessitating careful management of mud weight and pump pressure to prevent kicks or lost circulation events.

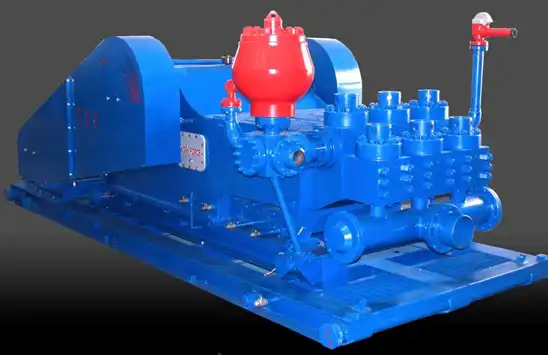

The WF Series Mud Pump from TSC is designed to meet these varying pressure demands, offering a range of models suitable for both shallow and deep well applications. With input horsepower ranging from 500HP to 2200HP and maximum discharge pressures up to 7500psi, these pumps provide the flexibility needed for diverse drilling scenarios.
Optimizing Mud Pump Selection: Depth-Pressure Correlation
To optimize mud pump selection based on well depth, it's crucial to understand the depth-pressure correlation and how it impacts drilling operations. This knowledge allows for more precise pump sizing and pressure rating selection, leading to improved drilling efficiency and reduced operational risks.
Pressure Gradient Considerations
The pressure gradient in a wellbore is typically expressed in pounds per square inch per foot (psi/ft). This gradient varies depending on the mud weight used but generally ranges from 0.433 psi/ft for fresh water to higher values for denser drilling fluids. Understanding this gradient helps in estimating the hydrostatic pressure at various depths and, consequently, the required pump pressure.
Pump Pressure Calculation
To calculate the required pump pressure, consider the following factors:
- Hydrostatic pressure (based on well depth and mud weight)
- Friction pressure losses in the surface equipment, drill string, and annulus
- Pressure drop across the drill bit
- Additional pressure for efficient hole cleaning and formation stability
The sum of these factors provides an estimate of the total system pressure that the mud pump must overcome. It's important to note that this calculation should include a safety margin to account for unexpected pressure variations during drilling operations.
CM Energy's TSC brand offers the WF Series Mud Pump, which is designed to meet these complex pressure requirements across various well depths. The series' wide range of pressure ratings ensures that operators can select the most appropriate pump for their specific well conditions, optimizing performance and reliability.
Conclusion
Selecting the appropriate mud pump pressure rating for different well depths is a critical aspect of successful drilling operations. By understanding the depth-pressure correlation and considering factors such as hydrostatic pressure, friction losses, and formation characteristics, operators can optimize their mud pump selection for maximum efficiency and safety. The WF Series Mud Pump from TSC provides a versatile solution, capable of meeting the diverse pressure requirements encountered in both shallow and deep well drilling scenarios.
