Mud Pump Liner and Piston Replacement: Best Practices Guide

Signs of Wear: When to Replace Liners and Pistons

Recognizing the right time to replace mud pump liners and pistons is crucial for maintaining optimal performance and preventing unexpected breakdowns. Here are key indicators that signal the need for replacement:

Visual Inspection

Regular visual inspections can reveal telltale signs of wear on liners and pistons. Look for:

• Scoring or deep scratches on the liner surface
• Visible cracks or chips in the liner or piston
• Uneven wear patterns on the piston surface
• Discoloration or heat marks indicating excessive friction

Performance Indicators

Monitor your mud pump's performance metrics to identify potential issues:

• Decreased pump pressure or flow rate
• Increased pump vibration or noise levels
• Reduced efficiency in mud circulation
• Higher energy consumption for the same output

Operational Hours

While the lifespan of liners and pistons can vary based on operating conditions, it's generally recommended to consider replacement after:

• 500-1000 hours for standard steel liners
• 1000-1500 hours for chrome-plated liners
• 300-600 hours for rubber pistons
• 600-1000 hours for polyurethane pistons

These are general guidelines, and actual replacement intervals may vary based on factors such as mud properties, pressure requirements, and operating conditions.

Step-by-Step: Proper Liner and Piston Installation Techniques

Correct installation of mud pump liners and pistons is crucial for ensuring optimal performance and longevity. Follow these steps for a successful replacement:

Preparation

1. Ensure you have all necessary tools and replacement parts
2. Clean the work area thoroughly
3. Disconnect power sources and release any residual pressure in the system
4. Drain the fluid end of the pump

Liner Removal and Installation

1. Remove the discharge valve cover and suction valve cover
2. Extract the old liner using appropriate tools, being careful not to damage the pump body
3. Clean the liner bore thoroughly, removing any debris or old sealant
4. Apply a thin layer of recommended sealant to the new liner's outer surface
5. Carefully insert the new liner, ensuring it's properly aligned
6. Secure the liner in place according to manufacturer specifications

Piston Removal and Installation

1. Remove the piston rod assembly from the pump
2. Disassemble the piston components, noting their order and orientation
3. Clean all reusable parts thoroughly
4. Inspect the piston rod for wear or damage, replacing if necessary
5. Assemble the new piston components onto the rod, ensuring proper alignment and tightness
6. Lubricate the new piston assembly with the recommended lubricant
7. Carefully insert the piston assembly back into the liner, avoiding damage to the piston or liner surfaces

Final Steps

1. Reinstall the valve covers and any other removed components
2. Perform a pressure test to ensure proper sealing
3. Run the pump at low speed to check for any unusual noises or vibrations
4. Gradually increase to normal operating conditions while monitoring performance

Remember, precise installation is critical for the longevity and efficiency of your mud pump. If you're unsure about any step, consult the manufacturer's guidelines or seek professional assistance.

Maintenance Schedule: Extending Pump Component Lifespan

A well-planned maintenance schedule is key to maximizing the lifespan of your mud pump components, particularly liners and pistons. Here's a comprehensive approach to maintaining these crucial parts:

Daily Checks

• Monitor pump pressure and flow rate for any deviations
• Listen for unusual noises or vibrations
• Check for any visible leaks around the fluid end
• Ensure proper lubrication of all moving parts

Weekly Maintenance

• Perform a visual inspection of liners and pistons for signs of wear
• Check and adjust piston rod clamp bolts if necessary
• Clean and inspect valve seats and valve inserts
• Verify proper alignment of the power end and fluid end

Monthly Tasks

• Conduct a thorough inspection of all pump components
• Measure and record liner and piston wear
• Check and replace packing or seals as needed
• Analyze oil samples from the power end for signs of wear or contamination

Quarterly Procedures

• Perform a complete fluid end overhaul, including liner and piston inspection
• Replace components showing significant wear, even if not yet at end-of-life
• Conduct pressure tests to ensure system integrity
• Review and update maintenance records and schedules

Annual Maintenance

• Conduct a comprehensive inspection of both the power end and fluid end
• Replace all wear components, including liners and pistons, regardless of condition
• Perform alignment checks on all major components
• Review overall pump performance and efficiency

By adhering to this maintenance schedule, you can significantly extend the life of your mud pump components, reduce unexpected downtime, and maintain optimal performance. Remember to adjust the schedule based on your specific operating conditions and manufacturer recommendations.

Conclusion

Proper maintenance and timely replacement of mud pump liners and pistons are crucial for ensuring the efficiency and reliability of your drilling operations. By following the best practices outlined in this guide, you can extend the lifespan of your pump components, reduce downtime, and maintain optimal performance. Regular inspections, correct installation techniques, and a comprehensive maintenance schedule are key to maximizing the value of your mud pump investment.

Call to Action

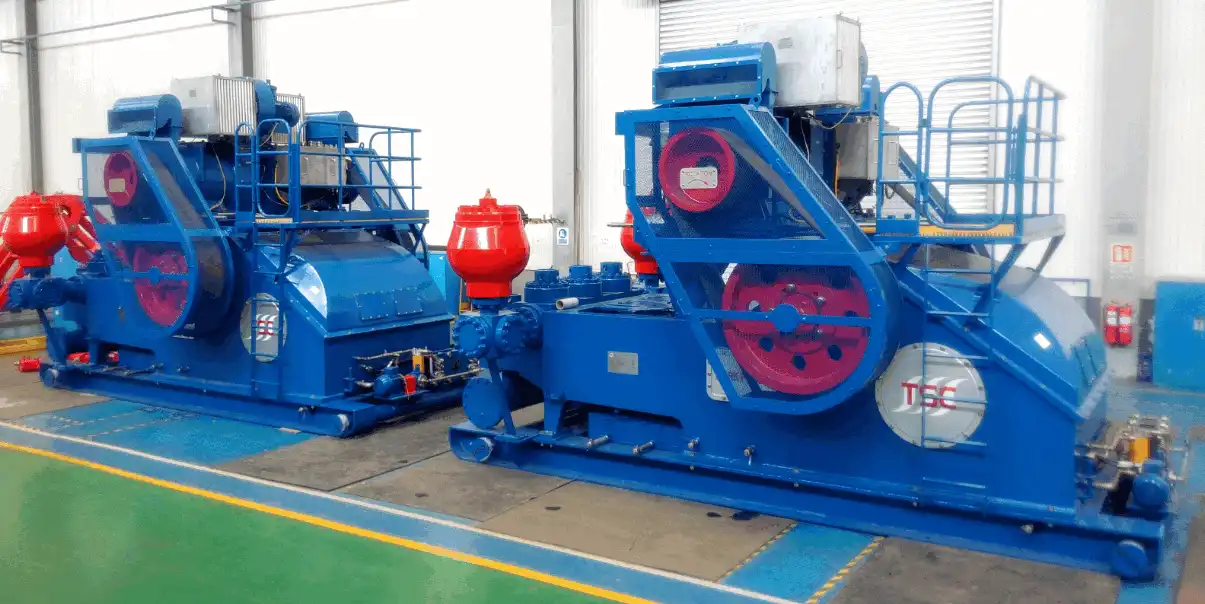

At CM Energy, we understand the critical role that high-performance mud pumps play in your drilling operations. TSC WF Series Mud Pumps offer unparalleled reliability and efficiency for a wide range of applications, from land-based shale gas drilling to geothermal well maintenance. With our global network of service centers and 24/7 technical support, we ensure that your operations run smoothly, no matter where you are.
