Hydraulic vs. Electric Jacking Systems: A Comparison

When selecting between hydraulic and electric jacking systems for offshore platforms, understanding their fundamental differences becomes crucial for operational success. Hydraulic jacking systems utilize pressurized fluid to generate lifting force through cylinders and actuators, while electric systems employ motorized rack and pinion mechanisms with precise gear reduction. Both technologies serve critical roles in self-elevating platforms, yet their performance characteristics, maintenance requirements, and operational efficiency vary significantly. This comparison examines real-world applications across jack-up drilling rigs, wind turbine installation vessels, and offshore support platforms to help you make informed decisions for your marine operations.

Understanding Hydraulic Jacking Technology

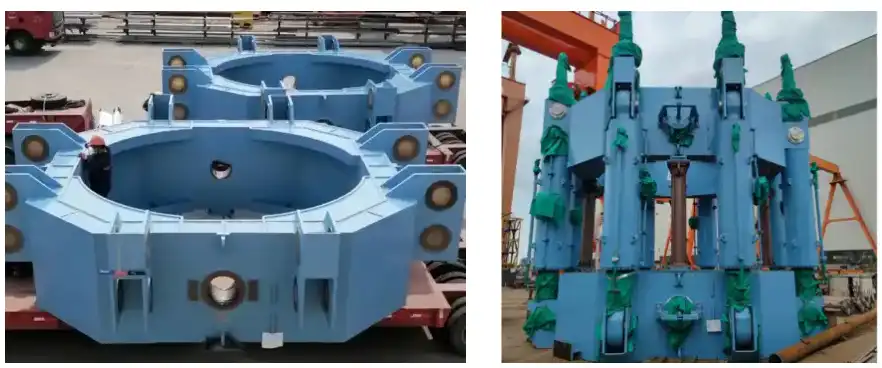

Hydraulic jacking systems use pressurized fluid mechanics to generate substantial lifting force through single-acting or double-acting cylinders. These systems operate based on Pascal's principle, where pressure applied to confined fluid multiplies force across the system. Modern hydraulic systems integrate sophisticated control systems, pressure sensors, and safety valves to monitor load distribution and prevent overloading.

The components include hydraulic power units (HPU), actuator assemblies, and emergency stop mechanisms. Hydraulic jacking systems excel in heavy-duty applications requiring high load capacity with minimal structural support. They provide smooth, controlled movement and excellent load monitoring through integrated pressure sensors.

CM Energy’s hydraulic jacking series incorporates advanced technology, featuring redundant pump sets for continued operation and real-time load monitoring. These systems offer reliable performance for offshore applications with simplified maintenance procedures.

Electric Jacking System Fundamentals

Electric jacking systems utilize motorized rack and pinion mechanisms to achieve precise lifting control through gear reduction technology. The systems engage climbing pinions with racks attached to platform legs, enabling controlled elevation or lowering operations. Electric motors drive multistage planetary gear units housed in watertight steel casings with splash lubrication.

Control system integration includes optimized human-machine interfaces and intelligent operation diagnostics. These systems offer superior automation with programmable logic controls and remote monitoring capabilities. The torque delivery remains consistent across varying load conditions, ensuring stable performance.

Electric jacking systems are equipped with safety features such as electromagnetic or hydraulic brakes, engaging automatically during power failures or emergencies. They require precise rack alignment and gear engagement throughout the operational range.

CM Energy's electric jacking systems provide exceptional durability, with real-time load monitoring to enhance operational safety, making them ideal for offshore applications that demand precise positioning control and automation.

Performance Comparison: Load Capacity and Speed

Analysis of load capacity shows each technology's capabilities. Due to fluid pressure multiplication, hydraulic systems can handle bigger loads. These systems are strong in harsh situations, having high preload and storm holding capabilities.

Electric systems generate torque consistently over the working range, guaranteeing reliable lifting. They have great storm-holding capabilities, but hydraulic systems jack up quickly. Hydraulic systems excel in load capacity and speed, whereas electric systems give precise control and torque distribution.

Operational efficiency depends on specific application requirements:

1. Hydraulic systems excel in rapid positioning applications
2. Electric systems provide superior precision for gradual adjustments
3. Load distribution varies based on system configuration
4. Power consumption differs substantially between technologies
5. Environmental conditions affect performance characteristics

The choice depends on whether rapid positioning or precise control takes priority for your specific operations. If you need rapid jacking for time-sensitive operations, hydraulic systems provide superior speed capabilities for offshore drilling and wind turbine installation.

Maintenance Requirements and Durability

Maintenance complexity varies significantly between hydraulic and electric jacking technologies. Hydraulic systems require regular fluid changes, seal replacements, and pressure testing protocols. The enclosed fluid systems protect internal components from environmental contamination, yet require specialized hydraulic expertise for servicing.

Electric systems demand gear lubrication maintenance, motor servicing, and brake system inspections. The totally enclosed gear design with splash lubrication reduces maintenance frequency compared to exposed mechanical systems. However, electronic components require protection from marine environments and regular calibration procedures.

Durability testing demonstrates different failure modes:

1. Hydraulic systems face seal degradation and fluid contamination risks
2. Electric systems experience gear wear and motor bearing deterioration
3. Environmental exposure affects both technologies differently
4. Spare parts availability influences long-term operational costs
5. Service intervals vary based on operational intensity

The SJ350 electric system demonstrates 2000 hours design fatigue life at normal jacking operations, showcasing exceptional durability. CM Energy's global certification from ABS, DNV, CCS, and BV validates reliability standards across both technologies. Their systems have been deployed on 33 platforms worldwide, providing extensive real-world validation.

If you need extended operational periods with minimal maintenance intervention, electric systems offer superior reliability for remote offshore installations.

Safety Features and Control Systems

Safety mechanisms differ substantially between hydraulic and electric jacking technologies. Hydraulic systems incorporate pressure relief valves, dual counterbalance valves on hydraulic motors, and emergency pressure release systems. The spring-applied, pressure-to-release brake systems provide fail-safe operation during power failures.

Electric systems feature electromagnetic fail-safe brakes that engage automatically during power loss or emergency conditions. The brake state monitoring systems provide real-time status updates, enhancing operational safety. Advanced stress analysis capabilities enable predictive maintenance and load optimization.

Control system sophistication varies between technologies:

1. Hydraulic systems utilize pressure-based control with load monitoring
2. Electric systems employ encoder feedback for precise positioning
3. Emergency stop mechanisms differ in response characteristics
4. Remote control capabilities vary in complexity and functionality
5. Automation integration depends on control system architecture

CM Energy's PLMS technology provides real-time load display and system diagnostics for both hydraulic and electric systems. The intelligent operation diagnosis systems enhance safety through predictive monitoring and automated fault detection. Remote network service interfaces enable technical support through internet connectivity.

If you need comprehensive safety monitoring with predictive maintenance capabilities, CM Energy's advanced control systems deliver superior protection for critical offshore operations.

Cost Analysis and ROI Considerations

Initial investment costs vary significantly between hydraulic and electric jacking systems. Hydraulic systems typically require lower upfront capital due to simpler mechanical design and fewer precision components. However, ongoing operational costs include hydraulic fluid replacement, seal maintenance, and specialized service requirements.

Electric systems demand higher initial investment due to precision gear manufacturing and sophisticated control electronics. Long-term operational efficiency often compensates for increased capital costs through reduced maintenance frequency and enhanced automation capabilities.

Total cost of ownership considerations include:

1. Initial equipment purchase and installation costs
2. Ongoing maintenance and service requirements
3. Power consumption and operational efficiency
4. Spare parts availability and replacement costs
5. System lifecycle and technology obsolescence factors

ROI calculations must consider operational efficiency gains from advanced control systems and reduced downtime from predictive maintenance capabilities. CM Energy's customized solutions address specific application requirements, optimizing cost-effectiveness for individual project needs.

If you need cost-effective solutions for straightforward lifting applications, hydraulic systems provide excellent value with proven reliability and simplified maintenance procedures.

Application-Specific Recommendations

Selecting appropriate jacking technology depends on specific platform requirements and operational conditions. Self-elevating wind turbine installation vessels benefit from electric systems' precision positioning capabilities during turbine assembly operations. The accurate height control enables safe component handling in varying sea conditions.

Jack-up drilling rigs often utilize hydraulic systems for rapid positioning and high load capacity requirements. The robust design handles dynamic loads from drilling operations while providing quick setup times for location changes. Storm holding capacity becomes critical for extended drilling campaigns.

Offshore accommodation platforms require reliable, low-maintenance systems for long-term installations. Electric systems' extended service intervals and automated monitoring capabilities suit these applications. The reduced maintenance requirements minimize disruption to platform operations.

FPSO mooring tower installation demands precise positioning accuracy that electric systems deliver effectively. The controlled movement enables accurate alignment during critical installation phases. Bridge piling construction vessels benefit from hydraulic systems' high capacity for driving large pile sections.

If you need versatile solutions for multiple platform types, CM Energy's extensive product range covers diverse application requirements with proven performance across 33 deployed platforms worldwide.

Future Technology Trends and Innovations

Emerging technologies are advancing hydraulic and electric jacking systems, with digital integration enabling predictive maintenance through IoT sensors and machine learning, reducing failures and optimizing maintenance.

Automation is evolving with autonomous positioning systems that use GPS and motion compensation, allowing precise platform positioning without manual intervention. Remote monitoring capabilities are expanding through satellite communication. Environmental concerns drive the development of energy-efficient systems. Electric systems offer precise control and energy recovery, while hydraulic systems use biodegradable fluids and improved sealing to minimize environmental risks.

CM Energy focuses on innovation, exploring hydrogen energy integration and green manufacturing. Their research aims to improve core products while ensuring compatibility with existing installations, offering long-term performance and upgrade potential for clients.

Conclusion

The decision between hydraulic and electric jacking systems relies on operating, load capacity, and precise control considerations. Electric systems provide more precision and automation, whereas hydraulic systems thrive in high-capacity, quick positioning applications. Both technologies have benefits when matched to application needs.

CM Energy's competence in both technologies enables optimum offshore platform solutions. Their track record, worldwide certifications, and innovation provide dependable performance in harsh maritime settings. The wide product range allows customized solutions that improve operating efficiency and dependability.

Load requirements, operating circumstances, and maintenance capacities must be considered while choosing jacking technique. The technical experience of CM Energy helps clients find ideal solutions that improve platform performance and ensure safety and reliability throughout the operating lifespan.

Choose CM Energy for Superior Jacking System Solutions

CM Energy stands as a proven jacking system manufacturer with over two decades of engineering excellence in offshore platform technology. Their comprehensive product portfolio includes both hydraulic and electric systems, enabling optimal solutions for diverse application requirements. CM Energy's customization capabilities address unique project requirements through tailored integration for new builds or retrofit applications. Their advanced manufacturing facilities and quality control processes ensure consistent performance standards across all product lines. The comprehensive service network provides global support with remote diagnostic capabilities and technical expertise.

Whether you require hydraulic systems for high-capacity applications or electric systems for precision control, CM Energy's expertise ensures optimal performance for your offshore operations. Their commitment to quality and innovation positions them as the preferred jacking system supplier for demanding marine applications.

Ready to enhance your offshore platform capabilities with industry-leading jacking systems? Contact CM Energy's technical team to discuss your specific requirements and discover customized solutions that optimize performance and reliability. Reach out to contact us at info.cn@cm-energy.com to begin your consultation with offshore jacking system experts.
