How Wire Rope Luffing System Improves Crane Performance?

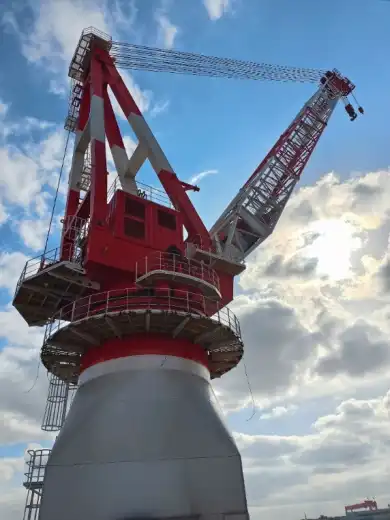

When selecting marine and offshore cranes, technical managers and shipyard procurement officers ask a fundamental question: how does the wire rope luffing mechanism truly enhance operational performance? The answer lies in the proven engineering of the Slew-bearing Crane-wire Rope Luffing Crane, which integrates a robust slewing bearing pedestal with a triangulated wire rope luffing geometry. This configuration delivers superior load precision, mechanical redundancy, and visual inspectability—three attributes critical for continuous bulk handling and complex deck operations. Unlike enclosed hydraulic luffing cylinders, wire rope systems allow crews to visually monitor wear, reducing unplanned downtime and simplifying maintenance scheduling for mid-sized to large shipowners operating in demanding offshore environments.

Understanding the Wire Rope Luffing System and Slew Bearing in Cranes

The slewing bearing and the wire rope luffing system are two parts of marine lifting tools that work together. It's easier to make choices about buying when you know how these parts work together.

Role of Slewing Bearings in Rotational Stability

Slewing bearings, which are also called slewing rings, allow a crane to turn a full 360 degrees and hold huge loads in both the axial and radial directions. These large-diameter rolling element bearings don't have a set pivot, so the forces are spread out evenly across several roller tracks. Marine uses mostly use three-row roller and double-row ball designs, which have different load capacities and stiffness profiles. The fixing flange of the bearing is directly connected to the tripod base. This makes it possible for the bearing to rotate smoothly even when the sea is moving. This design reduces the torque needed for slewing operations, which saves energy and keeps drive motors from breaking down.

Wire Rope Luffing Mechanics and Boom Control

A multi-reeve reeving system controls the angle of the boom with wire rope luffing. The luffing winch extends or retracts the rope, which moves the boom up and down and changes the reach and load radius. A normal reeving setup has several rope parts that run thru fixed sheaves at the base of the boom and moving blocks close to the tip of the boom. This mechanical advantage lets you place the load precisely while spreading the strain over several rope segments, which makes the rope last longer. The triangulated shape better handles dynamic shock loads than stiff hydraulic rams, especially when the vessel is moving or when the load changes quickly. The system's natural elasticity reduces vibrations, which protects structural members and makes it easier for operators to control during delicate lifts.

Types and Specifications of Key Components

There are different kinds of slewing bearings. Roller bearings can handle higher rotational and axial forces, while ball bearings are better for lighter-duty tasks with moderate moment loads. Cross-roller designs are preferred when deck space is limited because they offer high stiffness in small packages. You can tell what kind of wire rope it is by its build, thickness, and grade. Common designs are 6x19, 6x36, and 8x19, which balance flexibility and resistance to wear. Higher tensile grades, like improved plow steel, have higher breaking strengths, which means that smaller rope diameters can hold the same amount of weight. To choose the right rope specs, you have to look at things like the job cycle, bending stress over sheaves, and the rope's exposure to saltwater corrosion.

If you choose the right components, your system will be reliable for a long time and cost less over its life. By matching the bearing load ratings to the actual working loads and picking rope constructions that work with sheave diameters and duty cycles, you can keep things from breaking down too soon and keep them in good shape for longer.

Common Challenges and Maintenance Strategies for Slew Bearing Wire Rope Luffing Systems

Marine cranes that are used in rough offshore settings are constantly being worn down and put under stress by the climate. Operational stability is protected by spotting signs of failure and using proactive repair plans.

Signs of Wear and Potential Failure Modes

Bearing wear shows up as more friction when the bearing is turning, strange noises, or visible pitting in the raceway. Wire rope wear shows up as broken wire strands, a smaller width, kinking, or "bird-caging," which is when strands split and bend. In saltwater environments, corrosion speeds up and attacks both bearing raceways and rope cores. When the mounting surfaces of the slewing bearing are not lined up correctly, the load is spread out unevenly. This causes the raceways to crack and the bolts to wear out too quickly. When lubrication breaks down, either because it's dirty or because it's not reapplied enough, the protected film between metal surfaces is removed. This leads to adhesive wear and galling. At sheave contact points, the rope's surfaces get worn down, especially when the sheave grooves are worn out or out of place, which raises the bending stresses above the design limits.

Maintenance Best Practices and Inspection Protocols

Scheduled checks are what make cranes reliable. Visual checks of the rope's surface should be done once a month to record its condition and look for broken wires, corrosion, and mechanical damage. How often a bearing needs to be inspected depends on its duty cycle. Every year, rocking tests are done to measure the axial clearance and find raceway wear before it leads to a catastrophic failure. Lubrication rules must match what the maker says. Grease must be applied to bearing raceways and gear teeth at set times by hand or by automated centralized systems. Checking the tension of bolts with measured torque tools or ultrasonic ways stops them from coming loose under dynamic loads. When replacing wire rope, strict rules like ISO 4309 standards must be followed. These rules say how many broken wires can be used, how much the width can shrink, and how bad the rust can get. Total cost of ownership is directly affected by how well maintenance cuts down on operational downtime and increases the life of Slew-bearing Crane-wire Rope Luffing Crane equipment. When comparing crane systems, purchasing managers should look at the aftermarket help from each seller, such as how quickly they can provide spare parts and technical assistance.

Advantages of Wire Rope Luffing Systems on Slew Bearing Cranes

Marine operators choose wire rope luffing systems because they work better and cost less. Because of these benefits, safety, uptime, and operational flexibility have all gotten better.

Enhanced Load Control and Precision

Compared to other designs, wire rope luffing mechanisms are better at controlling load. The multiple reeves give the system a technical edge, letting the boom angle be changed slowly and smoothly. Operators get exact placement of loads, which is important for moving goods into small areas on deck or moving materials from one ship to another. The flexible nature of the system absorbs quick changes in load that happen when the vessel moves. This lowers the shock forces on structural parts and keeps load swing to a minimum. When the sea is calm, this damping effect makes lifts safer because rigid systems would send full dynamic forces to crane parts and deck attachments. When hydraulic control circuits are combined with electric load tracking systems, the boom can move proportionally. This lets deck workers finetune lifting speeds and angles.

Reduced Downtime and Maintenance Costs

There are clear upkeep benefits to wire rope devices. Visual inspection quickly shows the condition of the rope without taking it apart, unlike sealed hydraulic cylinders that need to be tested under pressure to make sure the seals are still intact. Even tho replacing the rope is a regular cost, it usually costs less and takes less time than replacing the seals on a hydraulic cylinder. Since there is no hydraulic fluid, there are no chances of pollution or damage to the environment from leaks. Damaged rope sections can be replaced without affecting other crane subsystems because the components are modular. This modular method cuts down on the need to keep spare parts on hand and makes it easier to train crews on basic upkeep jobs. Less complicated maintenance means lower lifecycle costs, which is very important for shipowners who have to manage fleet budgets.

Durability and Cost-Effectiveness

Wire rope structures are made to last longer when they are loaded and unloaded many times. High-tensile steel grades don't wear down easily, and the right reeving design spreads the bending loads across several rope parts. Durable coats on rope keep it from rusting, so you can go longer without replacing it. Unlike complicated hydraulic circuits with pumps, valves, and accumulators, the luffing system's simple mechanics make it less likely that something will go wrong. This dependability comes in handy during long campaigns abroad, where broken equipment can stop work and cost a lot in backup costs. Suppliers in the industry, like Mazzella and Ropesco, offer high-quality rope goods with expert support. This makes sure that procurement managers can get quality parts with performance records. All of these benefits increase the amount of time the crane is used and lower its operating costs, giving a clear return on investment over the whole lifecycle of the equipment.

Comparison and Procurement Considerations for Selecting Wire Rope Luffing Systems and Slew Bearings

When making a procurement decision, you have to look at a lot of technical and business factors. To do good buying, you need to know how wire rope luffing systems stack up against other options and what qualities make a company good.

Performance Comparison with Alternative Designs

In a number of ways, slewing bearings are better than standard ball bearing assemblies. Their large diameter and rolling element paths can handle axial, radial, and moment loads all at the same time within a small height, which is important for installations that are mounted on a deck. Standard ball bearings would need to be stacked on top of each other and supported by structures that add weight and complexity. In naval settings, wire rope luffing systems are better than chain luffing systems. Chains need to be perfectly aligned and oiled often. Saltwater speeds up the wear on pins and bushings. Wire ropes can handle small misalignments better and show signs of wear thru broken wire strands. Unlike hydraulic cylinders, wire rope systems don't leak fluid, are easier to maintain, and have backups—multiple rope parts share the load, so if one part gets damaged, the whole system doesn't fail.

Procurement Criteria and Supplier Evaluation

Quality certifications are basic requirements for buying things. Classification societies like DNV, ABS, BV, LR, and CCS set standards for design and production that make sure structures are safe and sound. Suppliers with these certifications show that they follow strict testing protocols and quality management systems. For features that are specific to a vessel, being able to make things to order is important. Shipyards need cranes that are custom made for the deck plans, lifting powers, and ways of working. Suppliers who offer engineering support during the development of specifications add value by making sure that configurations are best for the purpose they are meant to serve. Lead times affect project plans. Companies that stock modular parts and have established supply lines can deliver faster than those that have to fabricate parts for each project individually. Leading names like Liebherr, Kone, and Timken set the bar for bearing quality and global service networks. However, more and more local makers are meeting performance standards at costs that are affordable for Slew-bearing Crane-wire Rope Luffing Crane.

Commercial Considerations and Aftermarket Support

Prices are different depending on the level of customization, the capacity, and the certification needs. Shipowners who are renewing their fleets or companies that are signing contracts for more than one vessel can save money by using bulk purchasing agreements. Clear pricing that breaks down the prices of parts, installation services, and commissioning help makes budgeting easier. Aftermarket support is what sets reliable suppliers apart. The abundance of spare parts, quick response times from expert service, and training programs for ship crews all help to keep operations running smoothly. When suppliers keep regional service centers, it takes less time for urgent fixes to be done, which cuts down on costly downtime during overseas operations. When purchasing marine crane systems, procurement managers can find the best balance between cost, quality, and the reliability of the supply chain by looking at all of these factors together.

Future Trends and Innovations in Wire Rope Luffing Systems and Slew Bearing Cranes

Digitalization, materials science, and environmental laws are all pushing marine equipment technology forward. Understanding new trends helps procurement managers make investments that will pay off in the future.

Technological Advancements Enhancing Performance

New developments in bearing materials include coatings that don't rust and advanced heat treatments that make raceways last longer in marine environments. Manufacturers of wire rope make constructions with synthetic cores that are better at keeping lubrication in and resisting corrosion than natural fiber cores. IoT-enabled condition monitoring systems have sensors that measure the temperature, vibration, and load distribution of bearings. These systems send information to platforms on board or on land, which lets maintenance plans be planned ahead of time. Algorithms look at patterns to predict when parts will break before they do. This way, maintenance can be planned and done at set times instead of having to be done quickly during operations. Load tracking systems with built-in alarms keep structures from being overloaded, which protects them and makes tools last longer.

Sustainable and Efficient Crane Design

Environmental laws and pressures on running costs are pushing for crane designs that use less energy and are lighter. New building materials, like high-strength steels and composite lattice boom sections, make structures lighter without lowering their strength. Less structure weight means less energy is used for slewing and hoisting, which lowers fuel costs and pollution. Using electric drive systems instead of hydraulic power packs can save energy and get rid of the need to worry about where to dispose of hydraulic fluid. Because modular design makes it easy to update parts, owners can add modern control systems and tracking technologies to older cranes instead of buying whole new ones. Forward-thinking shipowners can take advantage of these trends to lower their operating costs, make their ships more reliable, and make sure they meet new environmental standards.

Conclusion

When used together, wire rope luffing systems and slewing bearing pedestals make naval and offshore crane activities much more productive. Their stability, ease of maintenance, and ability to be inspected visually all help shipowners and workers of offshore platforms with some of the most important problems they face in their daily work. Purchasing managers looking for affordable and easy-to-maintain moving options can benefit from learning about how parts work together, the best ways to maintain them, and new technology trends. Long-term operating success depends on choosing providers with classification society certifications, the ability to customize, and strong aftermarket support. As digitalization and new materials change naval equipment technology, Slew-bearing Crane-wire Rope Luffing Crane will still be important assets because they can be easily modified and upgraded, protecting capital investments while meeting strict service requirements.

FAQ

1.What inspection intervals are recommended for wire ropes on luffing cranes?

Visual checks are done once a month to keep track of broken lines, corrosion, and mechanical damage. Under normal duty cycles, detailed inspections of the rope should happen every six months. For high-intensity operations, checks should happen more often. Discard criteria are based on ISO 4309 standards, which say that wires must be replaced when the number of breaks exceeds certain levels, the diameter decreases by more than 7%, or severe corrosion shows up.

2.How do slewing bearings improve crane performance compared to fixed bearing designs?

Slewing bearings allow the part to rotate fully 360 degrees and handle joint loads while taking up little space. Their large diameter spreads forces out evenly, which lowers stress concentrations and the torque needed for slewing. Compared to fixed bearings, which need extra support structures and drive components, this design uses less energy and wears down parts less quickly.

3.Can wire rope luffing systems be retrofitted onto existing cranes?

Retrofitting is possible if the structure is compatible and there is enough deck room. Often, existing pedestal cranes can be converted to use wire rope luffing if the mounting interfaces and structural load paths match the needs of the new parts. Engineering reviews by qualified suppliers find out if the idea is technically possible and what changes need to be made.

Partner with CM Energy for Reliable Marine Crane Solutions

Thru its TSC brand, CM Energy has decades of experience designing and building wire rope luffing cranes that are perfect for use in marine and offshore environments. Our Slew-bearing Crane-wire Rope Luffing Crane systems are used in more than 350 locations around the world. They have been tested and shown to work well on drilling ships, FPSOs, and semi-submersible platforms. Each crane is custom-built to fit the needs of a particular vessel and comes with full classification society certificates from DNV, ABS, BV, LR, and CCS. As a reliable Slew-bearing Crane-wire Rope Luffing Crane manufacturer, we offer modular designs with standard parts that allow for quick delivery times, low prices, and full support throughout the lifecycle. Get in touch with our expert team at info.cn@cm-energy.com to talk about your lifting needs and get a custom plan that improves safety, performance, and the overall cost of ownership.

References

1. American Petroleum Institute. "API Specification 2C: Specification for Offshore Pedestal Mounted Cranes." 7th Edition, API Publishing Services, 2012.

2. International Organization for Standardization. "ISO 4309:2017 Cranes – Wire Ropes – Care and Maintenance, Inspection and Discard." ISO Standards Catalogue, 2017.

3. Det Norske Veritas. "DNV-ST-0377 Standard for Shipboard Lifting Appliances." DNV GL Group, 2021.

4. FEM Federation. "FEM 1.001 Rules for the Design of Hoisting Appliances." European Materials Handling Federation, 2018 Revision.

5. Wire Rope Technical Board. "Wire Rope Users Manual." 4th Edition, Wire Rope Technical Board Publications, 2005.

6. Society of Naval Architects and Marine Engineers. "Marine Crane Systems: Design, Operation and Maintenance." SNAME Technical Papers, Maritime Technology Series, 2019.
