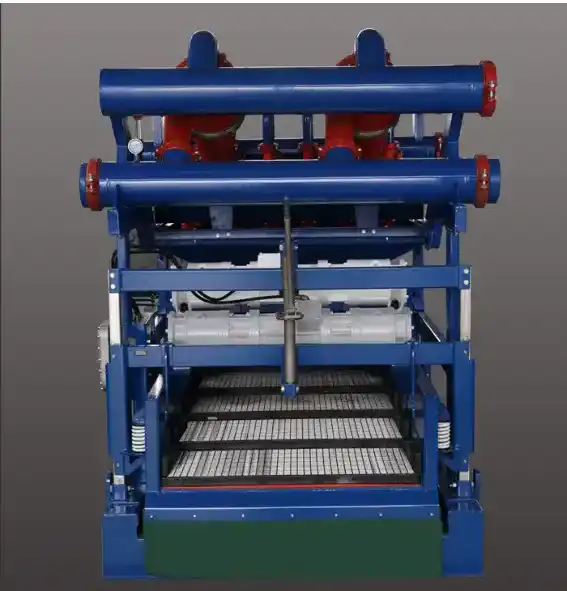

Key Components of Effective Mud Cleaners
Understanding the core elements of mud cleaning systems is essential for making informed decisions in offshore drilling operations. Let's examine the critical components that contribute to efficient solids control and fluid recycling.
Hydrocyclones: The Heart of Mud Cleaning
At the center of any effective mud cleaner are its hydrocyclones. These conical devices use centrifugal force to separate particles from the drilling fluid based on size and density. Modern mud cleaners typically incorporate both desander and desilter hydrocyclones:
- Desander hydrocyclones: Target larger particles, typically in the 44-74 μm range
- Desilter hydrocyclones: Remove finer particles, usually between 20-44 μm
The quality and configuration of these hydrocyclones significantly impact the mud cleaner's overall performance. Some systems offer interchangeable nozzles to adjust underflow, allowing for optimization based on specific drilling conditions.
Shale Shakers: The Final Filtration Stage
Working in tandem with hydrocyclones, shale shakers serve as the last line of defense in the mud cleaning process. These vibrating screens recover valuable drilling fluid and barite while removing remaining solid particles. Key features to consider include:
- Screen type and mesh size
- Vibration mechanism
- Deck angle adjustability
Advanced shale shakers, like those featuring pre-tensioned plane (PTS) screens, offer extended service life and improved efficiency in challenging offshore environments.
Integrated Design: Maximizing Space Efficiency
In the confined spaces of offshore drilling platforms, compact and integrated mud cleaner designs are highly valuable. Look for systems that combine desander, desilter, and shale shaker components into a single, space-saving unit. This integration not only conserves precious deck space but can also simplify maintenance and operation.
Matching Mud Cleaners to Specific Offshore Environments
Selecting the ideal mud cleaner for your offshore drilling operation requires careful consideration of the unique challenges posed by marine environments. Let's explore how to tailor your mud cleaner choice to specific offshore conditions.
Adapting to Variable Drilling Conditions
Offshore drilling environments can change rapidly, requiring mud cleaners with built-in flexibility. Look for systems that offer:
- Adjustable hydrocyclone configurations
- Variable shaker deck angles
- Interchangeable screen options
This adaptability allows operators to fine-tune mud cleaning performance as drilling progresses through different formations or as weather conditions fluctuate.
Corrosion Resistance: A Must for Marine Applications
The harsh, salt-laden atmosphere of offshore environments demands mud cleaners built with corrosion-resistant materials. Consider systems featuring:
- Stainless steel components
- High-grade polymer hydrocyclones
- Protective coatings on vulnerable surfaces
Investing in corrosion-resistant mud cleaners can significantly extend equipment life and reduce maintenance costs in the long run.
Handling High-Pressure, High-Temperature (HPHT) Conditions
Deep-water and ultra-deepwater drilling often involve HPHT conditions that can push standard mud cleaners to their limits. When selecting equipment for these challenging environments, prioritize:
- Robust construction capable of withstanding extreme pressures
- Temperature-resistant seals and gaskets
- Enhanced cooling systems for critical components
By choosing mud cleaners specifically designed for HPHT applications, operators can ensure reliable performance and minimize downtime in demanding offshore scenarios.
ROI Analysis: Investing in High-Quality Mud Cleaners
While the initial cost of a premium mud cleaner may be higher, the long-term return on investment (ROI) often justifies the expense. Let's examine the factors that contribute to a positive ROI when selecting high-quality mud cleaning systems for offshore operations.
Reducing Drilling Fluid Costs
Efficient mud cleaners can significantly reduce drilling fluid consumption by effectively recycling and maintaining fluid quality. Consider the following cost-saving benefits:
- Decreased need for fresh mud additions
- Lower disposal costs for waste drilling fluids
- Improved recovery of expensive additives like barite
Over the course of multiple drilling projects, these savings can quickly offset the initial investment in a high-performance mud cleaner.
Minimizing Non-Productive Time (NPT)
Reliable mud cleaning systems play a crucial role in preventing costly downtime. Advanced mud cleaners contribute to reduced NPT by:
- Maintaining optimal drilling fluid properties
- Preventing formation damage and stuck pipe incidents
- Reducing wear on downstream equipment like mud pumps and drill bits
When evaluating mud cleaner options, consider the potential cost savings associated with improved uptime and reduced equipment failures.
Environmental Compliance and Waste Reduction
Investing in high-quality mud cleaners can help offshore operators meet increasingly stringent environmental regulations. Benefits include:
- Reduced volume of drilling waste requiring disposal
- Lower risk of environmental fines or penalties
- Improved corporate image and stakeholder relations
While difficult to quantify directly, these factors can significantly impact the overall ROI of a mud cleaner investment, particularly in environmentally sensitive offshore areas.
Life-Cycle Cost Considerations
When calculating ROI, it's essential to look beyond the initial purchase price and consider the total life-cycle cost of the mud cleaner. Factors to evaluate include:
- Energy efficiency and operating costs
- Maintenance requirements and spare parts availability
- Expected service life in offshore conditions
- Upgrade and retrofit options to extend equipment lifespan
By taking a holistic approach to cost analysis, operators can make more informed decisions when selecting mud cleaners for their offshore drilling operations.
Conclusion
The efficiency, safety, and environmental compliance of offshore drilling operations are greatly affected by the decision of which mud cleaner to use. Drilling process optimization can be achieved by operators that take the time to learn about critical components, match systems to unique offshore environments, and perform comprehensive return on investment analyses.
Advanced mud cleaning methods developed for the unique demands of offshore drilling are available from CM Energy, a frontrunner in innovative energy solutions. Years of research and development in maritime applications support our TSC brand as the pinnacle of innovation in solids management equipment.
Is your offshore drilling business prepared to take advantage of cutting-edge mud cleaning technology? Contact our team of experts today at info.cn@cm-energy.com to discuss customized solutions tailored to your unique operational needs. Let CM Energy help you maximize efficiency, minimize environmental impact, and drive superior results in your offshore drilling projects.
FAQ
1. What is the primary function of a mud cleaner in offshore drilling?
A mud cleaner's primary function is to remove solid particles from drilling fluid, allowing for the recycling and reuse of valuable drilling mud components. This process helps maintain optimal drilling fluid properties, reduces waste, and improves overall drilling efficiency.
2. How often should mud cleaner components be inspected and maintained in offshore environments?
In harsh offshore environments, it's recommended to perform visual inspections of mud cleaner components daily. More thorough maintenance checks should be conducted weekly, with major servicing typically scheduled every 3-6 months, depending on usage intensity and specific environmental conditions.
3. Can mud cleaners be retrofitted to existing offshore drilling rigs?
Yes, many modern mud cleaning systems are designed with retrofit capabilities in mind. However, the feasibility and complexity of a retrofit project depend on factors such as available space, existing piping configurations, and power requirements. A thorough site assessment by experienced engineers is crucial for successful mud cleaner retrofits on offshore platforms.
