Key Components: Jacking Legs in Offshore Structures
Jacking legs are integral to the functionality of self-elevating platforms, serving as the primary means of raising and lowering the structure above the water surface. These components consist of several critical elements that work in tandem to ensure the platform's stability and operational efficiency.
Main Chord: The Backbone of Jacking Systems
The main chord forms the core of the platform jacking leg, providing the primary load-bearing capacity. TSC, a leading brand in offshore technology, utilizes high-strength materials in their main chord design to withstand the immense forces encountered in ultra-deepwater environments. These components are engineered to resist corrosion and fatigue, ensuring long-term reliability in harsh marine conditions.

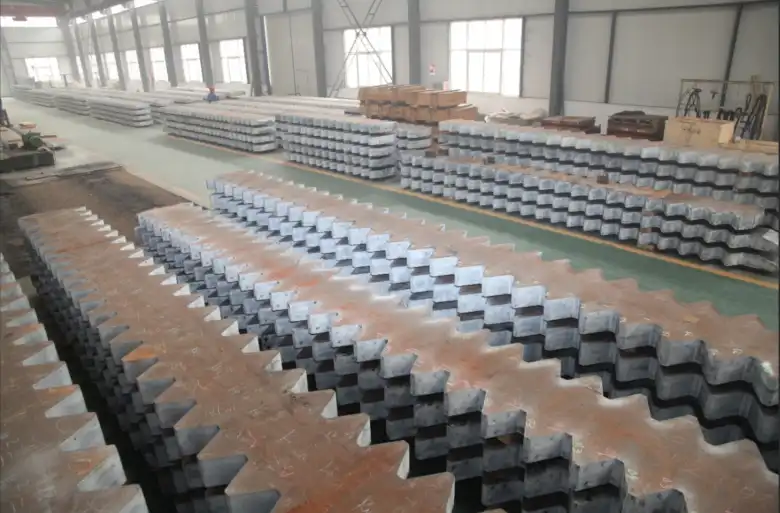

Rack and Pinion Mechanism: Precision Elevation Control
A sophisticated rack and pinion system enables precise control over the platform's elevation. The rack, featuring precisely machined teeth, meshes with gears in the jacking system to facilitate smooth and controlled vertical movement. This mechanism is crucial for maintaining platform stability during changing tidal conditions and severe weather events.
Scales: Enhancing Structural Integrity
Scales, or bracing elements, are incorporated into the jacking leg design to improve overall structural integrity. These components distribute loads evenly across the leg structure, minimizing stress concentrations and enhancing the platform's ability to withstand lateral forces from waves and currents. The integration of scales is particularly important in ultra-deepwater applications where environmental loads can be extreme.
Engineering Challenges: Designing for Extreme Depths
Creating platform jacking legs capable of operating in ultra-deepwater environments presents numerous engineering challenges. These challenges require innovative solutions and advanced materials to ensure the safety and efficiency of offshore operations.
Material Selection: Balancing Strength and Weight
One of the primary considerations in jacking leg design is the selection of materials that offer an optimal balance between strength and weight. Ultra-high-strength steels are often employed to provide the necessary load-bearing capacity while minimizing the overall weight of the structure. CM Energy has made significant strides in developing proprietary alloys that excel in deepwater applications, offering superior strength-to-weight ratios and enhanced corrosion resistance.
Fatigue Resistance: Ensuring Long-Term Reliability
The cyclic loading experienced by jacking legs in ultra-deepwater environments can lead to fatigue-related failures if not properly addressed. Engineers must carefully analyze stress patterns and implement design features that mitigate fatigue accumulation. This may involve optimizing component geometries, incorporating stress-relieving features, and utilizing advanced welding techniques to enhance the fatigue resistance of critical joints.
Hydrodynamic Considerations: Minimizing Environmental Loads
The design of jacking legs for ultra-deepwater platforms must account for the significant hydrodynamic forces encountered at extreme depths. Engineers employ sophisticated computational fluid dynamics (CFD) models to analyze the interaction between the legs and surrounding water, optimizing their shape to minimize drag and vortex-induced vibrations. These analyses inform the development of innovative leg profiles that enhance stability and reduce environmental loads on the structure.
Future Trends: Innovations in Jacking Leg Technology
As the offshore industry continues to push the boundaries of ultra-deepwater exploration, advancements in platform jacking leg technology are driving the development of more capable and efficient offshore structures.
Smart Monitoring Systems: Enhancing Operational Safety
The integration of smart monitoring systems into jacking leg designs is revolutionizing the way offshore platforms are operated and maintained. These systems utilize a network of sensors to provide real-time data on structural health, environmental conditions, and performance metrics. By leveraging advanced analytics and machine learning algorithms, operators can optimize jacking operations, predict maintenance needs, and enhance overall safety.
Advanced Materials: Pushing the Limits of Performance
Research into advanced materials is opening new possibilities for jacking leg design in ultra-deepwater applications. Composite materials, such as carbon fiber-reinforced polymers, are being explored for their exceptional strength-to-weight ratios and corrosion resistance. TSC is at the forefront of this research, developing innovative material solutions that promise to extend the operational capabilities of offshore platforms in extreme environments.
Modular Design: Enhancing Flexibility and Efficiency
The adoption of modular design principles in jacking leg construction is improving the flexibility and efficiency of offshore operations. This approach allows for easier transportation, assembly, and maintenance of platform components, reducing downtime and operational costs. Modular designs also facilitate the adaptation of existing platforms to new operational requirements, extending their useful life and improving their economic viability.
In conclusion, the application of jacking legs in ultra-deepwater platforms represents a critical technological advancement in offshore engineering. As the industry continues to evolve, innovations in materials, design, and monitoring systems will further enhance the capabilities of these essential components, enabling the safe and efficient exploitation of resources in even more challenging environments.
For those seeking cutting-edge solutions in offshore technology, CM Energy stands at the forefront of innovation in platform jacking leg design and manufacturing. With a proven track record of excellence and a commitment to pushing the boundaries of what's possible in ultra-deepwater operations, CM Energy is your trusted partner in navigating the challenges of offshore exploration and production. Whether you're involved in wind turbine installation, mobile offshore drilling, or specialized marine operations, our expertise can help elevate your project to new heights. Contact us today at info.cn@cm-energy.com to learn how our advanced jacking leg technologies can transform your offshore operations and drive your success in the ultra-deepwater frontier.
