Wind Power Propulsion

As a patented three-element rigid sail system recognized globally, Wind Power Propulsion integrates steel and composite materials into its construction. This innovative system leverages automated adjustments of sail angle and camber that respond to real-time signals, enabling it to generate over 2.5 times the lift of traditional single-wing sails, thus achieving maximum aerodynamic efficiency. With AlP certification and design type approval from esteemed classification societies such as DNV and BV, the product has validated its fuel-saving capabilities through DNV-verified real-world vessel operations.

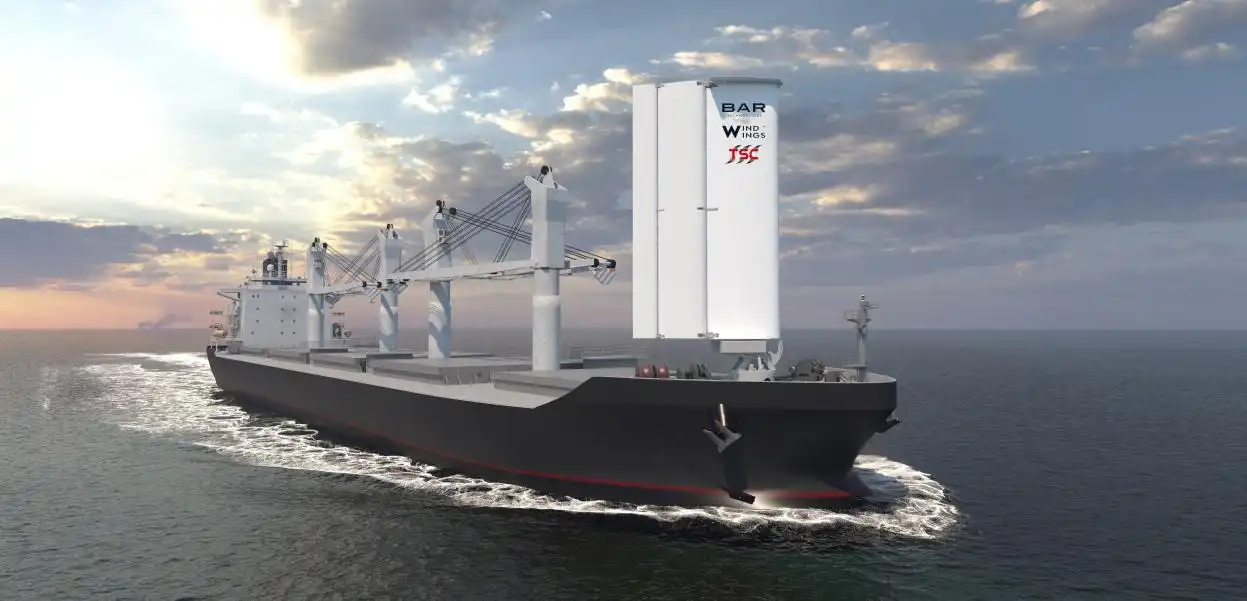

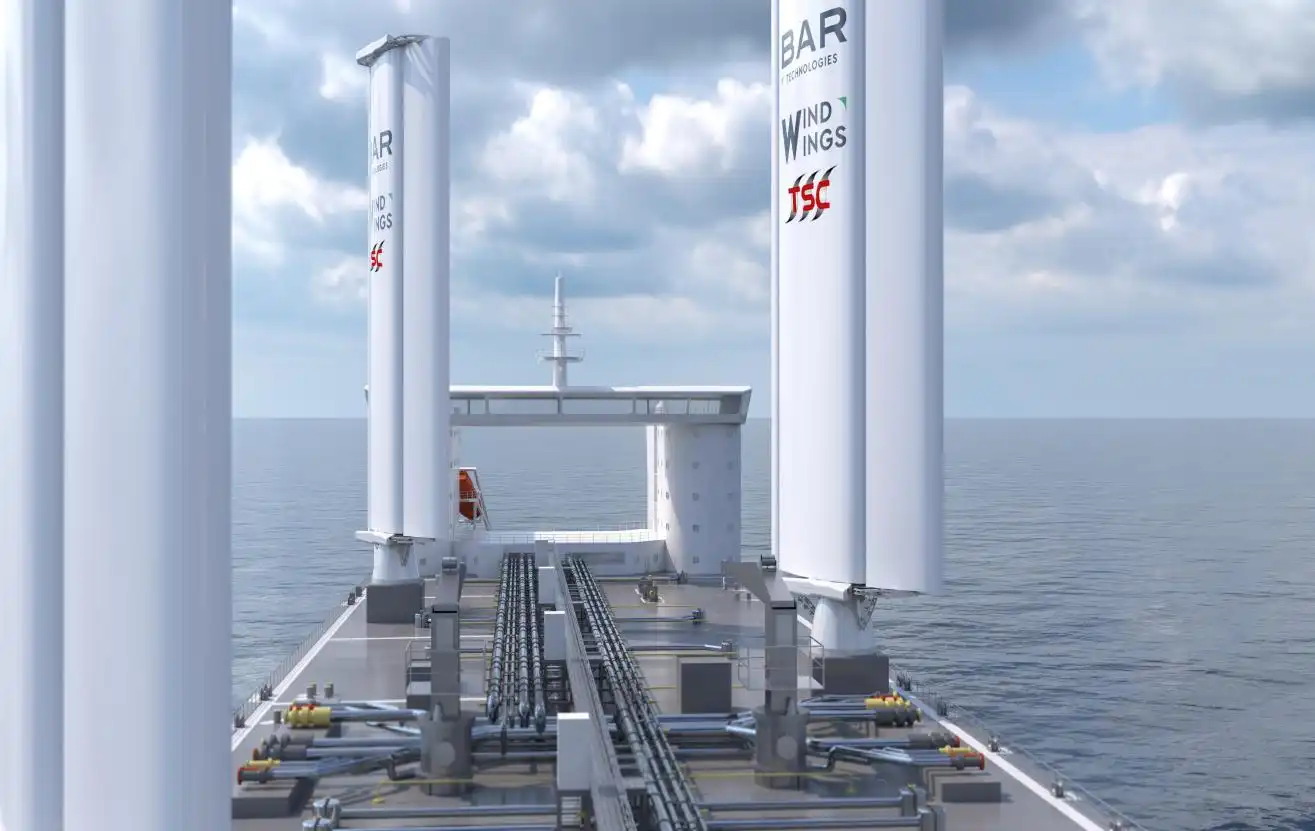

Designed for versatile functionality, the product offers multiple operational modes to effectively manage various sailing conditions, including navigation, berthing, and extreme weather scenarios. When deployed on bulk carriers, the system is strategically situated across decks between cargo holds, allowing for seamless hatch cover operations and interaction with cargo handling equipment. Its cutting-edge design permits rotation into a laydown position, thereby ensuring safe clearance from hatch covers and machinery.

Bulk carriers equipped with Wind Power Propulsion have shown reliable performance throughout more than year of operation, successfully completing calls at over 20 major global ports without incident.

WHY CHOOSE US?

1. Industry-Leading Technology:** Developed in collaboration with BAR Tech to ensure optimal efficiency.

2. Cost-Effective Solutions:** Generates fuel savings of up to 30%, depending on route conditions.

3. Global Certification:** Endorsed by DNV, BV, LR, and CCS with real-world validation.

4. Comprehensive Lifecycle Support:** Provides complete support from installation through maintenance, including IoT monitoring.

5. Customized Solutions:** Offers tailored integration options for both new builds and retrofits.

Product Parameters

Product Details

1. WING CONTROL & SAFETY SYSTEM:

   - Automated control systems equipped with health and safety alarm monitoring.

   - Features a manual operation interface for crew use.

   - Supports ongoing maintenance operations.

2. AUTOMATED ALIGNMENT & CAMBER CHANGE:

   - Optimizes performance based on specific vessel requirements.

   - Specialized software determines the ideal wing orientation and camber shape.

   - Provides real-time thrust performance reporting.

3. WEATHER ROUTING FOR MAXIMUM WIND ADVANTAGE:

   - Advanced routing system specifically designed for wind-assisted vessels.

   - Web-based interface accessible to shore teams and onboard personnel.

   - Includes automated workflow tools.

4. ROBUST CONSTRUCTION:

   - Constructed from ship-grade steel and industrial E-glass composites.

   - Incorporates marine-grade hydraulics along with durable control components.

5. SIMPLE OPERATION & MAINTENANCE:

   - Operation is akin to deck crane handling (no draw gear required).

   - Long-term service packages and maintenance support are available.

6. CLASS APPROVAL:

   - Fully certified by DNV, LR, and BV.

7. EXTENDED LIFESPAN:

   - Designed for a lifespan of 25 years without requiring major component replacements.

   - Transferable between different vessels.

8. TILT MECHANISMS:

   - Available in configurations above-deck and below-deck.

   - Includes tilt tables to meet specific installation requirements.

   - Fixed options are also provided.

Quality Control

1. Raw Material Certification: All materials sourced from ISO-certified suppliers.

2. Classification Society Certification: Fully certified by DNV, LR, and CCS.

Installation

1. Analysis of ship compatibility.

2. On-site assembly procedures.

3. Factory acceptance testing processes.

4. Delivery of products.

5. Installation onboard.
