Sail-Assisted Propulsion
Product Model: 20m, 24m, 37.5m

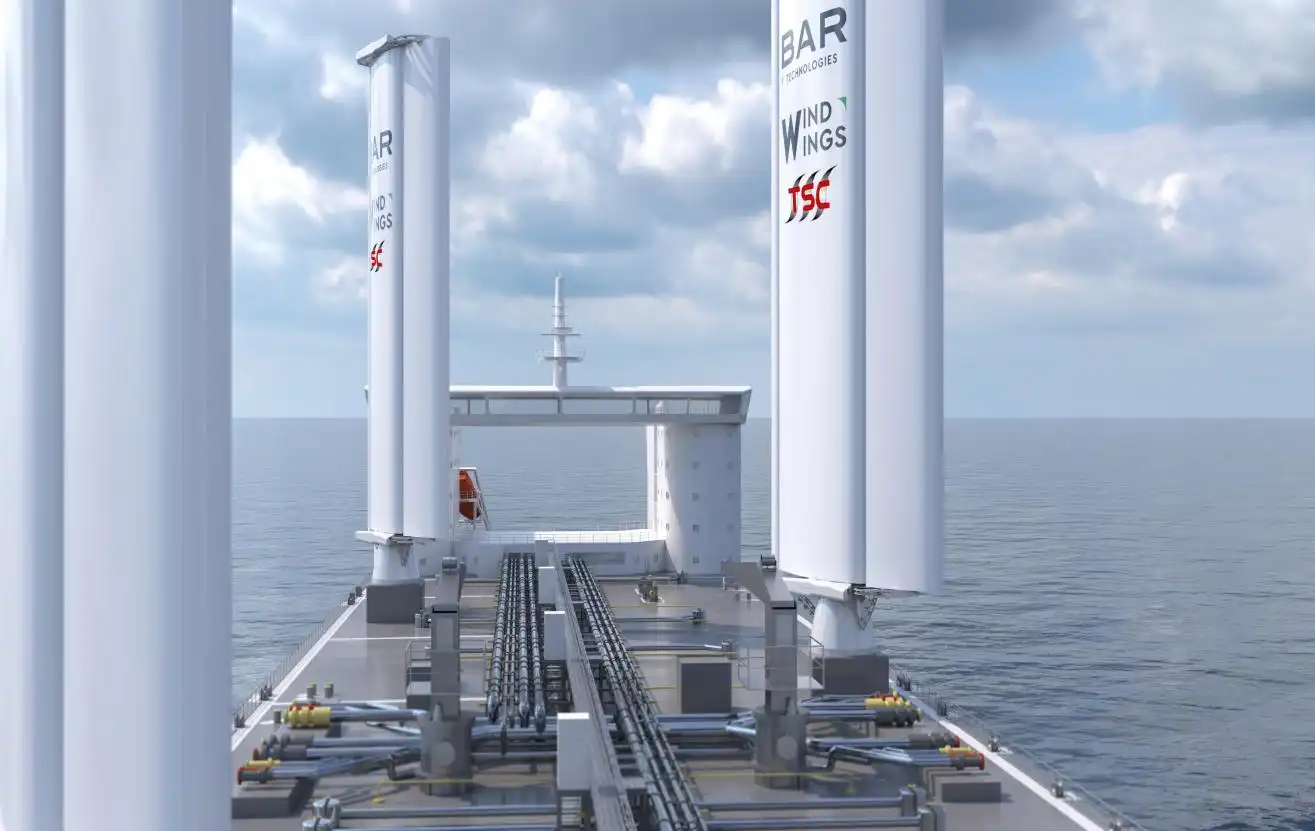

Sail-Assisted Propulsion is a globally patented rigid sail system featuring a three-element design, combining steel and composite materials for unmatched durability. Its real-time signal-responsive technology automatically optimizes sail angle and camber, delivering over 2.5 times greater lift than conventional single-wing sails—ensuring peak aerodynamic efficiency. The system holds AlP certification and has earned design type approval from top classification societies DNV and BV. Additionally, DNV has confirmed its fuel-saving performance through rigorous real-world vessel testing.

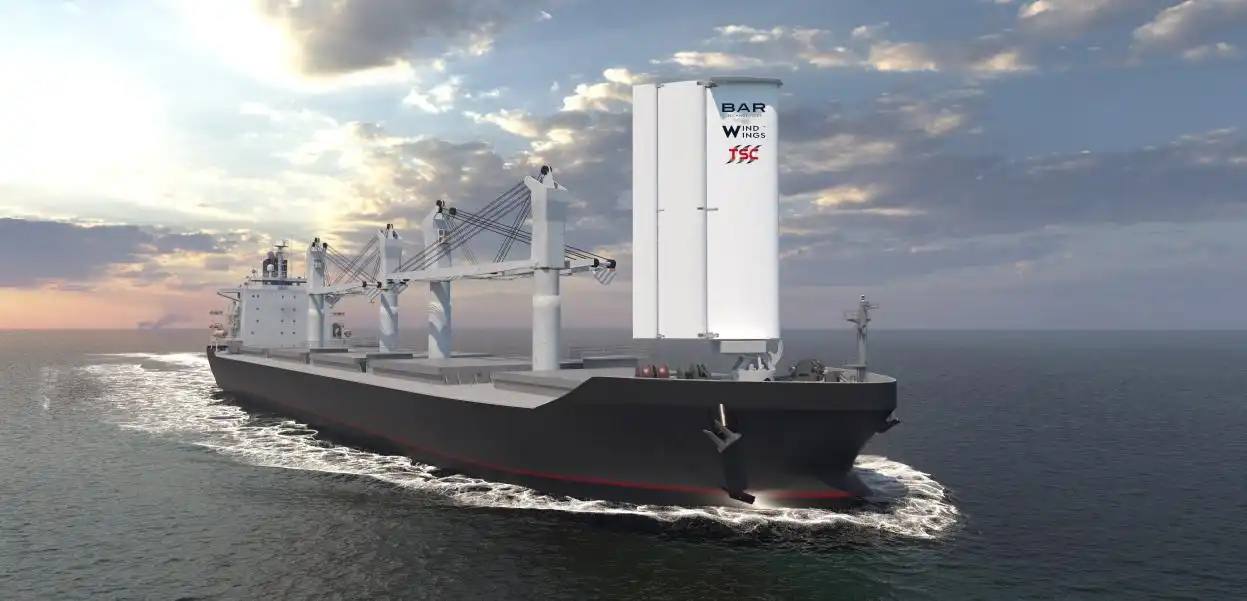

Engineered for adaptability, Sail-Assisted Propulsion supports multiple operational modes to accommodate diverse conditions, from routine navigation and berthing to stormy weather. For bulk carriers, its design integrates seamlessly with hatch cover operations and cargo handling equipment, allowing installation across deck spaces between holds. To prevent interference with machinery or hatch movements, the system can rotate into a secure laydown position when necessary.
For more than a year, bulk carriers equipped with the product have operated flawlessly, calling at over 20 major ports worldwide while maintaining consistent, high-performance reliability.
WHY CHOOSE US?
1. Industry-Leading Technology: Developed in collaboration with BAR Tech for maximum efficiency.
2. Cost-Effective Solutions: Delivers up to 30% fuel savings, depending on route dynamics.
3. Global Certification: Certified by DNV, BV, LR, and CCS, with real-world operational validation.
4. Comprehensive Lifecycle Support: End-to-end assistance, from installation to IoT-enabled maintenance.
5. Customized Solutions: Tailored integration for both new builds and retrofits.
Product Parameters
|
Main Parameter |
|
|
|
Areo Dynamic Span |
37.5m |
|
|
Chord length |
20m |
|
|
Area |
754 ㎡ |
|
|
Type |
3 Element Rigid Wing |
|
|
Fuel Saving |
1.6T/Day/Wing |
|
|
CO2 Reduction |
5.12T/Day/Wing |
|
|
Self-WT |
240 mT/Wing |
|
|
Installation |
Above Deck Surface |
|
|
Vessel |
Bulk Carrier, Tanker |
|
|
Main Parameter |
||
|
|
20m |
24m |
|
Type |
3-Element |
3-Element |
|
Areo Dynamic Span |
20m |
24m |
|
Min.Height from Deck |
23.5m |
27.5m |
|
Chord Folded |
0.525m |
0.525m |
|
Chord |
10m |
10m |
|
Total Weight |
24T |
26T |
|
Power |
Electrical |
Electrical |
Product Details
1. WING CONTROL & SAFETY SYSTEM:
- Automated health/safety monitoring with manual override for crew.
- Maintenance-friendly interface for streamlined servicing.
2. AUTOMATED ALIGNMENT & CAMBER CHANGE:
- Vessel-specific performance optimization via advanced software.
- Real-time thrust reporting and continuous efficiency adjustments.
3. WEATHER ROUTING FOR MAXIMUM WIND ADVANTAGE:
- Dedicated routing system for wind-assisted vessels.
- Web-based access for shore/onboard teams with automated workflow tools.
4. ROBUST CONSTRUCTION:
- Built with ship-grade steel, E-glass composites, marine hydraulics, and durable controls.
5. SIMPLE OPERATION & MAINTENANCE:
- Intuitive operation, akin to deck crane handling.
- Long-term service packages available.
6. CLASS APPROVAL:
- Full certification by DNV, LR, and BV.
7. EXTENDED LIFESPAN:
- 25-year design life without major replacements; transferable between vessels.
8. TILT MECHANISMS:
- Above/below-deck tilt tables for flexible installation; fixed options offered.
Quality Control
1. Raw Material Certification:** ISO-certified suppliers only.
2. Classification Society Certification:** DNV, LR, and CCS approved.
Installation
1. Ship compatibility assessment
2. On-site assembly
3. Factory acceptance testing
4. Product delivery
5. Onboard installation
For more product information about Sail-Assisted Propulsion, please leave a message below.
