20m windwings

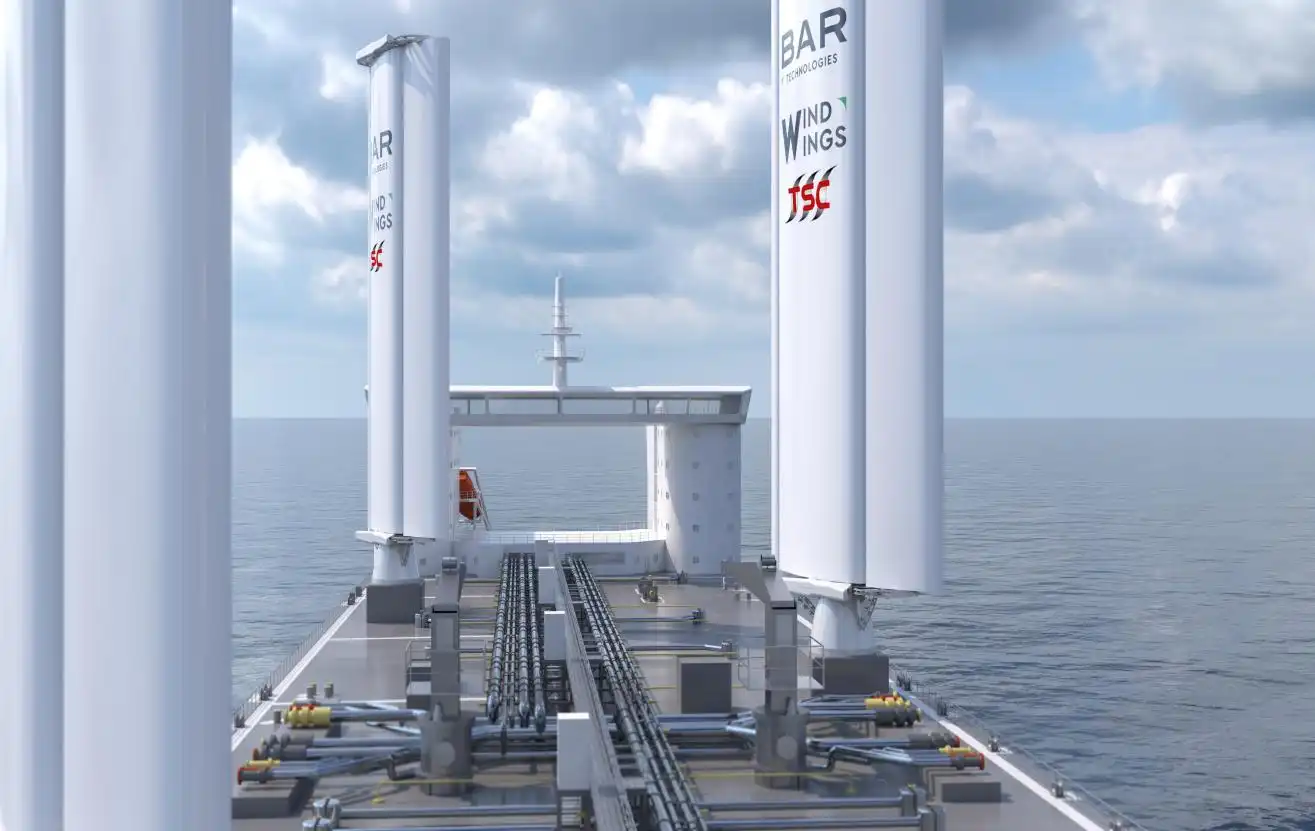

20m windwings is a patented three-element rigid sail, protected by a global patent, that integrates a combination of steel and composite materials. It automatically adjusts the angle and camber of the sail based on collected signals, producing over 2.5 times the lift compared to traditional single-wing sails, thereby optimizing aerodynamic performance. The product has received the AlP certificate along with design type approval from DNV and BV. Currently, the fuel-saving outcomes of the product on actual ships have been validated by DNV.

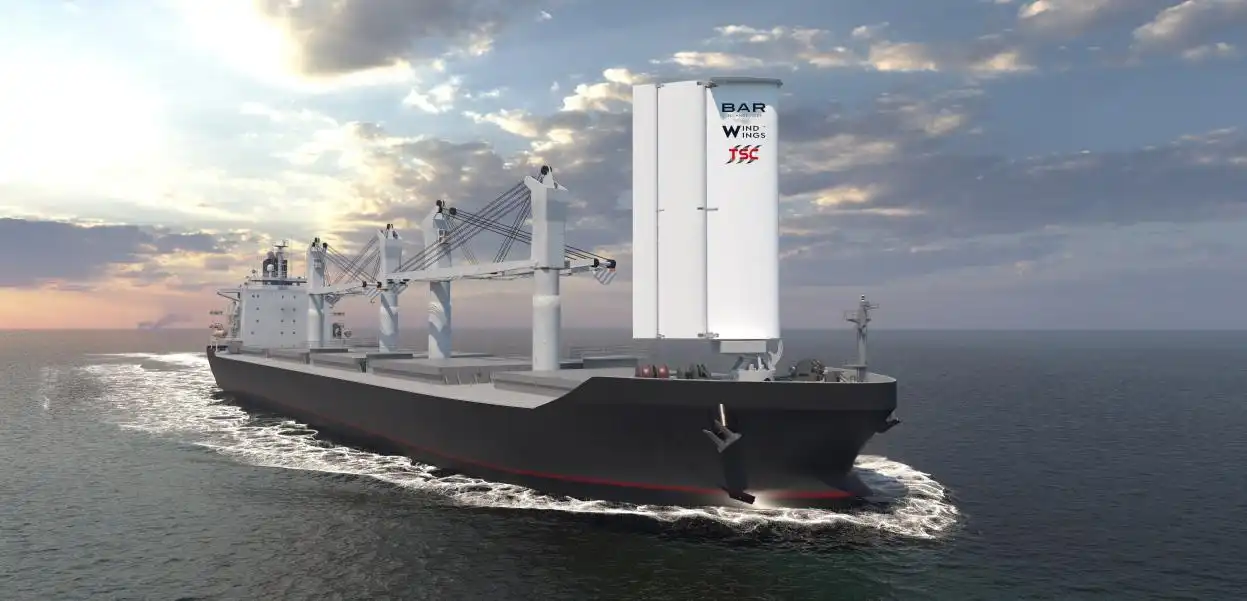

The 20m windwings system incorporates multiple operating modes to accommodate various ship navigation, berthing, and operational conditions, even in storm scenarios. When applied to bulk carriers, it necessitates consideration for hatch cover operations as well as loading and unloading equipment. Consequently, the product can be installed at the cross deck between cargo holds. To address these requirements, the product is designed to rotate into a laydown position, ensuring clearance with hatch covers and loading and unloading machinery.

Currently, bulk carriers outfitted with the product have been operational for over a year, successfully docking and unloading at more than 20 major ports around the globe while demonstrating excellent performance.

WHY CHOOSE US?

1. Industry-Leading Technology: Co-developed with BAR Tech for enhanced efficiency.

2. Cost Savings: Achieve up to 30% fuel reduction depending on route conditions.

3. Global Certification: Approved by DNV, BV, LR, and CCS with validation from real-world applications.

4. Full Lifecycle Support: Comprehensive assistance including installation, maintenance, and IoT monitoring.

5. Customized Solutions: Tailored integration options for both new builds and retrofits.

Product Parameters

Product Details

1. WING CONTROL & SAFETY SYSTEM: Offers complete automation control and health & safety alarm monitoring, featuring a vessel interface for manual wing interaction and maintenance procedures.

2. AUTOMATED ALIGNMENT & CAMBER CHANGE: Takes charge of the performance aspects of control, tailored individually for each vessel. This customized code establishes the optimal wing orientation and camber shape, ensuring maximum fuel savings consistently. It also provides live thrust value reports.

3. WEATHER ROUTING FOR MAXIMUM WIND BENEFIT: A cutting-edge routing package developed exclusively for Wind Assisted Vessels, accessible via a web interface for use by either a shore-based operations team or onboard personnel, equipped with various automated workflow tools to promote efficient utilization.

4. ROBUST CONSTRUCTION: Constructed from "ship-grade" steel, industrial E-glass composites, marine-grade hydraulics, and control components designed for minimal wear.

5. SIMPLE OPERATION & MAINTENANCE REQUIREMENTS: Regular servicing is straightforward and familiar to crew members, similar to handling a deck crane without the draw gear. Long-term maintenance and servicing packages are available.

6. CLASS APPROVAL: Full class approval granted by DNV, LR, and BV.

7. LONG LIFE: Designed, engineered, and approved for a lifespan of 25 years without significant component replacement; units can be transferred between vessels.

8. TILT MECHANISMS: Above and below deck "tilt tables" are available to meet installation needs; fixed options are also possible.

Quality Control

1. Raw Material Certification: Materials sourced from suppliers who are ISO-certified.

2. Classification Society Certification: Approved by DNV, LR, and CCS.

Installation

1. Ship Compatibility Analysis

2. On-Site Assembly

3. Factory Acceptance Testing

4. Product Delivery

5. On-Board Installation

For more product information about 20m windwings, please leave a message below.
