Spares and Services

1. Provide technical consulting service on construction, management, maintenance and overhaul of jack-up platform jacking system, seawater tower jacking system and cantilever beam sliding system, including Spares and Services.

2. Provide condition inspection and assessment service of jacking system and pile leg rack (including special inspection of the jacking system required by the classification society.

3. Providing maintenance and replacement services for the jacking device and its parts (including gears, shafts, bearings, motors, brakes and oils, etc.

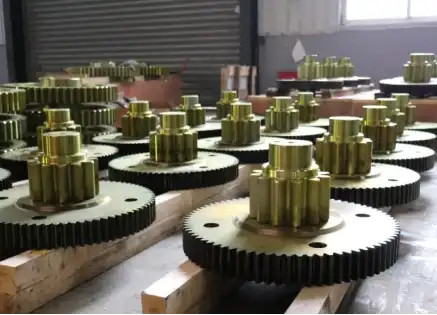

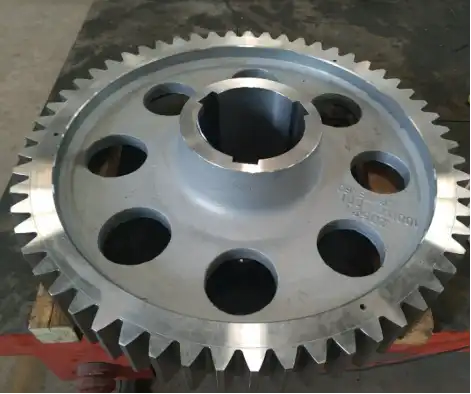

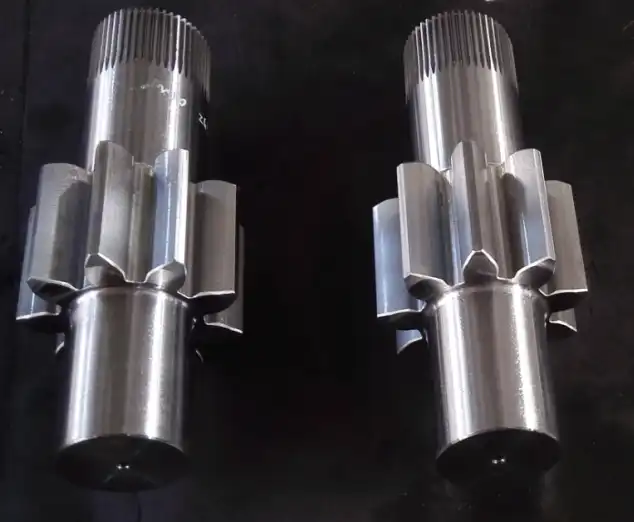

4. Provision of spare parts for gears of jacking devices meeting the requirements of classification societies.

5. Providing on-site repair of pile leg racks.

6. To formulate daily inspection and maintenance protocols for the jacking device for the customer.

7. Provide on-site technical guidance for dismantling and installation of jacking devices.

WHY CHOOSE US?

1. We are one of the earliest localized companies for processing lift spare parts and have started to process the products in 2002.

2. We have provided Spares and Services, including spare parts and health check service, for nearly 50 platforms at home and abroad, with high reputation and good service quality.

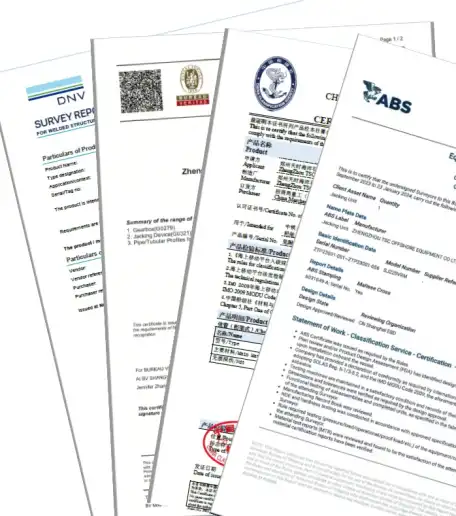

3. We have obtained product certificates from ABS, CCS, DNV and BV.

4. We have rich production experience and mature technology, and can provide high quality service for customers efficiently.​​​​​​​

Product Parameters​​​​​​​

SJ440V-PP Technical Specifications:

● Normal Jacking Capacity: 200MT

● Storm holding capacity:363MT

● Rated jacking speed: 0.35m/min

● Design fatigue Life: 151 hours @ normal jacking

Designed for upgrading old platform jacking units, fully interchangeable with NOV NS400

JKG375 Technical Specifications:

● Normal Jacking Capacity:375kips（170MT）

● Static holding capacity: 710kips（322MT）

● Storm holding capacity:1056kips（479MT）

● Rated jacking speed: 0.644m/min

● Design fatigue life: 151 hours @ normal jacking

Designed for upgrading old platform jacking units, fully interchangeable with MLT LTI375

SJ440V-PR Technical Specifications:

● Normal Jacking Capacity:440kips（200MT）

● Static holding capacity:700kips（318MT）

● Storm holding capacity:1000kips（454MT）

● Rated jacking speed:1.5ft/min（0.45m/min)

● Design fatigue life: 500 hours @ normal jacking

Designed for repair and modification of the jacking system of SMI platforms, completely interchangeable with VFD-440.

SJ650H Technical Specifications:

● Normal Jacking Capacity:650kips（295MT）

● Static holding capacity: 900kips（408MT）

● Storm holding capacity:1200kips（544MT）

● Rated jacking speed: 0.45m/min

● Design fatigue life: 151 hours @ normal jacking

Designed for upgrading old platform jacking units, fully interchangeable with Baker Marine BMC-300

QUALITY CONTROL

1. Classification Society Certification-ABS&BV&CCS&DNV.

Installation

1. Spares analysis

2. Factory acceptance test

3. Product Delivery

4. On-board installation/ On Site Service

For more product information about Spares and Services, please leave a message below.
