Offshore Mechanical Handling Equipment

Iron Roughnecks

TSC engineers and manufactures hydraulically powered iron roughnecks for making up and breaking out drilling tubulars. Durable and rugged, they offer various controls (hydraulic, electro-hydraulic, radio remote) and mounting options (track/pedestal).
Product Description

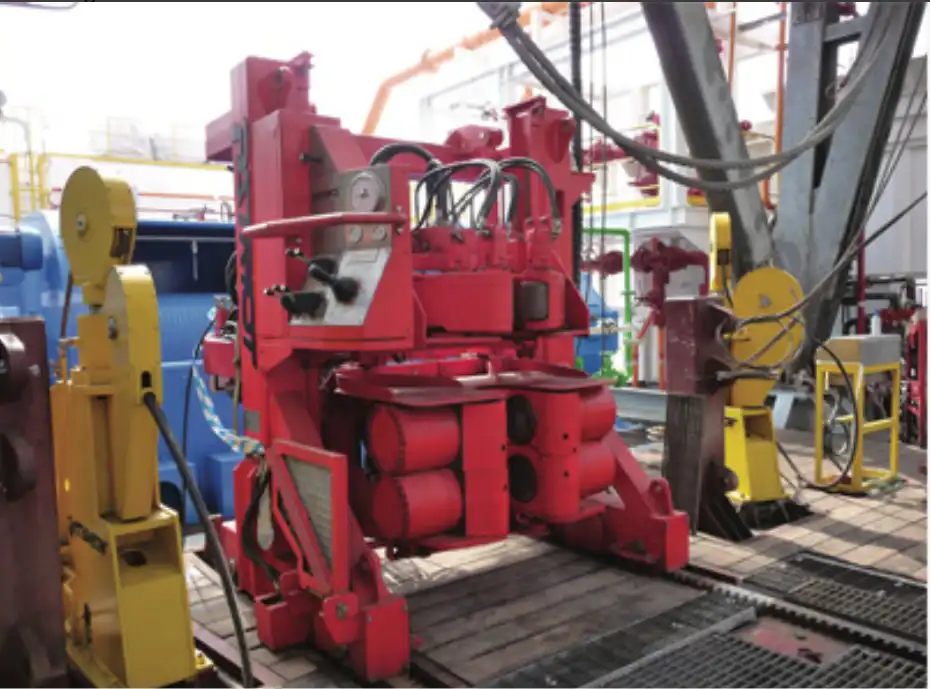

TSC engineers and manufactures a range of hydraulically powered iron roughnecks for making-up and breaking-out drilling tubulars. These durable and rugged roughnecks can be supplied with various controls and arrangement options that include track and pedestal mounted versions. All models are available with hydraulic, electro-hydraulic or radio remote controls.

​​​​​​​product-930-689

Features

1. 2 Jaw or 3 Jaw options

2. Manual, semi or full automatic control modes

3. Automatic clamp pressure setting relative to tubular diameter

4. Well centre and mousehole operations

5. Operation from roughneck, drill floor panel, drillers cabin or radio control with Iron Roughnecks

6. Mousehole tilt accommodated on IRN1000 and IRN2000 models

Specifications

IRN1000

1. Weight (kg): 8000

2. Make up Torque (ft·lb): 100000

3. Break Out Torque (ft·lb): 122000

4. Spinner Speed (rpm): 0-140

5. Stickup Height Min/Max (mm): 740/1540

6. Parameter: Rail Mounted

IRN 2000

1. Weight (kg): 9000

2. Make up Torque (ft·lb): 100000

3. Break Out Torque (ft·lb): 122000

4. Spinner Speed (rpm): 0-140

5. Stickup Height Min/Max (mm): 740/1240

6. Parameter: Rail Mounted

IR120

1. Weight (kg): 6500

2. Make up Torque (ft·lb): 100000

3. Break Out Torque (ft·lb): 120000

4. Spinner Speed (rpm): 0-100

5. Stickup Height Min/Max (mm): 860/1610

6. Parameter: Pedestal Mounted

IR150

1. Weight (kg): 7000

2. Make up Torque (ft·lb): 100000

For more product information about Iron Roughnecks, please leave a message below.
