CMIC’s DW series drawworks are manufactured in accordance with API standards and have received numerous certifications including ABS and DNV. As a type of Hoisting Equipment, the drawwork’s stable performance is ensured through using ultra-strength, high-quality materials as well as a well-known motor. The DW series is characterized by its simple construction, convenient maintenance, light weight and small footprint.
Hoisting Equipment
TSC’s in-house engineering team offers custom rig hoisting designs for Hoisting Equipment, allowing customers to choose optimal solutions tailored to their specific requirements.
Product Description

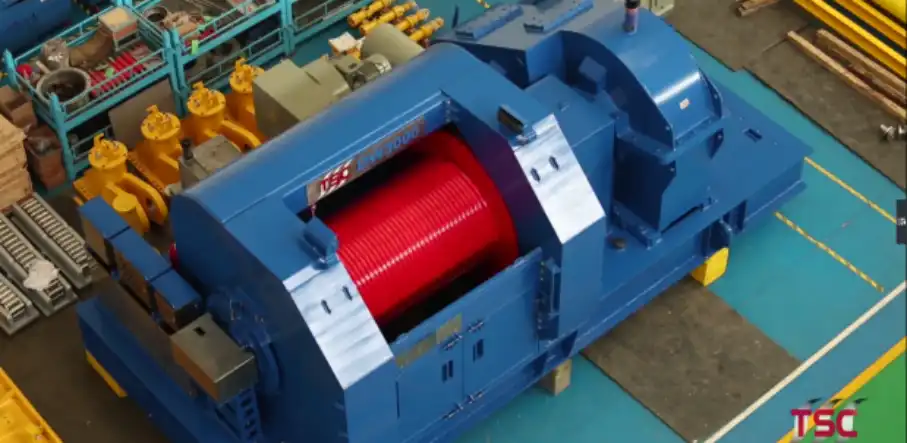

Drawworks
Features
1. Designed to meet the requirements of ABS or DNV
2. The drum uses a LEBUS-groove which is favorable for rope arrangement and maintenance
3. The mechanic-electronic-hydraulic integration technique allows for a more compact layout
4. Skid and frame welds are rigid, accurate and have a small footprint
5. Forced lubrication system increases the drawworks operation convenience and safety
Specifications
DW 2300
1. Power Rating (kW): 1715
2. Weight (kg): 48000
3. Length (mm): 4800
4. Width (mm): 3500
5. Height (mm): 2400
6. Hook Load (MT): 585
DW 3000
1. Power Rating (kW): 2237
2. Weight (kg): 58000
3. Length (mm): 6800
4. Width (mm): 3200
5. Height (mm): 3100
6. Hook Load (MT): 680
DW 4600
1. Power Rating (kW): 3430
2. Weight (kg): 66000
3. Length (mm): 8400
4. Width (mm): 3300
5. Height (mm): 3300
6. Hook Load (MT): 680
DW 6000
1. Power Rating (kW): 4474
2. Weight (kg): 76000
3. Length (mm): 9100
4. Width (mm): 3500
5. Height (mm): 3500
6. Hook Load (MT): 900

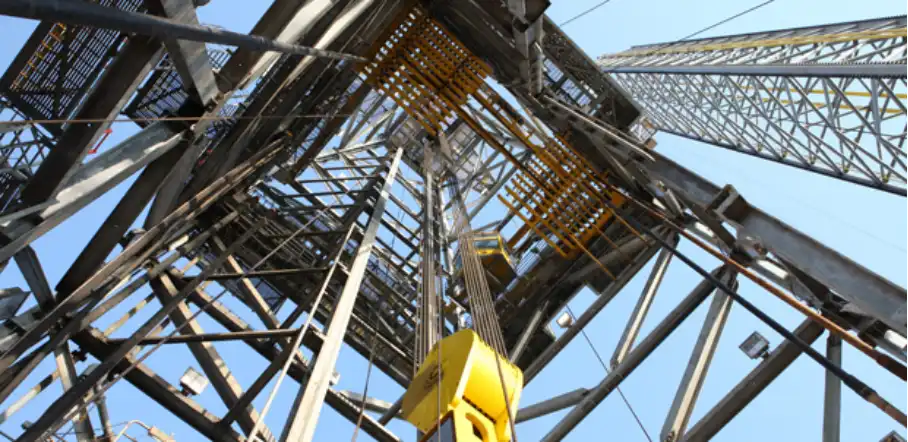

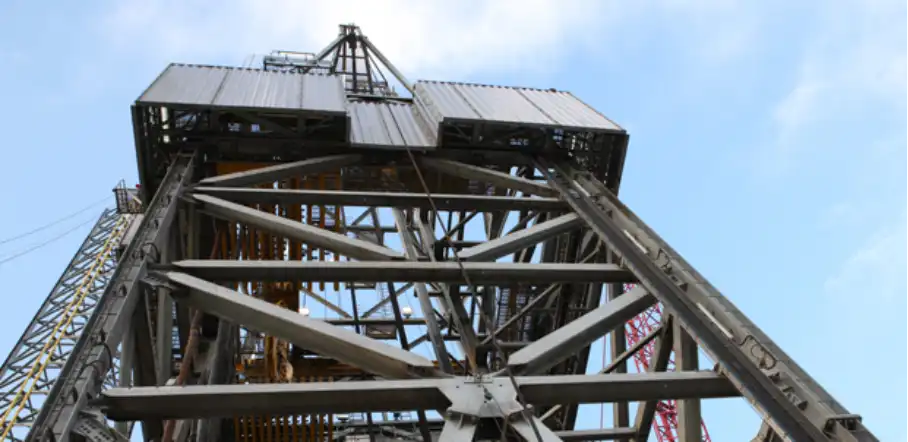

Derrick Structure
TSC manufactures derricks for jack-up rigs, semi-submersible rigs and drillships. As part of Hoisting Equipment, TSC derricks are able to accommodate top drives, travelling blocks, crown blocks, personnel access baskets, racking boards, casing boards, belly boards and other derrick accessories. For semi-submersibles and drillships, TSC offers derrick and crown mounted compensator packages.
Features
1. Designed as per API 4F, API8C and other internationally recognized rules and regulations
2. Hot dip galvanized construction consisting of beam sections, fabricated from killed, normalized and sharp V-notch tested steel with a wide operation temperature range.
3. Maximum hook load ranging from 1500KIPS to 2000KIPS supplied
4. Capacity of setback load ranging from 750KIPS to 1500KIPS supplied.
