Conductor Tensioning System

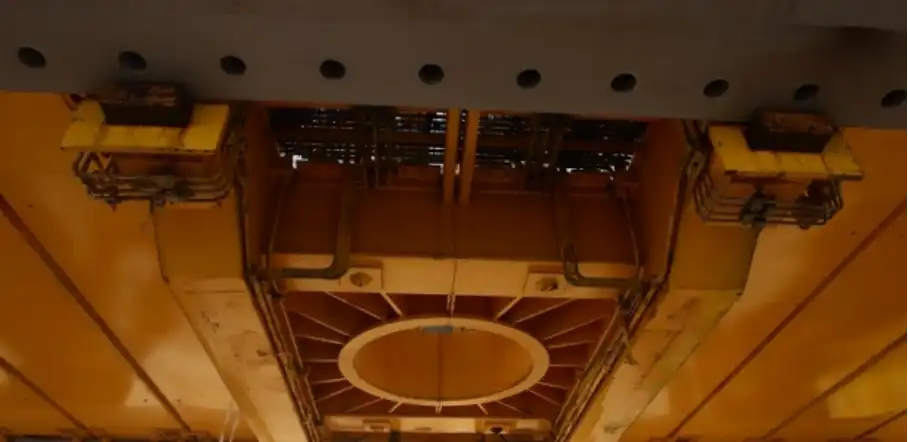

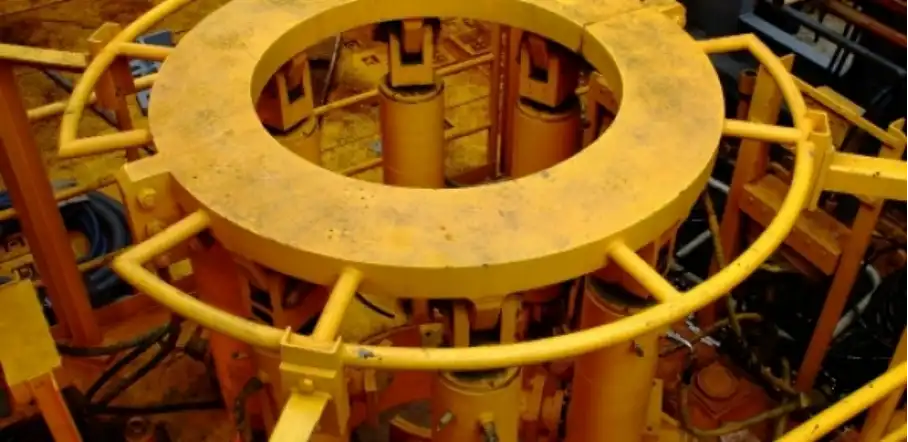

TSC’s Conductor Tensioning System units (CTU) are field proven through installations worldwide. These Conductor Tensioning System units can be custom-designed for a variety of specific rig layouts. TSC offers two types of CTUs: a low capacity, Texas deck mounted "Mini" and a high capacity, platform-mounted "Standard" conductor tensioning system.

Features

1. Can be supplied with a sliding panel system to fully enclose the conductor tensioning platform, or fitted with a dedicated lifting tool to raise them into stored position

2. Can be supplied with secondary tensioning to support a surface BOP stack as part of the Conductor Tensioning System.

3. “Mini” CTUs can be specified with a hydraulic power unit for hazardous area use and are fitted with interchangeable inserts to suit different diameter tubulars

4. Hazardous area electric controls are standard on “Standard” CTUs and include digital displays and links for remote monitoring of the tensioning load

Specification of Standard CTU

1. Cylinder Mounts: 8

2. Primary Tensioning Capacity (MT): 135-275

3. Conductor Diameters Accommodated (inch): 20-36

4. Conductor Aperture Diameter (mm): 1066

5. Horizontal Travel Distance (mm): 9144
