BOP & Subsea Handling Systems
TSC's experienced engineering team provides a full range of heavy handling BOP & Subsea Handling Systems solutions. Whether new build, upgrade or refurbishment, TSC prides itself in delivering excellent service, design, manufacturing, supply, and maintenance for every solution.

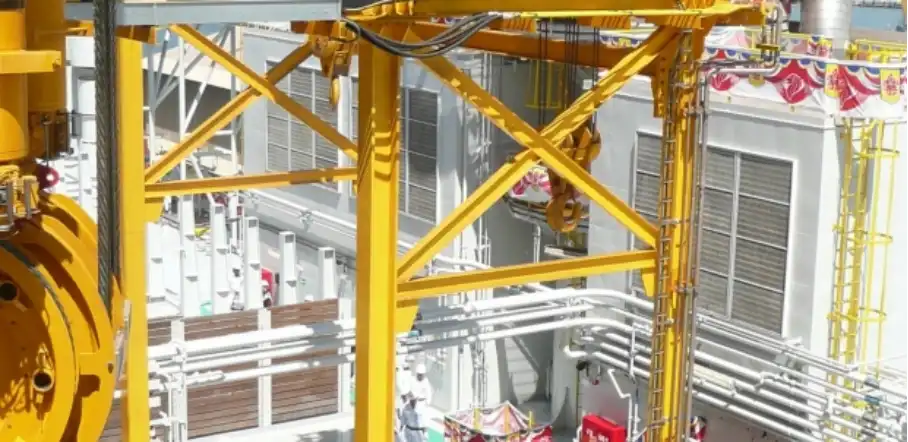

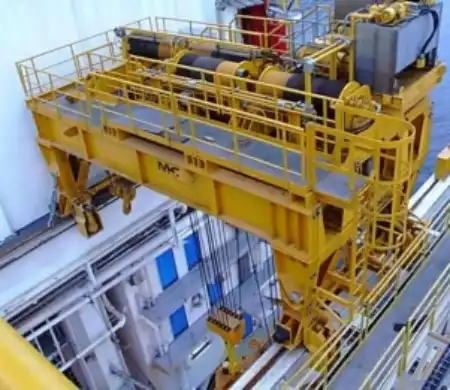

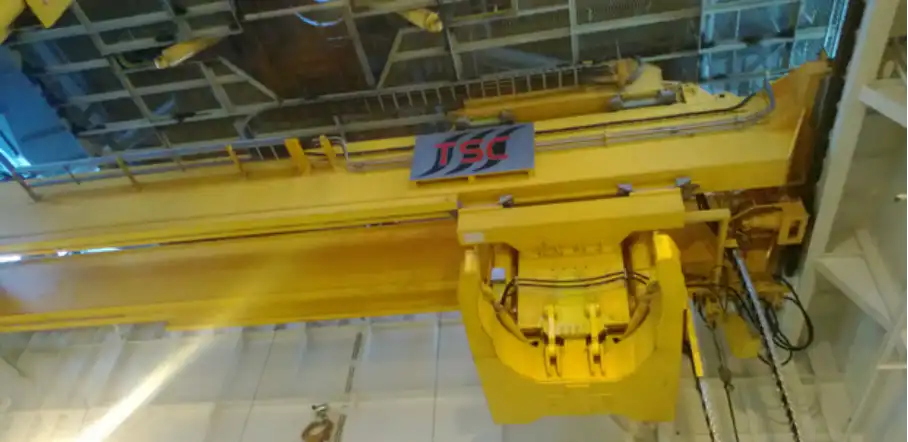

BOP Crane
TSC BOP cranes provide solutions for handling the BOP stack within and between the moon-pool area and BOP storage area. TSC BOP cranes work in conjunction with the BOP transporter, BOP skid and guidance system, creating a complete handling system
Features
1. Goliath, semi-goliath and gantry designs available
2. Span, height of lift, and lift capacity are specific to client requirements
3. Features wire rope hoists with multi-reeved arrangement terminating with lift blocks
4. Optional auxiliary hoists for handling during maintenance
5. Optional triple braking system on hoisting units
6. Optional collision protection, if required
7. PLC controlled. Hydraulically or electrically (VFD) powered

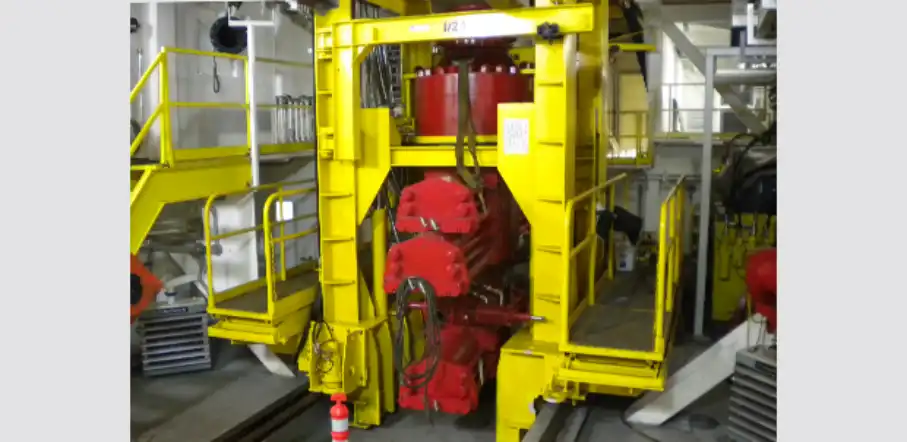

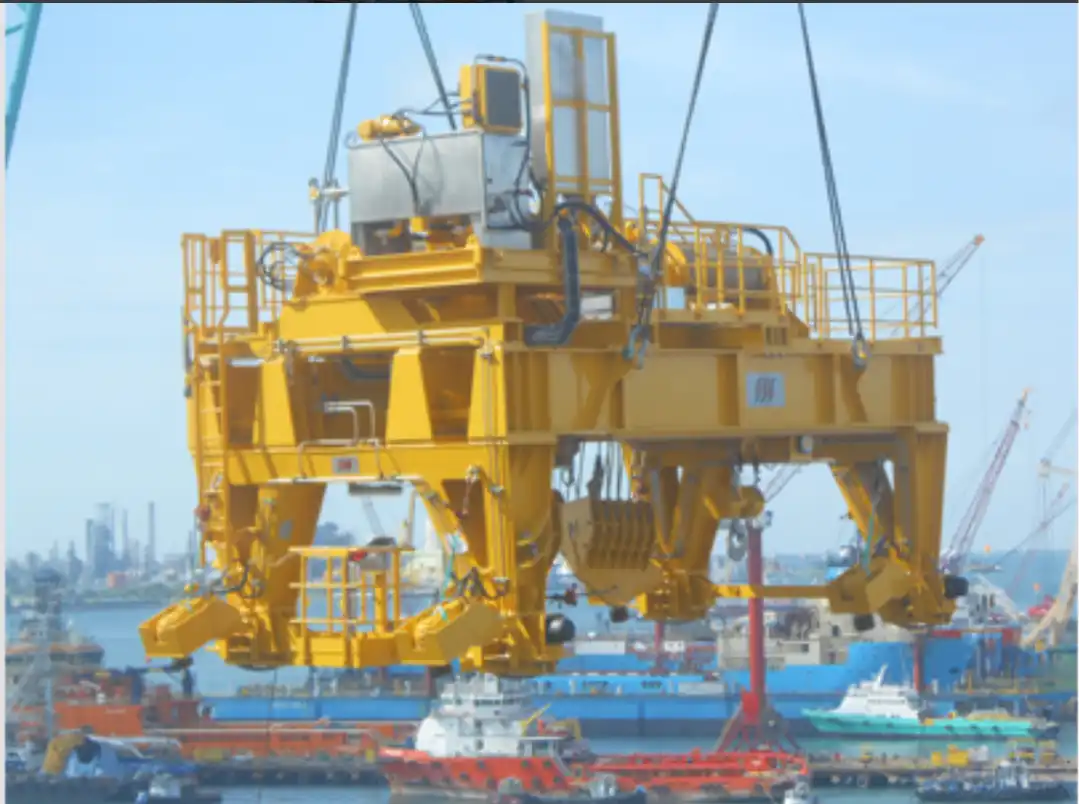

BOP Transporter/Carrier
TSC's BOP transporters/carriers are used to transport the BOP stack within the moonpool area between the well centre and parked positions. The units work in conjunction with the BOP crane, BOP skid and guidance units, creating a complete handling system. TSC transporters/carriers are adaptable to meet a variety of client needs.
Features
1. C' frame, fixed fork and elevating fork designs available
2. Optional hang-off facility available to support riser spider and gimbal
3. Optional integrated test stump (either fixed or retractable) available
4. Radio control, pendant control or control station control options available
5. Integrated with the hydraulic power unit, if required

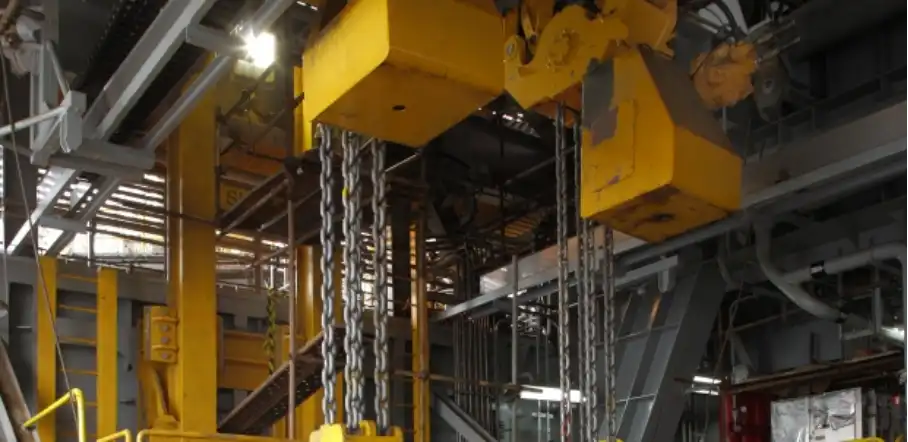

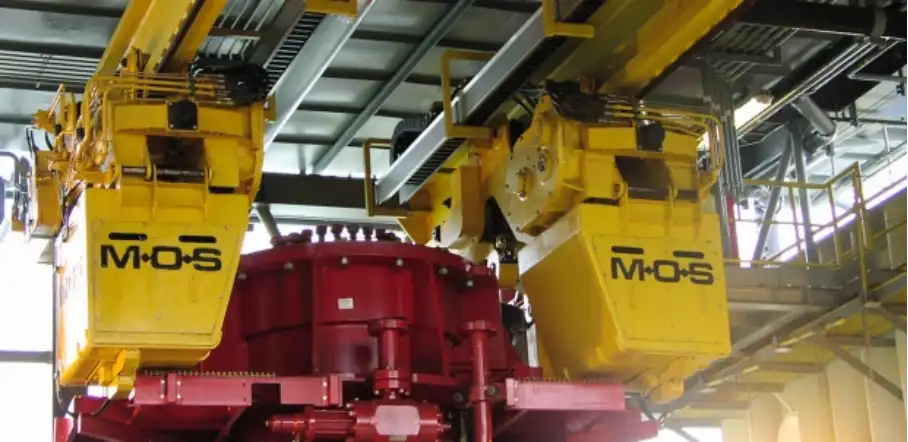

BOP Chain Hoist
TSC offers a wide range of BOP chain hoists as part of their BOP & Subsea Handling Systems, which provide the BOP stack's lift and transverse movements. Typical applications are on jack-up rigs; however, these hoists can also be used on dynamic vessels for the same purpose. TSC BOP chain hoists are adaptable to meet a variety of client needs.
Features
1. Low headroom design to maximize the space envelope
2. Positive rack and pinion drive (no wheel spin)
3. Hydraulic or pneumatic actuation
4. Deck mounted control console, pendant or radio control options available
5. Secondary hangoff points for added safety.

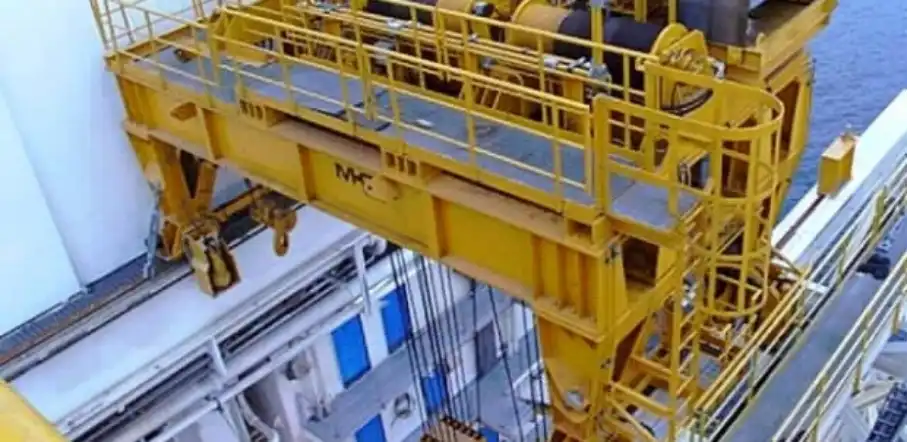

X-Mass Tree Handling Systems
TSC Xmas tree cranes provide solutions for handling the Xmas tree within and between the moonpool area and the Xmas tree storage area. TSC Xmas tree cranes work in conjunction with the Xmas tree carrier, Xmas tree skid and guidance units, creating a complete handling system.
Features
1. Goliath, semi-goliath, and gantry designs are available
2. Span, height of lift and lift capacity are specific to client requirements
3. Features wire rope hoists with multi-reeved arrangement terminating with lift blocks
4. Optional auxiliary hoists for handling during maintenance
5. Optional triple braking system on hoisting units
6. Optional collision protection, if required
7. PLC controlled. Hydraulically or electrically (VFD) powered

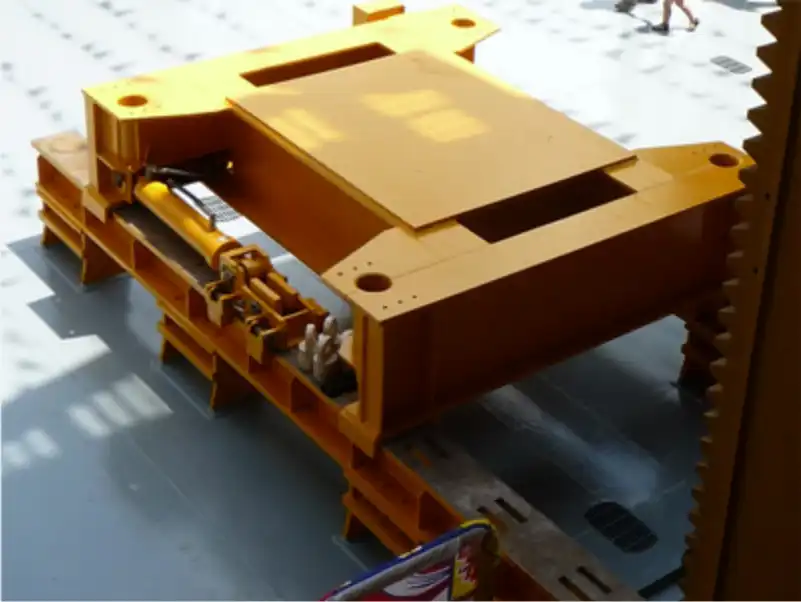

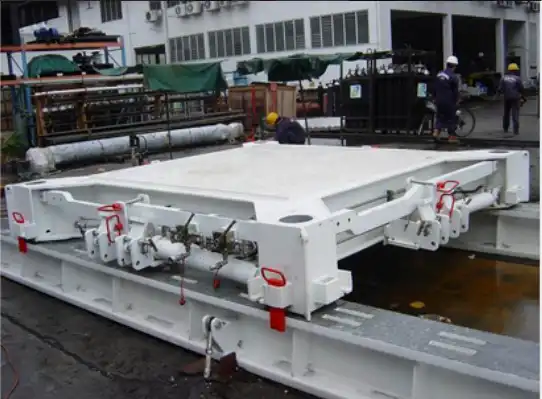

BOP And Xmas Tree Skid Units
TSC provides a wide variety of BOP and Xmas tree skid units for moving subsea packages around the vessel deck, between the storage/assembly location and moonpool. TSC's BOP and Xmas tree skid units feature a robust design with the capacity to meet specific client needs. Moreover, TSC skids are also available for other subsea equipment including: guide bases, templates, mud mats, etc.
Features
1. Low height to maximize available headroom
2. 2-way or 4-way skidding option
3. Alternate designs for skin head (locking pawl, hydraulic gripper pot or locking pin)
4. Optional test stump mounting available
5. Optional guide posts available: Optional keyhole slot available
6. Deck-mounted control console.

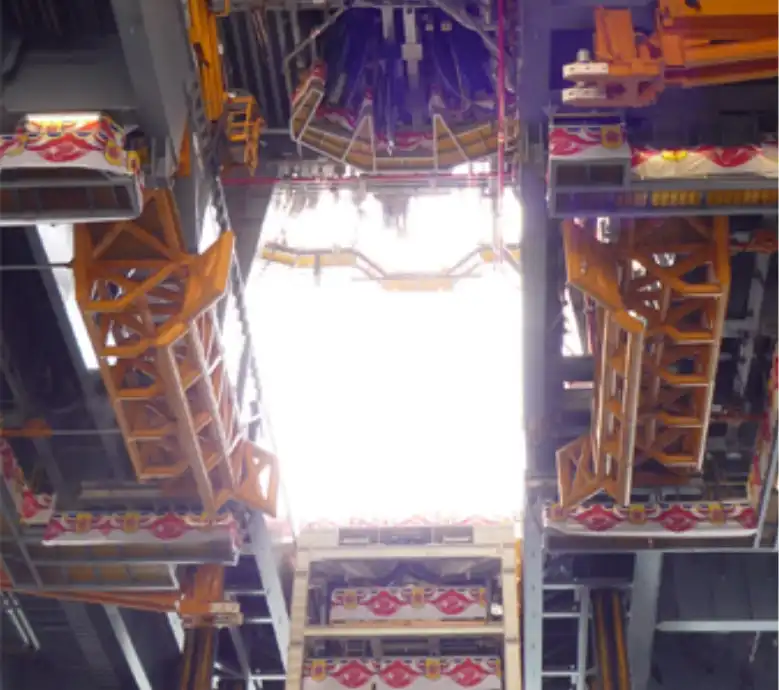

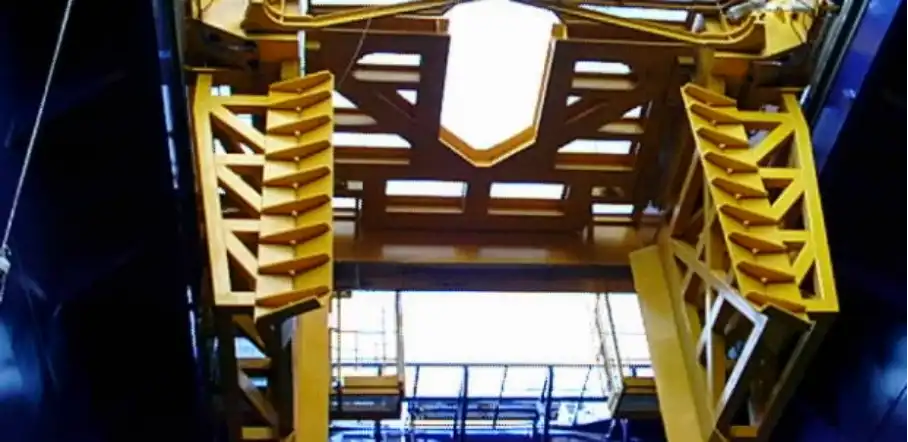

BOP, Xmas Tree & LMRP Guidance System
TSC provides horizontal and vertical guidance systems to prevent potential swing during lifting and stabilizing equipment. TSC guidance systems are offered as either as an accompanying piece of equipment or as a specialized unit, such as splash zone guidance (SZG) and bulkhead guidance. Examples of guidance systems mounted to other equipment includes: SZG mounted underneath BOP transporters, SZG mounted underneath spider beams and capture arms mounted on BOP cranes. Guidance system size and capacity is based on the size of the equipment being handled.
Features
1. Splash zone guidance extends and retracts to capture and release equipment
2. Bulkhead guidance arms latch onto equipment
3. Hydraulic supply from rig
4. Can feature independent operation or can be synchronized with other equipment.
For more product information about BOP & Subsea Handling Systems, please leave a message below.
