A well-designed MFSS typically includes several interconnected subsystems: the methanol storage and transfer system, the fuel conditioning unit, the supply pumps, and the control and monitoring system. Each of these components is carefully engineered to meet the specific requirements of methanol as a marine fuel, ensuring optimal engine performance and compliance with international safety regulations. The system must be capable of maintaining steady pressure and flow under varying engine loads and responding accurately during start-up, shutdown, or switching operations.
Pumps and Valves: Heart of MFSS
At the core of any Methanol Fuel Supply System are the pumps and valves that control the flow of fuel from storage to the engine. These components are crucial for maintaining the precise pressure and flow rates required for optimal engine performance.
High-Performance Pumps for Methanol Handling
The pumps used in an MFSS must be specifically designed to handle methanol's unique properties. They need to be corrosion-resistant and capable of operating at the required pressures and flow rates. Typically, positive displacement pumps are used due to their ability to maintain consistent flow rates regardless of pressure variations.
These pumps are often equipped with variable frequency drives (VFDs) to allow for precise control of fuel flow based on engine demand. This feature ensures that the engine receives the exact amount of fuel needed at any given moment, improving efficiency and reducing waste.
Specialized Valves for Precise Control
Valves in an MFSS play a critical role in directing fuel flow, controlling pressure, and ensuring system safety. Different types of valves are used throughout the system, including:
- Isolation valves: Used to separate different sections of the system for maintenance or in case of emergencies
- Pressure regulating valves: Maintain the correct fuel pressure to the engine
- Check valves: Prevent backflow and ensure fuel flows in the intended direction
- Quick-closing valves: Rapidly shut off fuel flow in emergency situations
These valves must be constructed from materials compatible with methanol to prevent corrosion and ensure long-term reliability. The proper selection and placement of valves are crucial for the overall performance and safety of the MFSS.
Safety Features in Methanol Fuel Systems
Safety is paramount in any fuel system, but it takes on added importance when dealing with methanol due to its toxic and flammable nature. A well-designed MFSS incorporates multiple layers of safety features to prevent leaks, fires, and other potential hazards.
Leak Detection and Containment
One of the primary safety concerns with methanol is its potential for leaks. To address this, modern MFSS designs incorporate sophisticated leak detection systems. These may include:
- Vapor sensors: Detect methanol vapors in the air
- Liquid sensors: Identify the presence of liquid methanol in containment areas
- Pressure monitoring: Detect sudden pressure drops that could indicate a leak
In addition to detection, containment measures are crucial. Double-walled piping and storage tanks provide an extra layer of protection against leaks. Drip trays and spill containment systems are also commonly used to capture and safely contain any leaked fuel.
Fire Suppression and Emergency Shutdown
Given methanol's flammability, robust fire suppression systems are a critical component of any MFSS. These typically include:
- Automatic fire detection systems
- Fixed fire-fighting installations (e.g., water mist systems)
- Emergency shutdown systems that can quickly isolate fuel sources
The emergency shutdown system is designed to rapidly cut off fuel supply in case of a detected leak or fire, minimizing the risk of escalation. This system is typically integrated with the vessel's overall safety management system for coordinated response in emergency situations.
Monitoring and Control: Ensuring Optimal Performance
Advanced monitoring and control systems are essential for the safe and efficient operation of a Methanol Fuel Supply System. These systems provide real-time data on system performance, enable precise control of fuel delivery, and ensure compliance with safety protocols.

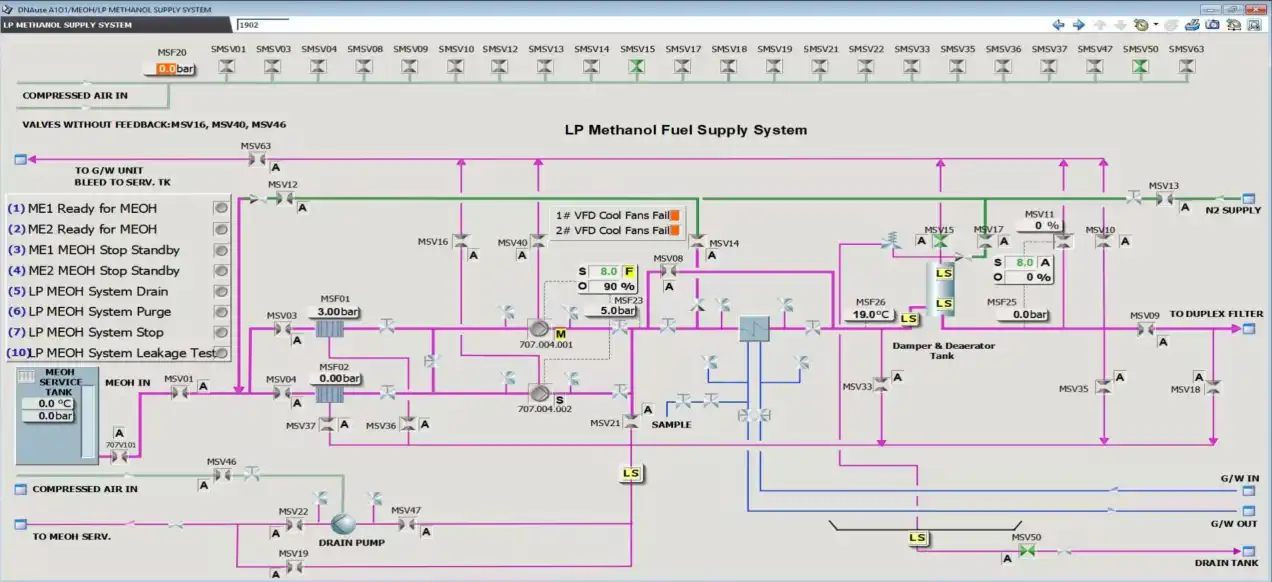

Integrated Control Systems
Modern MFSS installations feature integrated control systems that manage all aspects of fuel supply and engine operation. These systems typically include:
- Programmable Logic Controllers (PLCs) for automated system management
- Human-Machine Interfaces (HMIs) for operator monitoring and control
- Data logging and analysis capabilities for performance optimization
The control system continuously monitors parameters such as fuel pressure, temperature, flow rate, and methanol composition. It adjusts system settings in real-time to maintain optimal performance and efficiency across different operating conditions.
Remote Monitoring and Diagnostics
Many modern MFSS installations incorporate remote monitoring capabilities, allowing onshore technical teams to access system data in real-time. This feature enables:
- Proactive maintenance planning
- Remote troubleshooting and support
- Performance analysis and optimization
Remote monitoring can significantly reduce downtime and improve overall system reliability by allowing experts to identify and address potential issues before they escalate into major problems.
CM Energy, a leading provider of innovative energy solutions, has been at the forefront of developing advanced Methanol Fuel Supply Systems. Our expertise in marine energy solutions and commitment to sustainability make us a trusted partner for shipowners looking to adopt methanol as a cleaner marine fuel.
The TSC brand, known for our cutting-edge technologies in the maritime sector, offers comprehensive solutions for methanol fuel systems that meet the highest standards of safety and efficiency. Our systems are designed to seamlessly integrate with a wide range of vessel types, from bulk carriers to chemical tankers.
In conclusion, a reliable Methanol Fuel Supply System is a complex integration of various components, each playing a vital role in ensuring safe and efficient operation. From the pumps and valves that control fuel flow to the advanced safety features and monitoring systems, every aspect of the MFSS is designed with precision and care.
If you're considering adopting methanol as a fuel for your vessels, whether they're bulk carriers, crude oil tankers, or any other type of ship, CM Energy is ready to provide you with state-of-the-art Methanol Fuel Supply Systems tailored to your specific needs. Our team of experts can guide you through the process of selecting and implementing the right MFSS for your fleet, ensuring compliance with all relevant regulations and optimizing your operational efficiency.
To learn more about our Methanol Fuel Supply Systems and how they can benefit your operations, please contact us at info.cn@cm-energy.com. Our team is ready to assist you in navigating the transition to cleaner, more sustainable marine fuels.
References
- International Maritime Organization. (2023). "Guidelines for the Safety of Ships Using Methyl/Ethyl Alcohol as Fuel."
- American Bureau of Shipping. (2022). "Guide for Methanol and Ethanol Fueled Vessels."
- DNV GL. (2023). "Rules for Classification: Ships - Part 6 Chapter 2 Propulsion, Power Generation and Auxiliary Systems."
- Wartsila. (2022). "Methanol as a Marine Fuel: Technical and Operational Considerations."
- MAN Energy Solutions. (2023). "Methanol Fuel Supply Systems for Two-Stroke Engines."
- Society for Gas as a Marine Fuel. (2022). "Guidelines for Low-Flashpoint Fuel Supply Systems."
