How to Calibrate an AHC Crane for Maximum Precision?

Calibrating an AHC crane (Active Heave Compensation crane) for maximum precision is a critical process that ensures optimal performance in offshore operations. To calibrate an AHC crane for maximum precision, you need to follow a systematic approach that includes sensor calibration, parameter fine-tuning, and rigorous testing. Proper calibration allows the crane to accurately compensate for vessel motions, providing stable and precise load handling even in challenging sea conditions. This comprehensive guide will walk you through the essential steps to calibrate your AHC crane and achieve peak performance.

Essential Steps in AHC Sensor Calibration

The foundation of accurate AHC crane operation lies in properly calibrated sensors. These sensors measure vessel motions and provide crucial data for the compensation system. To ensure optimal performance, follow these essential steps:

Sensor Alignment and Zeroing

The first step in ensuring accurate crane operation is to align the motion reference unit (MRU) with the crane's center of rotation. This alignment is crucial because it sets the foundation for precise motion detection during lifting operations. Once the MRU is correctly positioned, the next step is to zero the sensors, which involves establishing a baseline for the system. Zeroing the sensors ensures that measurements are referenced from a stable, known position, eliminating any potential errors. This process often requires specialized software to reset sensor outputs when the vessel is in a stationary and stable condition, allowing for reliable performance during active operations.

Accelerometer and Gyroscope Calibration

To ensure that the MRU can detect both linear and angular motions accurately, the accelerometers and gyroscopes need to be calibrated. Calibration typically involves placing the sensors in various orientations and comparing their outputs against known gravitational and rotational references. This procedure ensures that the crane's Active Heave Compensation (AHC) system can respond correctly to any vessel movements. Accurate calibration is essential for maintaining stability during heavy lifting operations, as it allows the AHC crane to account for even the smallest changes in motion, ensuring optimal performance and safety.

Environmental Compensation

Environmental factors, such as temperature variations and magnetic interference, can significantly affect sensor readings. While many modern MRUs come with built-in temperature compensation to address these fluctuations, it is still essential to verify and adjust these settings as needed. Furthermore, the sensors should be properly shielded from magnetic disturbances, which can arise from nearby metal structures or equipment. Ensuring that the MRU is calibrated to compensate for these environmental influences helps maintain accurate sensor readings, preventing errors that could lead to instability or unsafe lifting conditions. Proper environmental compensation ensures that the AHC system remains effective, even in challenging operating environments.

Fine-Tuning Motion Compensation Parameters

Once the sensors are properly calibrated, the next step is to fine-tune the motion compensation parameters. This process involves adjusting the algorithms that translate sensor data into crane movements:

Gain Adjustment

Set the appropriate gain values for each axis of motion compensation. These gains determine how aggressively the crane responds to detected vessel movements. Start with conservative values and gradually increase them while monitoring system stability. The goal is to find the optimal balance between responsiveness and smooth operation.

Filter Configuration

Configure the motion filtering parameters to remove noise and unwanted high-frequency movements while preserving the essential motion data. This typically involves setting appropriate cut-off frequencies and filter types (e.g., low-pass, band-pass) to match the characteristics of your vessel and operational conditions.

Phase Compensation

Adjust the phase compensation settings to account for any delays between sensor detection and crane response. This is particularly important for maintaining synchronization between the crane's movements and the actual vessel motions. Fine-tuning phase compensation helps prevent overshooting or lagging in the AHC crane's corrective actions.

Verifying Calibration: Precision Tests and Adjustments

After completing the initial calibration and parameter adjustments, it's crucial to verify the AHC crane's performance through a series of precision tests:

Static Load Tests

Conduct static load tests by suspending known weights at various boom positions and monitoring the crane's ability to maintain a stable position. These tests help identify any remaining inaccuracies in sensor calibration or compensation parameters. Make fine adjustments as needed based on the observed performance.

Dynamic Motion Simulations

Perform dynamic motion simulations to evaluate the crane's response to various sea states. This can be done using specialized testing equipment that simulates vessel movements or by conducting controlled tests in actual offshore conditions. Analyze the crane's ability to maintain load position and make any necessary refinements to the compensation algorithms.

Operational Scenario Testing

Test the AHC crane in a range of operational scenarios that reflect your typical working conditions. This may include load transfers between vessels, precision placement of subsea equipment, or extended lifting operations. Monitor and record the crane's performance, paying close attention to factors such as load stability, positioning accuracy, and overall system responsiveness.

Long-Term Performance Monitoring

Implement a system for ongoing performance monitoring and periodic recalibration. Environmental factors, mechanical wear, and changes in vessel characteristics can all affect AHC performance over time. Regular assessments and adjustments ensure that your crane maintains optimal precision throughout its operational life.

Call to Action: Elevate Your Offshore Operations with CM Energy's AHC Crane

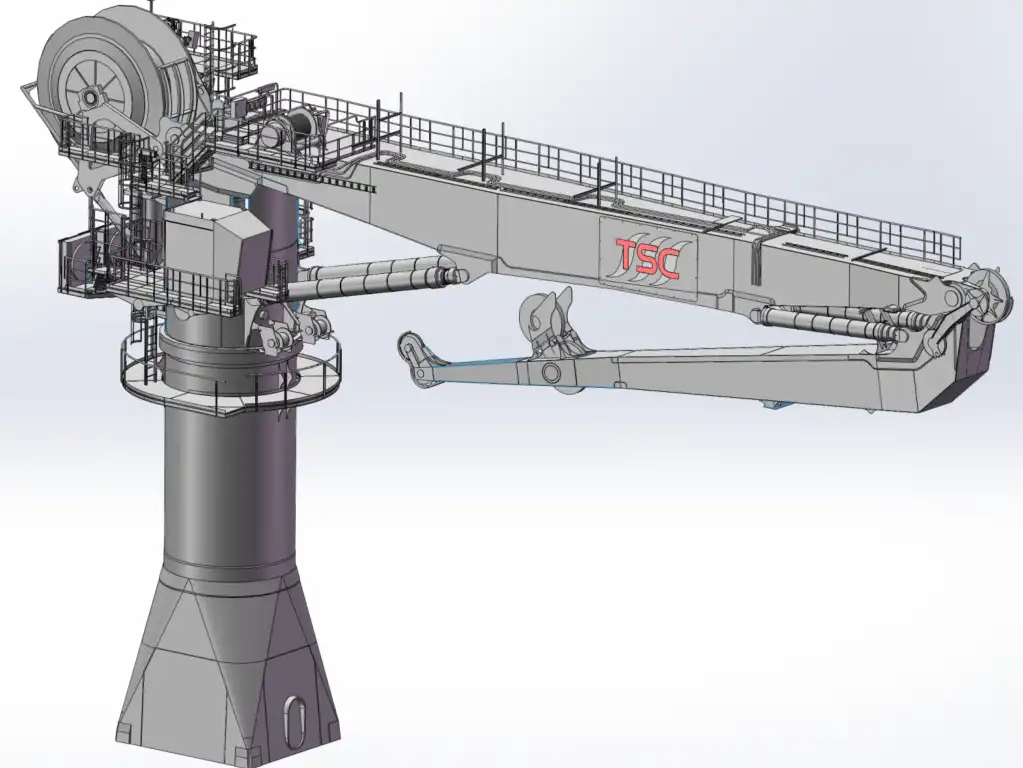

When it comes to precision and reliability in offshore crane operations, CM Energy stands at the forefront of innovation. Our advanced AHC crane systems, developed under the TSC brand, offer unmatched performance and ease of calibration. With industry-leading sensor technology and intuitive control systems, TSC AHC cranes deliver exceptional stability and accuracy in even the most challenging marine environments.

Experience the difference that expert engineering and cutting-edge technology can make in your offshore operations. Contact CM Energy today to learn how our AHC crane solutions can enhance your productivity and safety. Our team of specialists is ready to provide personalized support and tailored solutions to meet your specific needs.

For more information or to schedule a consultation, please reach out to us at info.cn@cm-energy.com. Let CM Energy be your partner in achieving new heights of precision and efficiency in offshore lifting operations.
