How do fixed boom cranes ensure stability in offshore environments?

When your vessel faces 15-foot waves and 40-knot winds, equipment failure isn't just costly—it's catastrophic. Offshore lifting operations demand unwavering reliability, yet many procurement managers struggle to identify which crane systems genuinely deliver stability when conditions turn hostile. Understanding how modern offshore cranes maintain operational integrity separates successful projects from expensive disasters.

Fixed boom cranes ensure stability in offshore environments through integrated structural engineering, advanced hydraulic systems, and platform-specific anchoring solutions. These cranes utilize corrosion-resistant materials, real-time load monitoring, and dynamic compensation technologies to counteract wave-induced motion, maintaining safe lifting operations even during challenging sea states. Their rigid boom design, combined with sophisticated foundation integration, creates a dependable lifting solution across oil and gas platforms, wind turbine installations, aquaculture vessels, and marine service ships.

Understanding Fixed Boom Cranes in Offshore Settings

Offshore operations have their own problems that equipment on land never has to deal with. Ocean waves that move things around all the time, constant exposure to saltwater, and unpredictable weather patterns make it so that only specially designed tools can live. Fixed Boom Cranes are the most important tool for lifting things offshore because they are very stable and don't need to be complicated to operate.

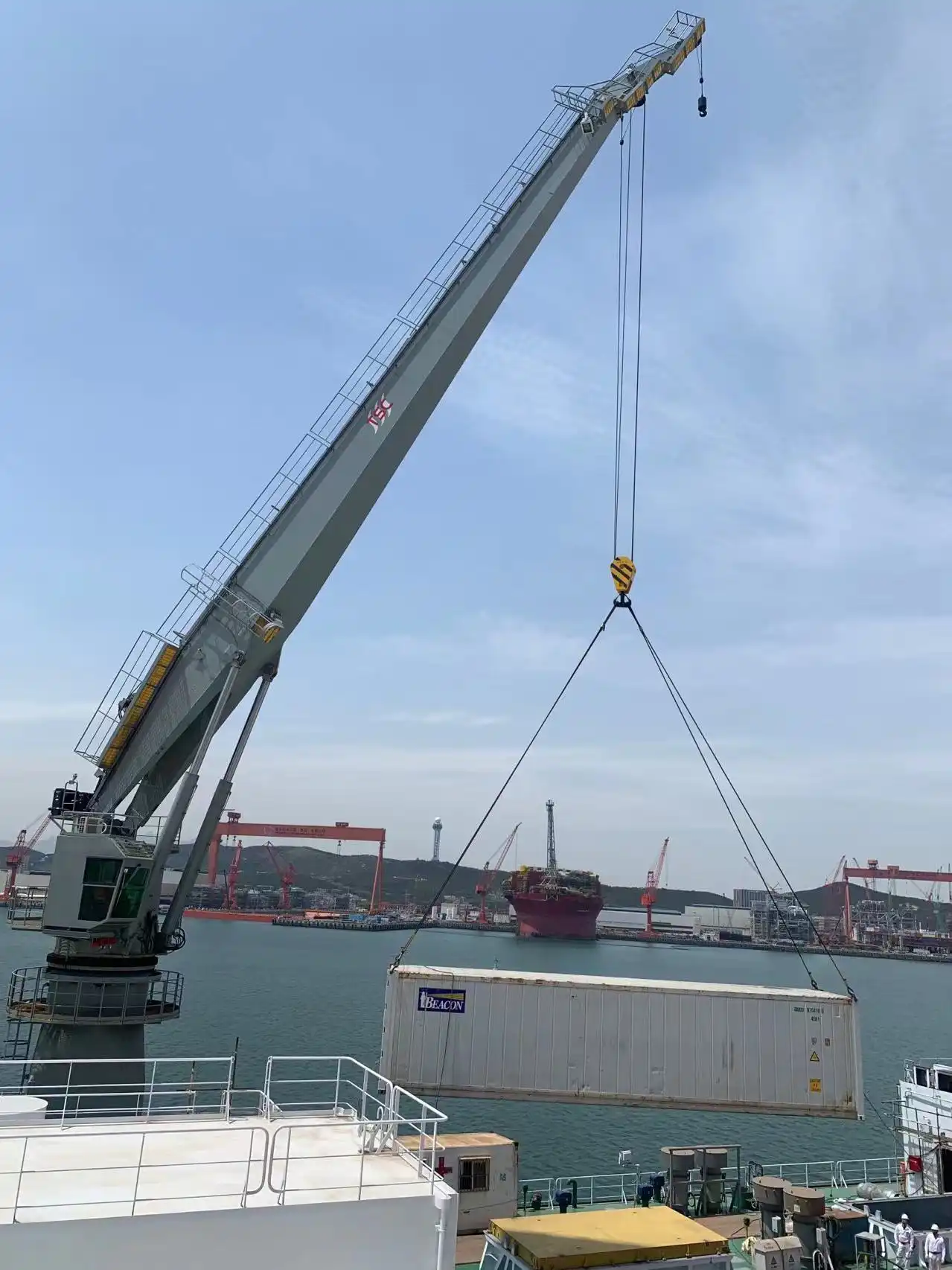

What Defines a Fixed Boom Crane

The boom on these cranes is solid and goes from the base platform to the load point, unlike flexible or telescoping systems. With this simple shape, there aren't any multiple pivot points that could cause instability. The length and angle of the boom stay the same while it's in use. This makes load paths that engineers can accurately calculate. When mounted on offshore platforms or ships, this predictability is very helpful for planning safe operations.

Common Offshore Applications

Offshore oil platforms use these lifting devices to move tools from supply ships to production decks. They are used by wind farm installation vessels to place parts while turbines are being put together. They are needed by aquaculture companies to move nets and feed to fish farms that are far away. They are used by engineering service ships to discharge tools under the water. All of these fields are served by TSC Fixed Boom Cranes, which have load sizes ranging from 8 to 50 tons and are built to work well in harsh marine settings, where the cost of the project depends on keeping operations running smoothly.

Why Stability Matters Offshore

Unstable platforms during lifts pose very high risks. A crane that isn't safe could drop loads worth millions of dollars, hurt people, or damage important infrastructure. Offshore projects lose between $50,000 and $500,000 every day because of broken equipment. This depends on the size of the project. These direct costs are made worse by insurance claims, investigations by regulators, and damage to the company's reputation. Choosing to buy proven stability engineering protects both people's safety and the project's ability to succeed.

Key Factors Ensuring Stability of Fixed Boom Cranes Offshore

Stability doesn't just happen; it's the result of engineering decisions that are carefully thought out to deal with problems that arise offshore. Knowing about these design elements helps people who buy things compare different systems and tell the difference between marketing claims and real capabilities.

Structural Design and Material Selection

Material science is the basis for how stable an ocean crane is. High-strength steel metals can withstand both mechanical stress and saltwater rust, which would break down most materials in just a few months. Hexagonal boom shapes spread torsional forces more evenly than round parts, so they don't twist when side loads are applied. Welded construction using DNV-approved methods gets rid of the weak spots that bolted assemblies create. TSC uses these tried-and-true methods on all of our products, which guarantees the Fixed Boom Crane's structural integrity for its 25-year design life.

Load path engineering makes sure that forces move through a building in a way that can be predicted. Every part, from the hook block to the tripod base, is the right size to handle the maximum load with safety in mind. Stress concentrations are found using finite element analysis during planning, which is done before production starts. With this strict approach, the structure of the crane itself helps keep things stable instead of becoming a problem during difficult lifts.

Advanced Load Management Systems

Modern offshore cranes have advanced monitoring features that equipment on land doesn't always have. Load cells measure the actual weight of the suspended object in real time and compare it to the stated capacity for the current setup of the boom. Moment limiters figure out what will happen when the load weight and the shape of the boom work together. This stops operations that would go beyond the safe limits of stability. Not only do these systems warn users, they stop dangerous actions before they happen.

Anti-two-block systems stop the hook from moving up before it hits the tip of the boom. This keeps the structure from being overloaded. Sensors that measure wind speed are built into control systems. When conditions get too dangerous, operations are automatically stopped. Heel and trim sensors check the angle of the platform and change the operational limits based on where the vessel is. This multi-layered approach creates many safety nets that keep things stable in offshore conditions that are always changing.

Dynamic Compensation Technologies

Offshore platforms and ships are always moving because of the waves, which presents problems that fixed installations don't have to deal with. To keep the load from swinging too much when the platform moves, anti-sway devices use pendulum dampers or active hydraulic adjustment. Some more advanced systems use motion-compensated winches that change the length of the cables automatically to keep the loads still in relation to the water's surface, even if the crane moves with the vessel.

All of a crane's functions can be precisely and steplessly controlled by electrohydraulic control systems. During critical placement, operators can make small changes that keep the load stable. Multiple tasks can be done at the same time, like lifting and slewing. This makes load lines smooth and reduces dynamic forces. These features are all part of TSC integrated control systems, along with load management and safety alarms. This gives workers tools that actively support stable operations.

Foundation and Anchoring Solutions

Without the right mounting, not even the most advanced crane can stay stable. Foundation planning for offshore sites must take into account the type of platform, the construction of the deck, and the loads from the environment. Pedestal bases spread the weight of the crane across several deck beams, which keeps any one area from becoming too stressed. Anchor bolts that are big enough to handle both vertical and horizontal forces keep the crane securely in place even when it's heavy or the weather is bad.

When building a jack-up platform, crane pedestals are often built right into the structure of the platform. To handle heavy loads, fixed platform coats may need to be strengthened around crane sites. For floating production vessels, the foundations need to be designed so that they can move and handle possible impact loads. If you do an installation study right, the mounting system will be a benefit to stability instead of a weak link in the lifting system.

Operational Best Practices to Maintain Stability Offshore

Hardware capabilities don't mean anything if they aren't operated and maintained correctly. Stability depends on both the tools and the people who are using them.

Operator Training and Certification

Offshore crane workers have to deal with problems that their land-based peers never have to. Comprehensive training programs cover things like how to compensate for platform motion, how to recognize weather limitations, and how to handle an emergency. Certification from well-known classification societies makes sure that operators know what their Fixed Boom Crane can and can't do. Recertifying workers on a regular basis keeps their skills up to date and brings them to new safety rules as they come out.

Operators can practice difficult situations without putting themselves at risk in the real world through simulation training. By doing them over and over, emergency stop steps become second nature. Knowing how load changes over time helps workers spot problems before they get too bad. Companies that put money into training operators have better safety records and equipment that lasts longer.

Weather Monitoring and Operating Limits

Every offshore crane has clear environmental operating limits that tell it when to stop working. These limits include wind speeds, wave heights, and visibility. Responsible operators keep an eye on the weather all the time and plan lifts based on what they think will happen. Making choices based on marginal weather creates more risk than just waiting for things to get better.

Real-time weather data from sensors on board helps people make decisions in an objective way. When it comes to weather-related go/no-go choices, pre-established operational matrices take away the need for biased opinion. Conservative limits take into account that equipment ratings show its maximum performance, not how well it works in normal conditions. Smart project planning takes weather into account when making schedules, so operators don't have to work in bad conditions.

Preventive Maintenance Programs

Corrosion, vibration, and steady motion in offshore settings speed up wear. Inspections that are planned ahead of time find problems before they become too unstable. Checks on hydraulic systems find worn-out seals and contaminated fluids that could lead to control issues in the future. Inspections of structures find rust or stress cracks that need to be fixed. Reviewing the electrical system keeps control problems from happening that could make the workplace unsafe.

By replacing parts based on their condition instead of failure, you can avoid unexpected downtime and keep the safety margins that were built in. Keeping detailed records of repair lets you look at trends and guess what you'll need in the future. Classification society surveys make sure that the condition of equipment is checked by someone other than the owner. TSC designs use modular construction with standard parts, which improves regular maintenance and lowers the number of extra parts that customers need to store overseas.

Comparing Fixed Boom Cranes With Other Offshore Crane Types

Before making a purchase decision, you need to know how different crane configurations deal with problems with stability offshore. Each design theory includes making trade-offs between what the product can do and what it can't do.

Fixed Boom Versus Mobile Cranes

Mobile cranes can be moved easily around big platforms or ship decks. This portability comes with a price: tracks or wheels add more places where things could go wrong and make the link between platforms less strong. Outriggers help a little, but they take up space on the deck and take time to set up. Because the mounting is built into the platform structure instead of being a temporary link, fixed placements are more stable.

Reliability is usually more important than moving freedom in offshore applications. Fixed Boom Cranes rarely need to be moved after they are set up, so the benefits of stability in a stable arrangement are clear. Crane mobility projects generally have specific stages of building rather than ongoing activities where stability is very important.

Fixed Boom Versus Articulated Systems

Knuckle boom cranes can reach into tight spaces because they are designed to fold up. Having many articulation points can make things more complicated, which can make it harder to stay stable during big pulls. When hydraulic cylinders control movement, they add failure modes that aren't present in fixed boom systems. When the geometry changes, it gets harder to figure out the load moment, so complex control systems are needed.

Fixed booms are reliable because they are simple. Less upkeep and a lower chance of failure are brought about by fewer working parts. Load paths that can be predicted make engineering research and teaching operators easier. When projects need to be as stable as possible in difficult conditions, they always choose Fixed Boom Crane designs, even although they are less flexible in small spaces.

Power System Considerations

Diesel-hydraulic systems produce more pollution and are harder to control precisely than electric-hydraulic systems. When offshore sites have stable electrical infrastructure, they use less fuel and have less of an effect on the environment. Diesel systems can work without power from the platform, which is helpful in an emergency or on ships that can't handle a lot of electricity.

Hybrid systems use both electric prime movers and hydraulic actuation to get the best of both worlds: efficiency and the precise control that hydraulic systems offer. Power systems should be bought based on the infrastructure that is accessible and the goals of the business. TSC provides combined power pack solutions that are made to fit the needs of each vessel and platform while also being compatible with systems that are already in place.

Procurement Considerations for Offshore Fixed Boom Cranes

To choose equipment that really meets the needs for safety abroad, you need to look beyond the specs and understand its full capabilities and long-term worth.

Evaluating Technical Specifications

Technical specifications should match required load capacity, boom length, moment loading, and project design life with sufficient safety margins. Class certifications from DNV, ABS, BV, LR, or CCS confirm recognized standards. Because offshore applications vary, customizable designs help manufacturers like TSC tailor Fixed Boom Cranes to specific operational requirements.

Understanding Installation Requirements

Offshore crane installation involves complex logistics, specialized vessels, onsite commissioning teams, and limited weather windows, all of which affect project costs and schedules. Realistic planning must account for these constraints. Modular, easily disassembled designs improve installation flexibility and support future relocation or reuse across different offshore vessels.

Supplier Selection Criteria

Supplier reliability depends heavily on offshore experience and proven installations. CM Energy’s 350+ deck cranes across more than 180 self-elevating platforms demonstrate large-scale capability and practical expertise. Strong after-sales support, including rapid technical assistance, spare parts, remote troubleshooting, and global service networks, is equally important for minimizing offshore downtime.

Cost Analysis Beyond Purchase Price

Total cost of ownership includes purchase, installation, training, maintenance, decommissioning, energy use, and repair expenses. Energy-efficient, reliable equipment can reduce long-term operating costs, while longer service life spreads capital costs over more years. Comparing lifecycle costs rather than initial prices helps avoid higher maintenance, replacement, and operational risks.

Conclusion

Integrated engineering that looks at structural soundness, load management, dynamic compensation, and safe base attachment is what makes an offshore crane stable. Stability in operations depends on thorough training for operators, strict weather rules, and regular preventative maintenance. When making a purchase decision, the whole system's capabilities must be looked at, such as the experience of the manufacturer, the ability to customize, and the infrastructure for lifecycle support. In offshore applications, where dependability directly affects safety and project costs, Fixed Boom Cranes offer proven stability benefits. When procurement workers understand these basic principles of stability, they can make choices that protect both people and investments in harsh marine settings.

FAQ

1.How do fixed boom cranes counteract vessel motion during offshore lifts?

These systems use a number of methods that work together. Structural stiffness keeps the boom from bending too much when dynamic loads are applied. Active heave compensation changes the length of the cable automatically to keep the load in the same place in relation to the water's surface even if the vessel moves. Anti-sway dampers lessen the effects of platform movement on the pendulum. Forces are constantly being watched by load control systems, which stop activities when motion goes beyond safe limits. When used together, these technologies make it possible for Fixed Boom Cranes to lift things safely, even in mild sea conditions that would stop less advanced tools.

2.What maintenance challenges are unique to offshore crane installations?

Compared to equipment used on land, saltwater corrosion speeds up the breakdown of parts. Corrosion must be found through regular checks before it weakens the structure. Limited access to offshore areas makes planning maintenance and getting spare parts more difficult. Because of the weather, there aren't many windows of opportunity for outside repair work. It's more important than ever to do preventative maintenance because reactive repairs cost a lot because they require sending technicians and parts to faraway places. Comprehensive maintenance programs plan for these problems by replacing parts based on their condition and strategically placing spare parts.

3.Can offshore cranes be customized for specific operational requirements?

Of course. Manufacturers with a good reputation, like CM Energy, make equipment that fits the needs of each vessel's structure, operation, and surroundings. Customization is possible with the boom's length, load capacity, control system level of detail, and power integration. Specifications for designs are affected by what the classification society wants for certain flag states or operating zones. Mounting arrangements can be changed to fit existing platform structures. This gives you the freedom to make sure that the equipment really fits your needs instead of causing you to settle for standard setups that don't quite work.

Partner With CM Energy for Reliable Offshore Lifting Solutions

With decades of experience in the marine industry and tried-and-true crane technology, CM Energy is ready to help you with your offshore projects. Our TSC name makes stable lifting equipment that is used on oil and gas platforms, in wind farms, for aquaculture, and on engineering service boats all over the world. We know how important it is for offshore operations to be completely reliable because we have over 350 deck cranes in use around the world and tools on more than 180 self-elevating platforms. No matter if you need an 8-ton aquaculture vessel crane or a 50-ton offshore platform system, our engineering team can make a solution that fits your needs. Our high standards for quality are backed up by certificates from DNV, ABS, BV, LR, and CCS. Contact our team at info.cn@cm-energy.com to talk about your Fixed Boom Crane needs with experienced marine equipment specialists. They can help you find the best lifting solution for your budget and working conditions.
