Power Package Equipment – PMS & Switchboard
The system is suitable for ship/marine engineering projects, and a typical electrical package includes Power Package Equipment – PMS & Switchboard:
1. Gen Control System
2. Power Management System
3. Power Distribution System (Switchboard, Power Distribution Box, Shore Power Panel, Starter, battery charging and discharging boards, Power Transformer etc.)
Why Choose Us?
1. With over 20 years of experience in the marine engineering, covering design, production, and commissioning services.
2. Total integrated solutions.
3. The product has obtained certifications from multiple classification societies including ABS, CCS, DNV, BV, etc.
Product Parameters
1. The gen control system uses a digital control scheme, which is suitable for various types and generators. The system includes multiple functional modules such as engine speed control, generator excitation control, manual and automatic start/stop, sync control, load share, electrical parameter monitoring, protection and display, and is the foundation of the ship's power management system, including Power Package Equipment – PMS & Switchboard.

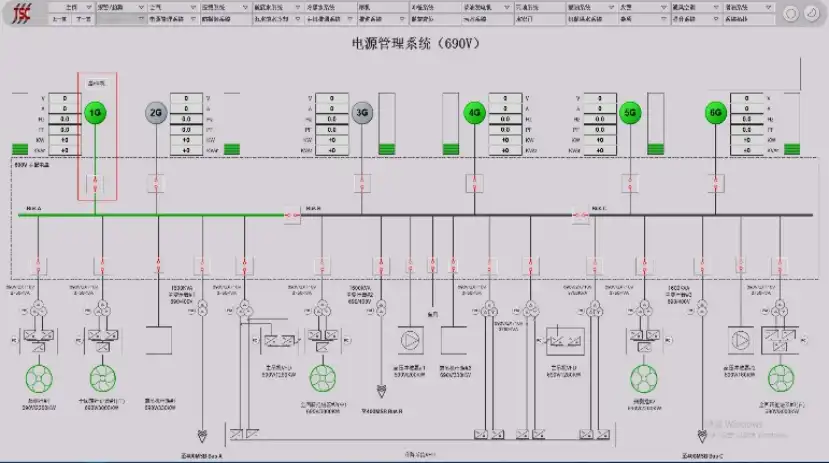

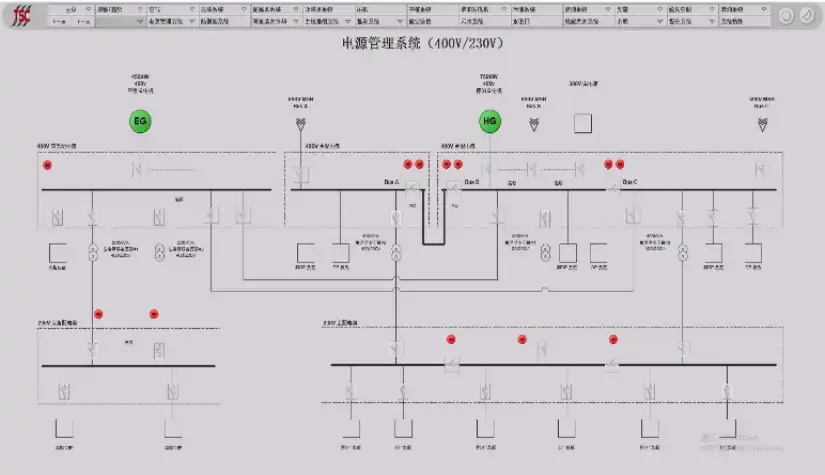

2. The power management system (PMS) is based on the digital gen control system, applying PLC, industrial network, and human-machine interface technology to optimize the control of ship power station, and to control & monitor the power distribution system.

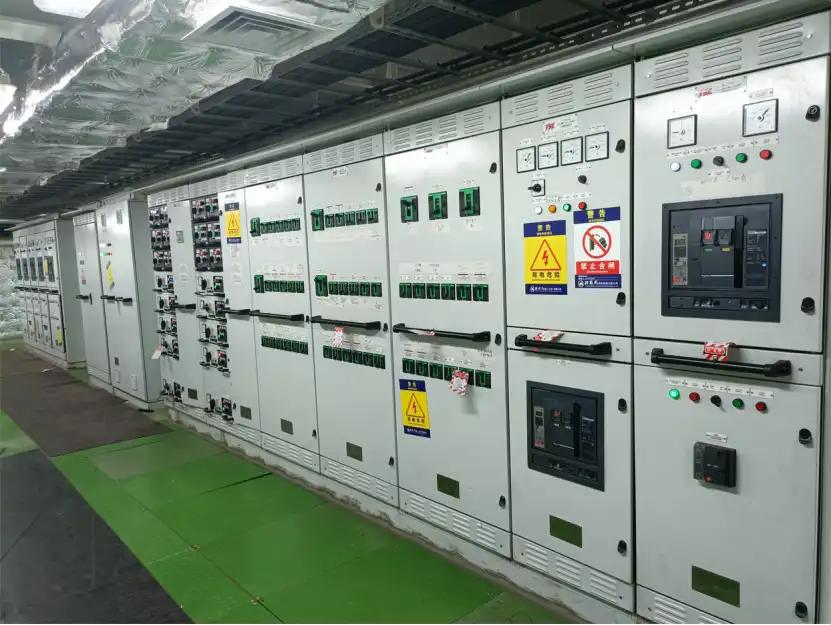

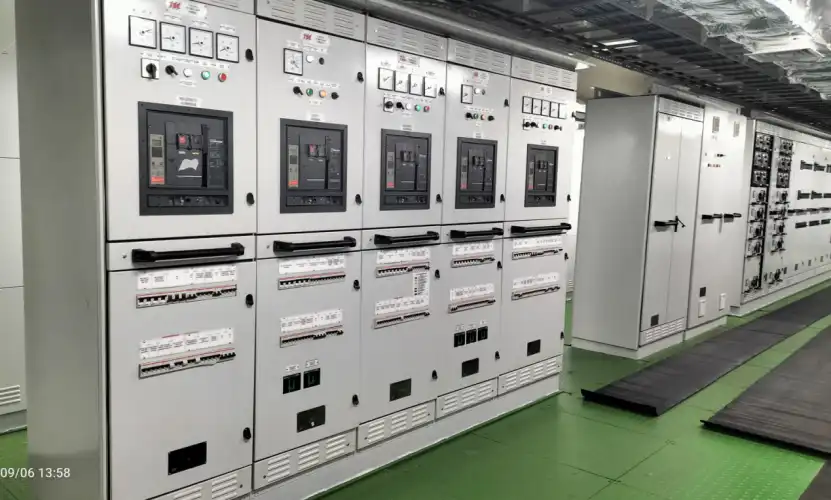

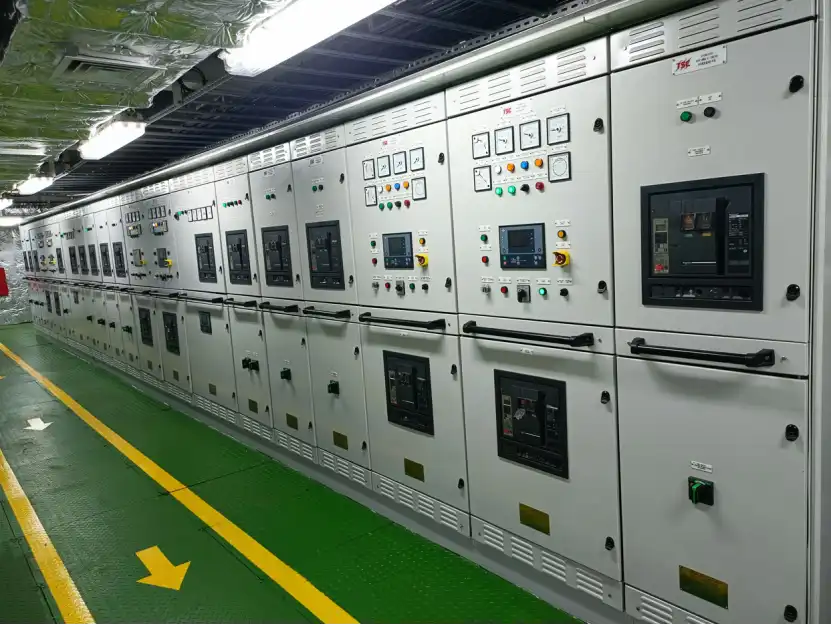

3. The power distribution system includes Switchboard, Power Distribution Box, Shore Power Panel, Starter, battery charging & discharging boards, Power Transformer etc. Design according to system requirements.
Product Details
1. Gen Control System Functions:
(1) Local/Remote start & stop the generator.
(2) Local/Remote sync control, gen online/offline.
(3) Gen voltage & frequency adjust.
(4) Gen soft loading and unloading.
(5) Automatic active and reactive power balancing.
(6) Gen over/under voltage, over/under frequency, overload, reverse power and differential protection etc.
2. Power Management System Functions:
(1) Engine parameter monitoring: air exhaust temperature, cylinder liner water temperature etc.
(2) Generator parameter monitoring: bearing &winding temperature etc.
(3) Electric parameter display: gen state, voltage, frequency, power etc.
(4) Generator start order setting.
(5) Load depending.
(6) Heavy load request control.
(7) Power limit control.
3. Power Distribution System
Design according to the electrical system structure, equipment layout and other conditions.
Quality Control
1. The complete quality, environment and health management system.
2. Classification Society Certification
Installation
1. On-site installation guidance
2. System commissioning, inspection
3. Functional testing
For more product information about Power Package Equipment – PMS & Switchboard, please leave a message below.
