Offshore Platform Jacking Control System

TSC Offshore Platform Jacking Control System products have been widely used in offshore self elevating drilling platforms, wind power installation platforms, liftboat, etc. The full series of jacking control systems are as follows:

Why Choose Us?

1. With over 20 years of experience in the marine engineering, covering design, production, and commissioning services.

2. We offer a comprehensive range of products, including VFD drive and hydraulic drive jacking systems.

3. Customized design scheme, complete driving and control functions, including multiple humanized designs such as operation diagnostic system, etc.

4. The product has obtained certifications from multiple classification societies including ABS, CCS, DNV, BV, etc.

5. We have over 36 sets of jacking control system applications worldwide.

Product Parameters

Typical System Configuration:

• VFD/Hydraulic power unit(HPU)

• Jacking MCC

• PLC system

• Leg height measurement device/RPD system

• Central Control Console

• Local Control Console

• Electronic inclinometer

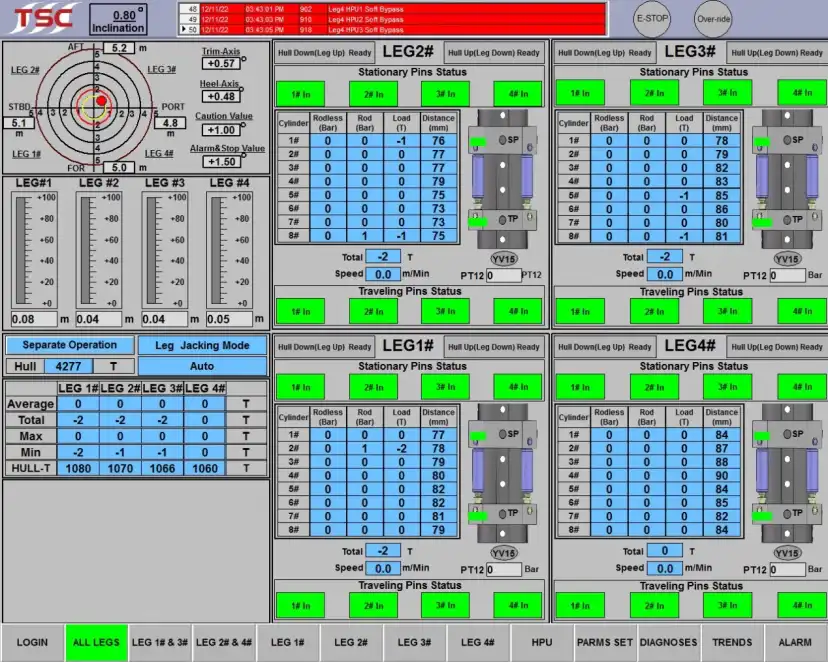

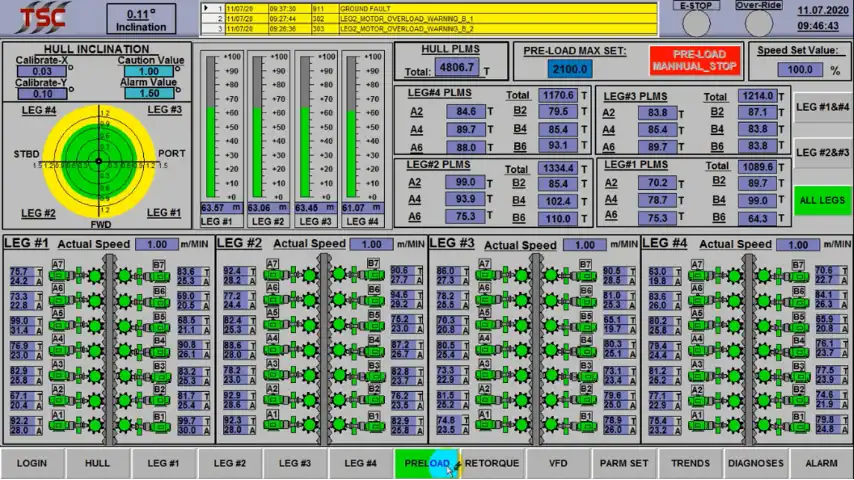

Jacking control system used touchscreen for HMI, suitable for monitoring and jacking operation, the typical functions are as follows:

• Leg height and jacking status display

• Jacking unit motors & brake status display

• Hull inclination status display, inclination alarm/stop value setting

• Load-Leg's total, average, Maximum, Minimum

• Leg's height calibration, setting alarm value for the up/down

• Leg's speed setting

• Motor load monitoring

• Re-torque control

• Pins status(Hydraulic jacking system)

• Valves status(Hydraulic jacking system)

• Jacking control system bypass control

• Jacking control system parameter setting

• System trend record, archive

• System network diagnose

• System operation diagnose

Product Details

1. ​​​​​​​The Offshore Platform Jacking Control System is a highly secure and reliable system, there are hundreds of safety interlocks related to the coordination between platform status and control systems, braking and driving system, and nearly a thousand alarm protections.

2. The jacking and driving systems have passed FMEA analysis & test, and have been certified by the classification society.

3. In addition to basic functions, the jacking system has multiple safety monitoring and protection functions, such as leg RPD monitoring, platform anti-fail protection, etc.

4. The bypass operation functions with permission protection, such as selectively bypassing a single faulty jacking unit.

Quality Control​​​​​​​

1. The complete quality, environment and health management system.

2. Classification Society Certification-ABS, CCS, DNV, BV, etc.

Installation​​​​​​​

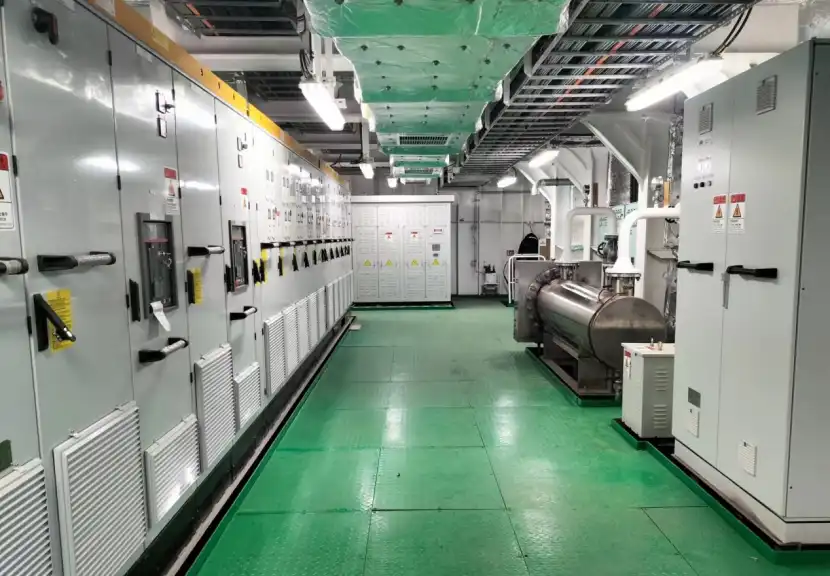

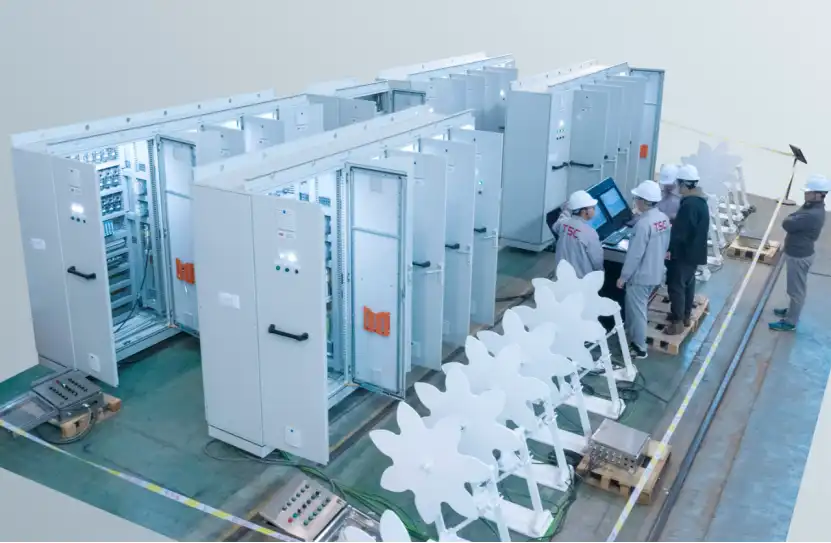

1. On-site installation guidance

2. System commissioning, inspection

3. Jacking trial

For more product information about Offshore Platform Jacking Control System, please leave a message below.
