The Offshore Drilling Control System is a comprehensive control system. The package mainly includes the following subsystems or equipment:
Offshore Drilling Control System
The TSC Offshore Drilling Control System is a comprehensive control system. Its package mainly covers the Driller's Cabin and Instrument Room, Intelligent Drilling Control and Diagnosis System, etc., totaling 8 subsystems or equipment.
Product Description
1. Driller's Cabin and Instrument Room
2. Intelligent Drilling Control and Diagnosis System
3. Electronic Drilling System
4. Intelligent Drilling Instrument System
5. Talkback System
6. CCTV System
7. Zone Management System
8. Automated Drill Pipe Handling Control System
Why Choose Us?
1. With over 20 years of working experience in the offshore drilling engineering industry, covering design, production and commissioning services.
2. We offer a comprehensive range of products, and provide customers with total solutions.
3. We have over 9 sets of offshore drilling control system applications worldwide.
Product Parameters
1. Driller's Cabin and Instrument Room
The integrated digital driller's cabin is equipped with an electronic driller's chair, which can control and monitor the drawworks, mud pumps, rotary table, top drive, iron roughneck, catwalk, tubular & riser handling equipment, BOP, manifold and other equipment. It meets the technical requirements of drilling technology in different working conditions, such as drilling, tripping and pipe arranging, and provides highly centralized control operation and monitoring for the driller.

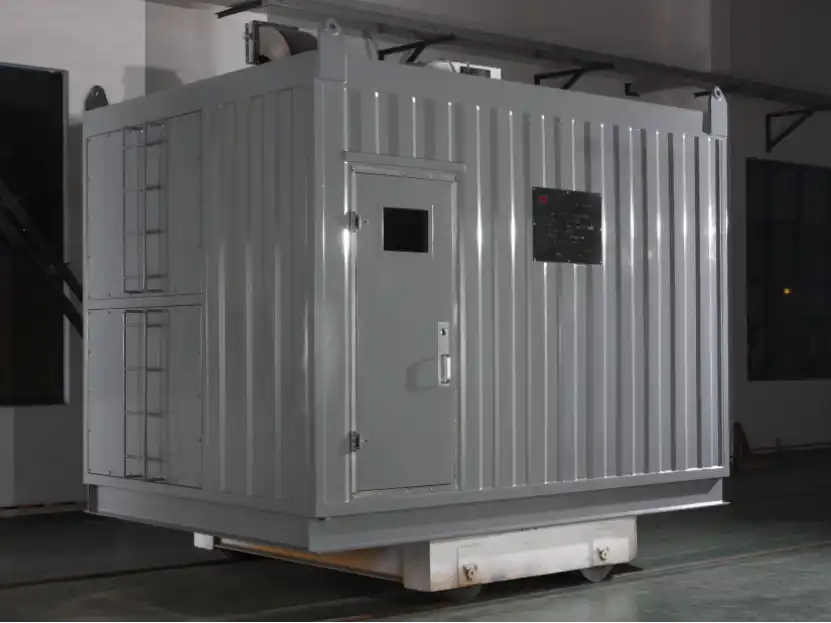

The local instrument/electrical room is the customized skid-mounted electric control room, which is used to integrate driving/control cabinets of rig floor equipment related to the drilling control system.
2. Intelligent Drilling Control and Diagnosis System
After years of application and optimization, we combine drilling control with VFD application, use industrial network, take IPC and PLC controller as the control core, and develop a set of stable, reliable and easy to maintain drilling control system through script and code programming. This system includes logic control, data processing, safety protection, parameter setting, state monitoring, data recording, alarms, trends and fault diagnosis of all drilling equipment. It has the characteristics of easy maintenance and high reliability.
3. Electronic Drilling Operation Station
The electronic driller operation station is the operation center of the drilling control system and automated piping equipment, integrating the control and monitoring of drawworks, mud pumps, rotary table, top drive, iron roughneck, catwalk machines, and other equipment, meeting the requirements of different working conditions and processes, and achieving centralized operation and monitoring of drilling related equipment.
4. Intelligent Drilling Instrument System
The intelligent drilling instrument system is based on sensors, PLC controllers, and field bus. The system is equipped with multiple sensors to collect drilling site signals, and real-time monitoring of parameters such as speed, temperature, level, and flow in equipment/systems such as drilling drawworks, mud pumps, mud storage, and mud circulation, the system will generate multiple derived calculation parameters for construction personnel, and all instrument data will be integrated into the drilling system within the HMI interface, featuring integrated display and efficient operation.
5. Talkback System
Intercom communication between main operating areas, such as driller's cabin, drilling floor, racking board, BOP area, mud pump room, etc.
6. CCTV System
Customized design of camera type and location.
7. Zone Management System

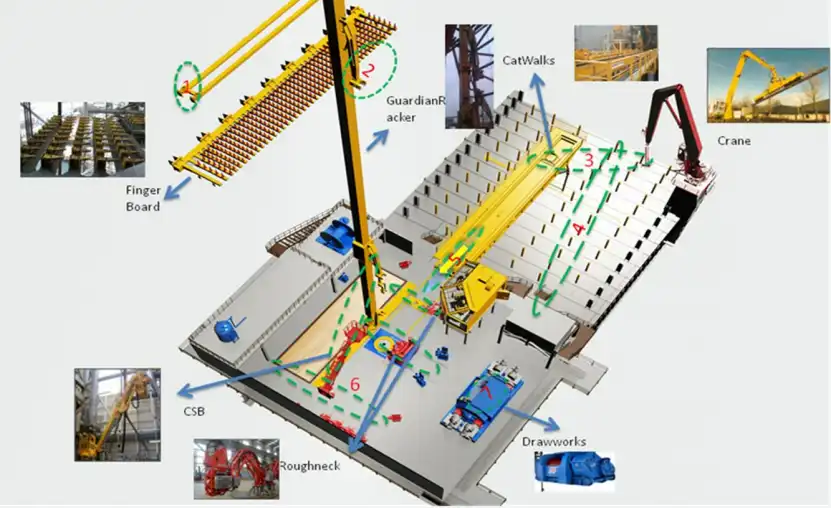

In the drilling system, each equipment operates on a certain path and trajectory. If it enters the same area at the same time, there is a risk of collision, resulting in equipment shutdown or damage, and even causing casualties. The drilling zone management system can effectively prevent the occurrence of such problems. The system will automatically identify potential collision points between various equipment within the drilling floor space, and reduce and avoid safety hazards through methods such as alarm, deceleration, or stop.
The main equipment in the drilling floor area includes: top drive, drawworks, iron roughneck, vertical pipe racking machine, pipe transfer crane, HTV, casing stabbing arm, mouse hole, etc.
8. Automated Drill Pipe Handling Control System
Automatic or semi-automatic control of piping related equipment to achieve efficient piping operations. The equipment includes catwalks, column racker, finger board, iron roughneck, power slips, power mouse holes, hydraulic cat heads, etc.
Product Details
1. Integrated design, integrating multiple device controls, and reserving installation/control interfaces for third-party devices, such as BOP operation panels, PAGA panels, VMS panels, etc.
2. The structural design meets the requirements of integrated control of machinery, electricity, hydraulic and air, and also meets the special requirements of explosion-proof, anti-corrosion, moisture-proof, sound insulation and fire prevention in offshore drilling. Customized according to user requirements, such as double driller’s chair.

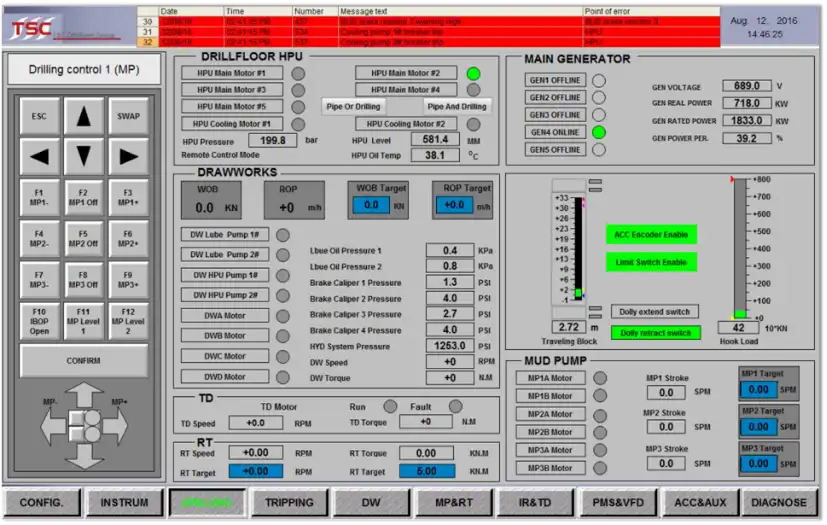

3. A specialized diagnostic system is designed within the drilling control system, through the analysis of control logic & control status, the system can be used to monitor the state of each control point of device in real time, and display on HMI. The diagnostic system can detect operating conditions and the cause of equipment failures, and provide alarm prompts, including system network node diagnosis.
Quality Control
1. The complete quality, environment and health management system.
2. Classification Society Certification-ABS
Installation
1. On-site installation
2. System commissioning, inspection
3. Trial operation
4. Maintenance services
For more product information about Offshore Drilling Control System, please leave a message below.
