Marine Hybrid Power System

We can provide a complete integrated packaging solution for marine hybrid power systems, including related products:

1. Generator set control system and distribution board.

2. Power Management System (PMS).

3. Isolation transformers and frequency conversion devices (corresponding to shaft generators, energy storage batteries, bow thrusters, etc.).

4. Shaft generator system: including shaft generator control systems, shaft-driven generators, etc.

5. Energy storage system: including Energy Management System (EMS), energy storage battery packs (including Battery Management System (BMS)), with capacities configurable according to customer requirements.

6. Bow thruster drive system: including drive motors, remote control devices, etc.

The typical SLD show as below:

Why Choose Us?

1. With over 20 years of experience in the marine engineering, covering design, production, and commissioning services.

2. Customized design scheme, complete driving and control functions.

3. The product has obtained certifications from multiple classification societies.

Product Parameters

The configuration and function of main subsystem:

1. Energy storing system: battery, DC/DC inverter, DC-AC equipment, isolation transformer, the capacity is configured to the demand, the system have the following features of Marine Hybrid Power System:

(1) Capable of achieving functions such as charging, peak shaving, and valley filling, and sync with generators.

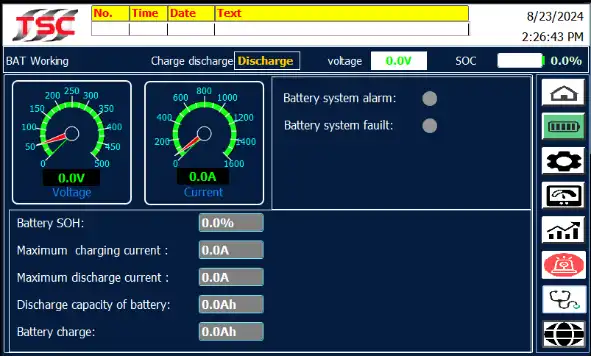

(2) Equipped with BMS system, real-time monitoring of battery system voltage, capacity, discharge current and other parameters, and communication with PMS.

(3) Operate in parallel with the shaft generator system and diesel generator system.

(4) Generate power as isolated grid to maintain the basic power supply of the ship, or charge with shore power system.

2. Shaft generator system: shaft generator inverter (AC-DC), AC feedback inverter (DC-AC) and isolation transforms, the shaft generator system have the following features:

(1) PTI and PTO work modes;

(2) Operate in parallel with the generator.

(3) Islanding operation.

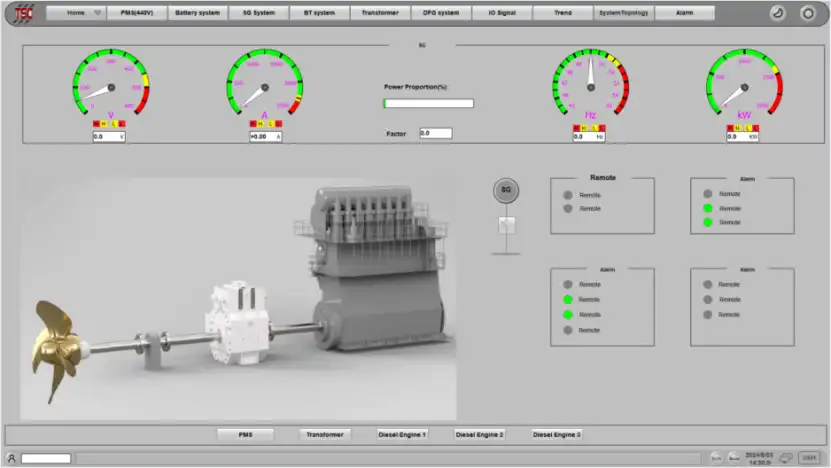

3. The power management system use hard wire connection and communication with generator control system, shaft generator system, energy storage system, bow thruster drive system, for the energy management and scheduling function.

Quality Control​​​​​​​

1. The complete quality, environment and health management system.

2. Classification Society Certification.

Installation

1. On-site installation guidance

2. System commissioning, inspection

3. Functional testing

For more product information about Marine Hybrid Power System, please leave a message below.
