Integrated Automation System (IAS)

The Integrated Automation System (IAS) is a comprehensive alarm monitoring and management system developed based on the communication and PLC distributed control. The system contains: E/R monitoring and alarm system, PMS, valve remote control and level gauging system, extended alarm system, personnel safety system, wheelhouse / engine room control console, etc.

​​​​​​​

Why Choose Us?​​​​​​​

1. With over 20 years of experience in the marine engineering, covering design, production, and commissioning services.

2. Customized design scheme, complete control functions, including multiple humanized designs.

3. The product has obtained certifications from multiple classification societies including ABS, CCS, BV, etc.

Product Parameters

Typical System Configuration (wind power installation platform)

1. Redundancy PLC and MRP network

2.​​​​​​​ IPC connects to A/B dual network within the Integrated Automation System (IAS). Single network failure does not effect the continued operation.

3. 6 Extend alarm panel

4. 1 Personnel Safety System

5. Communication with the valve remote control system, the HMI integrates valve remote operation and status display;

6. Typical I/O configuration: about 2000 hardware points, 5000 software points;

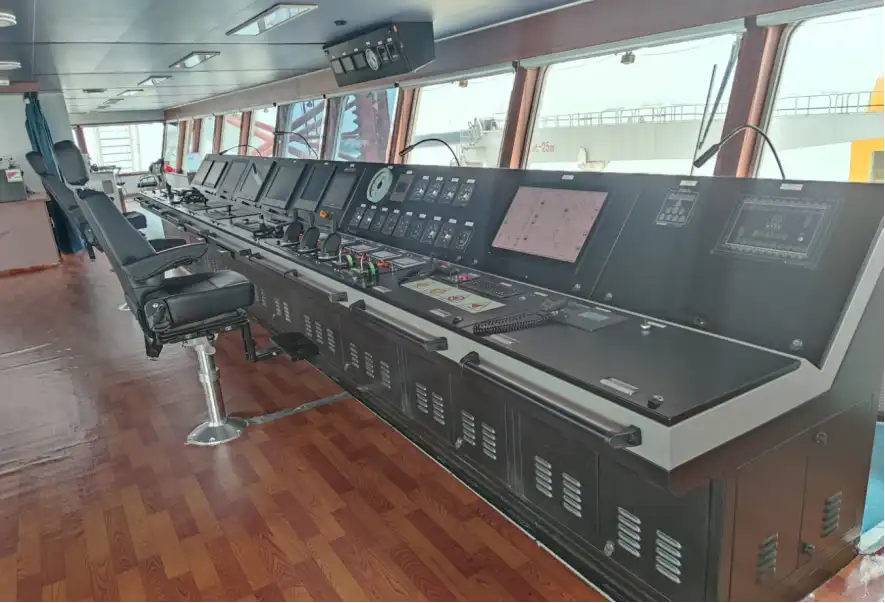

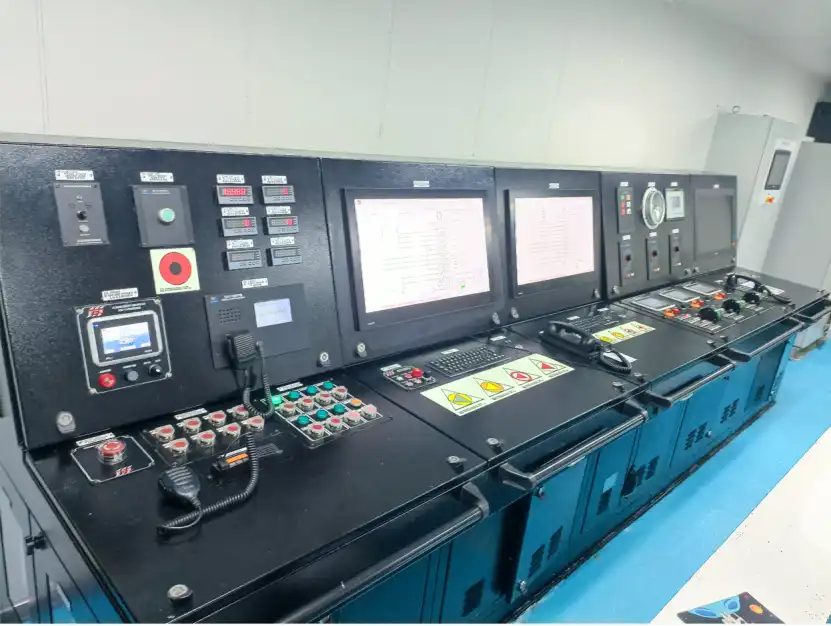

7. Wheelhouse/engine room control console

Product Details

1. The IAS will provide a computer-based, distributed integrated alarm, monitoring and control system for all important equipment on board. Through the rights management system, the monitoring software will display the information of the current personnel on duty and the operation authority and record the operation log for reference.

2. Provide multiple functional interfaces for various systems of the ship.

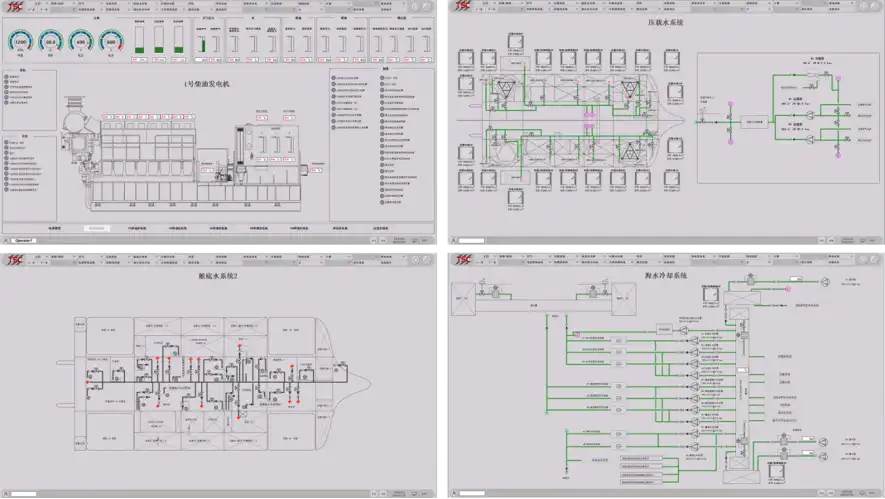

3. Besides the general function of monitoring & alarm, there are kinds of simulation drawing set in the HMI monitor, including of the status of running (oil, water, and other system) which indicated by graphics.

Quality Control

1. The complete quality, environment and health management system.

2. Classification Society Certification-ABS, CCS, DNV, BV, etc.

Installation

1. On-site installation guidance

2. System commissioning, inspection

3. Functional testing

For more product information about Integrated Automation System (IAS), please leave a message below.
