Marine Clean Power Equipment

LNG Fuel Gas Supply System

The self-developed and manufactured low-pressure LNG fuel supply system by TSC has been in operation on actual vessels for one year and is currently functioning normally. TSC can package C-type tank products to meet customer demands, placing the LNG system's equipment piping within the tank's cold box TCS, resulting in a space-saving, safe, and reliable solution. Moreover, in response to market needs, TSC has also collaborated with MAN to design and sell high-pressure FGSS systems.
Product Description

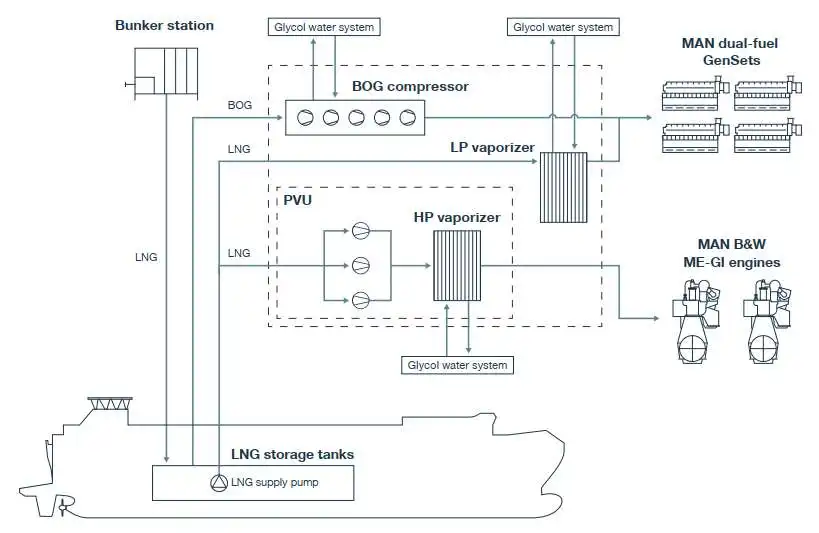

HP FGSS is tailored specifically for MAN GI engines, utilizing PVU technology to enhance LNG pressure beyond 300 bar. This results in methane emissions that are approximately 90% lower than those from MAN GA engines. The LP FGSS variant is designed for Otto-cycle gas engines and operates at pressures below 16 bar. To efficiently manage gas, the LNG Fuel Gas Supply System can integrate both a gas combustion unit (GCU) and a gas boiler to effectively address boil-off gas (BOG).

product-819-533

Why Choose Us?

1. Pioneering Industry Expertise – Our deep knowledge in dual-fuel vessels, LNG carriers, and chemical tankers allows us to deliver outstanding engineering solutions.

2. Wide Range of System Offerings – Our portfolio features fuel systems for Methanol (MFSS), LNG (FGSS), Ammonia (AFSS), and LPG cargo handling (CHS) solutions.

3. Excellence in Innovative Engineering – Our field-tested LNG Fuel Gas Supply Systems showcase year-round operational reliability, enhanced by customized Tank Cooling System (TCS) equipment optimized for safety and space efficiency.

4. Collaborative Technological Partnerships – By teaming up with Norway's design leader WTC, we provide advanced, tailored solutions for clients.

5. *Comprehensive Lifetime Support Services – We ensure complete support starting from conceptual design through installation, including execution of multi-unit projects and dedicated aftermarket assistance.

Product Specifications

​​​​​​​product-532-468

Overview of Products

1. Efficient MAN-GI Solution – Utilizing PVU-driven pressurization that exceeds 300 bar, we achieve a reduction in methane slip to only 10% of GA engine levels, aligning performance with environmental regulations.

2. Optimized Design for Otto-Cycle – The compact LNG infrastructure within TCS guarantees safe operations under pressures below 16 bar for gas-fired engines.

3. Gas Recovery Systems Integration – Incorporating GCU and boiler enables full utilization of BOG, significantly reducing energy losses.

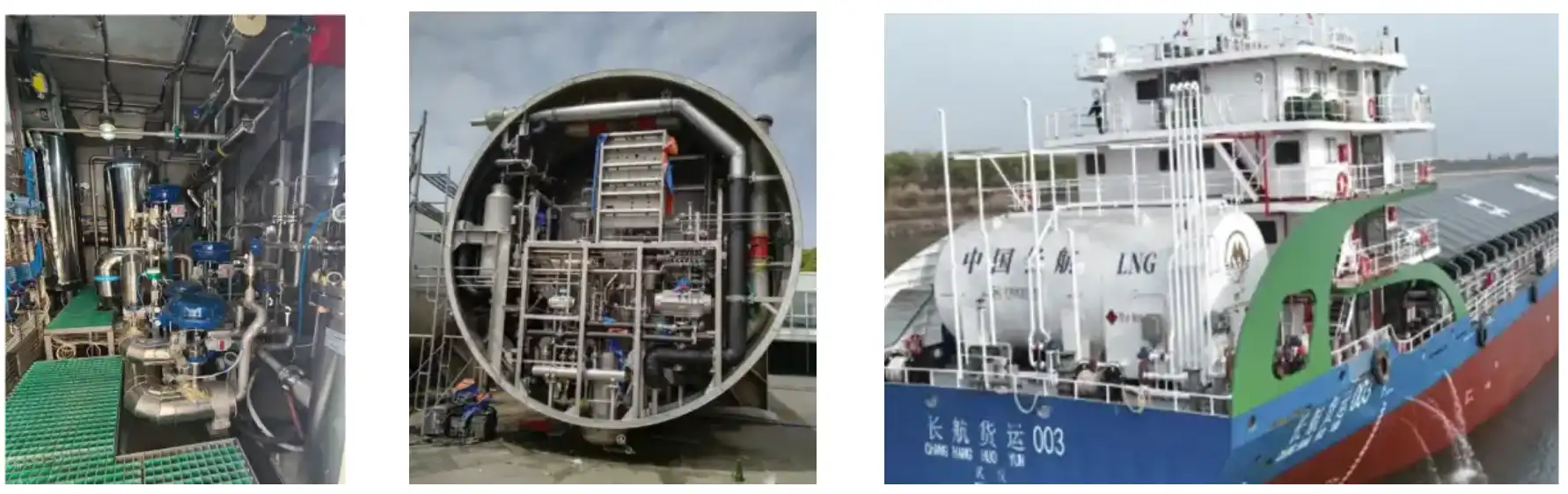

4. Demonstrated Performance – LP systems show uninterrupted vessel operation lasting over 12 months.

5. Modular Pre-Engineered Solutions – Tanks integrated with TCS and pre-assembled components offer secure, space-efficient turnkey options.

6. Seamless Implementation Process – Comprehensive assistance is provided from system design to operational handover, complemented by ongoing technical support.

product-1782-561

Quality Assurance

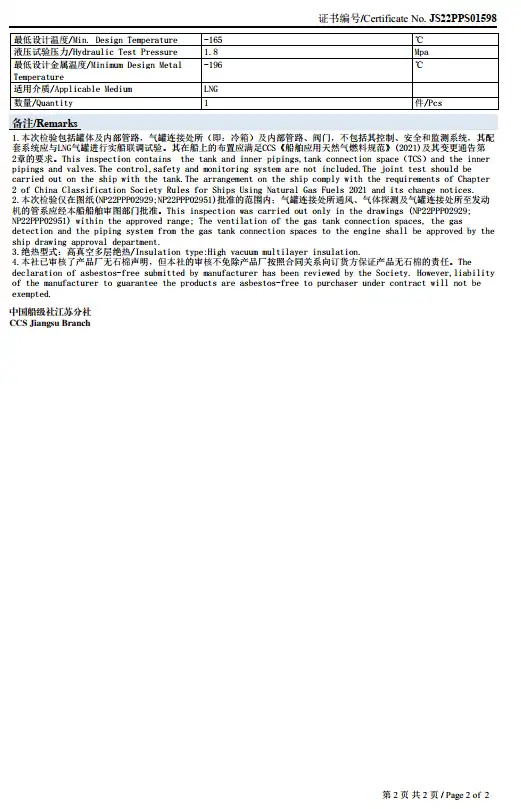

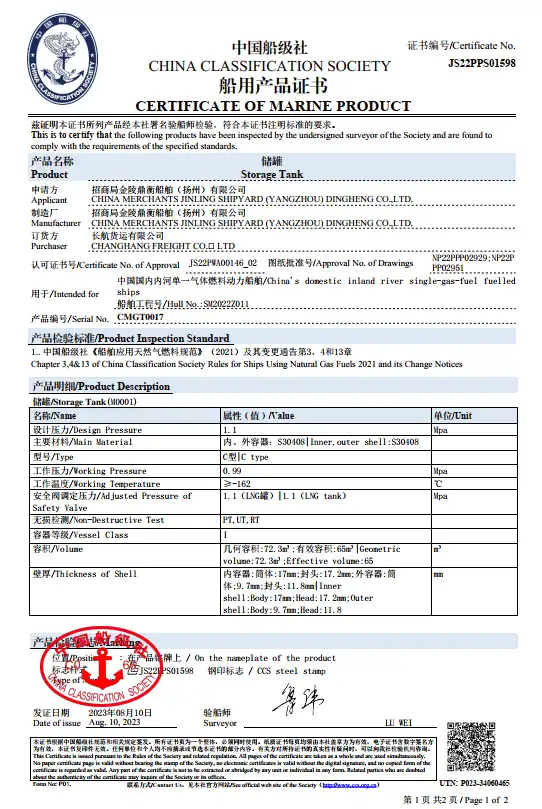

We possess certifications compliant with CCS standards for 72.3m³ stainless steel double-layer LNG containment systems.

product-542-809product-521-809

Installation Procedure

1. Prior to installation, meticulously review the vessel's design documents to verify all system interface requirements through technical verification.

2. Assemble all necessary tools and safety gear, ensuring proper safety protocols are in place before commencing work.

3. Employ appropriate lifting equipment to carefully position the pre-assembled fuel supply module in the designated installation location for precise placement.

4. Firmly anchor the module to its base, prioritizing stability and adherence to the vessel’s structural and design specifications.

5. Install all connections—including transfer pipelines, auxiliary piping networks, and control cabling—and check each connection for leak-tightness and electrical integrity.

6. Conduct system verification through testing individual components as well as comprehensive integration tests to ensure performance across all operational dimensions, including bunkering processes, supply functions, and safety control systems.

For more product information about LNG Fuel Gas Supply System, please leave a message below.
